ABB NF Contactor Relays Parts
Compare ABB NF Contactor Relays
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (ABB product ID) | Type | Number of Auxiliary Contacts NO | Number of Auxiliary Contacts NC | Terminal Type |
|---|---|---|---|---|---|

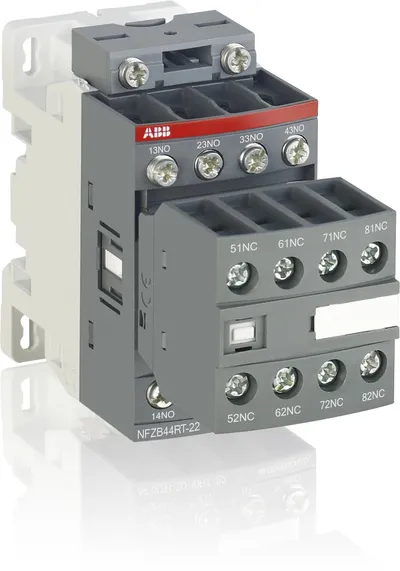

| 1SBH136060R2180 | 1SBH136060R2180 | NFZB80ERT-21 | 8 | 0 | Ring-Tongue Terminals |
| 1SBH136060R2280 | 1SBH136060R2280 | NFZB80ERT-22 | 8 | 0 | Ring-Tongue Terminals |

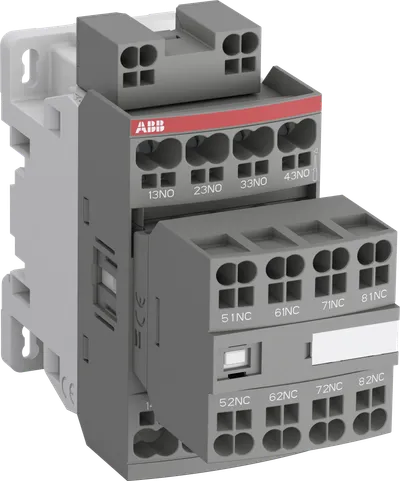

| 1SBH136063R2380 | 1SBH136063R2380 | NFZB80EK-23 | 8 | 0 | Push-in Spring Terminals |
| 1SBH136063R2180 | 1SBH136063R2180 | NFZB80EK-21 | 8 | 0 | Push-in Spring Terminals |
| 1SBH136063R2280 | 1SBH136063R2280 | NFZB80EK-22 | 8 | 0 | Push-in Spring Terminals |
| 1SBH136060R2380 | 1SBH136060R2380 | NFZB80ERT-23 | 8 | 0 | Ring-Tongue Terminals |

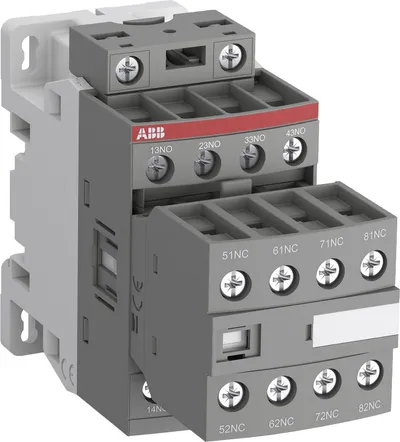

| 1SBH136061R2280 | 1SBH136061R2280 | NFZB80E-22 | 8 | 0 | Screw Terminals |
| 1SBH136061R2380 | 1SBH136061R2380 | NFZB80E-23 | 8 | 0 | Screw Terminals |
| 1SBH136060R2362 | 1SBH136060R2362 | NFZB62ERT-23 | 6 | 2 | Ring-Tongue Terminals |
| 1SBH136061R2180 | 1SBH136061R2180 | NFZB80E-21 | 8 | 0 | Screw Terminals |
| 1SBH136060R2262 | 1SBH136060R2262 | NFZB62ERT-22 | 6 | 2 | Ring-Tongue Terminals |
| 1SBH136063R2162 | 1SBH136063R2162 | NFZB62EK-21 | 6 | 2 | Push-in Spring Terminals |
| 1SBH136063R2362 | 1SBH136063R2362 | NFZB62EK-23 | 6 | 2 | Push-in Spring Terminals |
| 1SBH136061R2362 | 1SBH136061R2362 | NFZB62E-23 | 6 | 2 | Screw Terminals |
| 1SBH136061R2162 | 1SBH136061R2162 | NFZB62E-21 | 6 | 2 | Screw Terminals |
| 1SBH136060R2162 | 1SBH136060R2162 | NFZB62ERT-21 | 6 | 2 | Ring-Tongue Terminals |
| 1SBH136063R2262 | 1SBH136063R2262 | NFZB62EK-22 | 6 | 2 | Push-in Spring Terminals |
| 1SBH136060R2344 | 1SBH136060R2344 | NFZB44ERT-23 | 4 | 4 | Ring-Tongue Terminals |
| 1SBH136061R2262 | 1SBH136061R2262 | NFZB62E-22 | 6 | 2 | Screw Terminals |
| 1SBH136063R2344 | 1SBH136063R2344 | NFZB44EK-23 | 4 | 4 | Push-in Spring Terminals |
| 1SBH136061R2244 | 1SBH136061R2244 | NFZB44E-22 | 4 | 4 | Screw Terminals |
| 1SBH136060R2144 | 1SBH136060R2144 | NFZB44ERT-21 | 4 | 4 | Ring-Tongue Terminals |

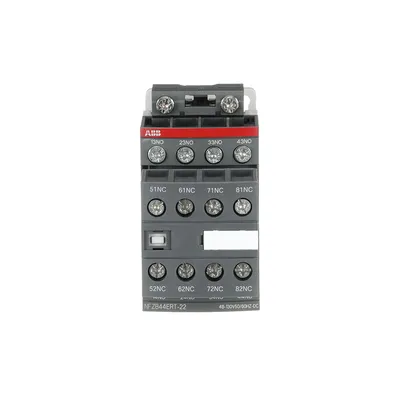

| 1SBH136060R2244 | 1SBH136060R2244 | NFZB44ERT-22 | 4 | 4 | Ring-Tongue Terminals |
| 1SBH136061R2344 | 1SBH136061R2344 | NFZB44E-23 | 4 | 4 | Screw Terminals |
Common to all listed parts
| Lifecycle | Active (current ABB product) |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Product Net Width | 45 mm |
| Number of Poles | 8P |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-15 (I<sub>e</sub>) | (500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (400 / 440 V) 3 A |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | for 0.1 s 140 A, for 1 s 100 A |
