ABB

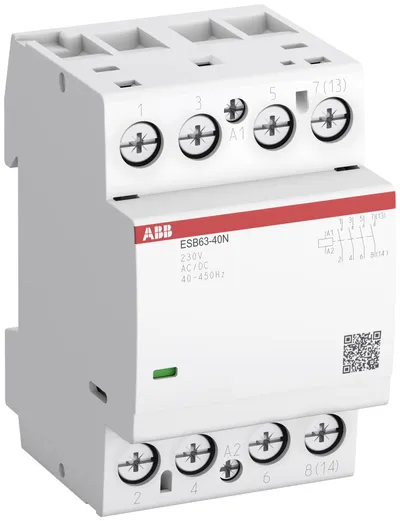

1SAE351111R1440ESB63-40N-14 Installation Contactor (NO) 63 A - 4 NO - 0 NC - 12 V - Control Circuit 400 Hz
ABB Installation Contactors Parts
ABB
1SAE351111R0840ESB63-40N-08 Installation Contactor (NO) 63 A - 4 NO - 0 NC - 415 V - Control Circuit 400 Hz
ABB

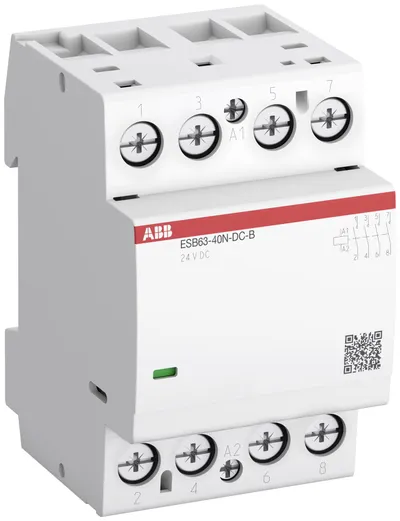

1SAE351221R0140ESB63-40N-DC-B Installation Contactor for Air Temperature Near the Contactor = 85 °C, 2 Poles in Parallel 80 A - 4 NO - 0 NC - 24 V DC - Control Circuit DC
ABB
1SAE351221M0140ESB63-40N-DC-B Installation Contactor for Air Temperature Near the Contactor = 85 °C, 2 Poles in Parallel 80 A - 4 NO - 0 NC - 24 V DC - Control Circuit DC
ABB
1SAE351111M1440ESB63-40N-14 Installation Contactor (NO) 63 A - 4 NO - 0 NC - 12 V - Control Circuit 400 Hz
ABB
1SAE351111M0840ESB63-40N-08 Installation Contactor (NO) 63 A - 4 NO - 0 NC - 415 V - Control Circuit 400 Hz
ABB
1SAE351111R0740ESB63-40N-07 Installation Contactor (NO) 63 A - 4 NO - 0 NC - 400 V - Control Circuit 400 Hz
ABB
1SAE351111R0640ESB63-40N-06 Installation Contactor (NO) 63 A - 4 NO - 0 NC - 230 V - Control Circuit 400 Hz
ABB
1SAE351111M0640ESB63-40N-06 Installation Contactor (NO) 63 A - 4 NO - 0 NC - 230 V - Control Circuit 400 Hz
ABB
1SAE351111R0540ESB63-40N-05 Installation Contactor (NO) 63 A - 4 NO - 0 NC - 240 V - Control Circuit 400 Hz
ABB
1SAE351111M0740ESB63-40N-07 Installation Contactor (NO) 63 A - 4 NO - 0 NC - 400 V - Control Circuit 400 Hz
ABB
1SAE351111R0440ESB63-40N-04 Installation Contactor (NO) 63 A - 4 NO - 0 NC - 110 V - Control Circuit 400 Hz
ABB
1SAE351111M0540ESB63-40N-05 Installation Contactor (NO) 63 A - 4 NO - 0 NC - 240 V - Control Circuit 400 Hz
ABB
1SAE351111M0440ESB63-40N-04 Installation Contactor (NO) 63 A - 4 NO - 0 NC - 110 V - Control Circuit 400 Hz
ABB
1SAE351111R0340ESB63-40N-03 Installation Contactor (NO) 63 A - 4 NO - 0 NC - 48 V - Control Circuit 400 Hz
ABB
1SAE351111M0340ESB63-40N-03 Installation Contactor (NO) 63 A - 4 NO - 0 NC - 48 V - Control Circuit 400 Hz
ABB
1SAE351111M0240ESB63-40N-02 Installation Contactor (NO) 63 A - 4 NO - 0 NC - 42 V - Control Circuit 400 Hz
ABB
1SAE351111R0240ESB63-40N-02 Installation Contactor (NO) 63 A - 4 NO - 0 NC - 42 V - Control Circuit 400 Hz
ABB
1SAE351111R0140ESB63-40N-01 Installation Contactor (NO) 63 A - 4 NO - 0 NC - 24 V - Control Circuit 400 Hz
ABB
1SAE351111M0140ESB63-40N-01 Installation Contactor (NO) 63 A - 4 NO - 0 NC - 24 V - Control Circuit 400 Hz
ABB
1SAE351111R0631ESB63-31N-06 Installation Contactor (NC) 30 A - 3 NO - 1 NC - 230 V - Control Circuit 400 Hz
ABB
1SAE351111R0431ESB63-31N-04 Installation Contactor (NC) 30 A - 3 NO - 1 NC - 110 V - Control Circuit 400 Hz
ABB
1SAE351111M0730ESB63-30N-07 Installation Contactor (NO) 63 A - 3 NO - 0 NC - 400 V - Control Circuit 400 Hz
ABB
1SAE351111M0631ESB63-31N-06 Installation Contactor (NC) 30 A - 3 NO - 1 NC - 230 V - Control Circuit 400 Hz
Compare ABB Installation Contactors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (ABB product ID) | Type | Minimum Order Quantity | Product Net Weight | Rated Control Circuit Voltage (U<sub>c</sub>) |
|---|---|---|---|---|---|
| 1SAE351111R1440 | 1SAE351111R1440 | ESB63-40N-14 | 1 piece | 0.405 kg | 12 V |
| 1SAE351111R0840 | 1SAE351111R0840 | ESB63-40N-08 | 1 piece | 0.405 kg | 415 V |
| 1SAE351221R0140 | 1SAE351221R0140 | ESB63-40N-DC-B | 1 piece | 0.405 kg | 24 V DC |
| 1SAE351221M0140 | 1SAE351221M0140 | ESB63-40N-DC-B | 4 piece | 0.405 kg | 24 V DC |
| 1SAE351111M1440 | 1SAE351111M1440 | ESB63-40N-14 | 4 piece | 0.405 kg | 12 V |
| 1SAE351111M0840 | 1SAE351111M0840 | ESB63-40N-08 | 4 piece | 0.405 kg | 415 V |
| 1SAE351111R0740 | 1SAE351111R0740 | ESB63-40N-07 | 1 piece | 0.4 kg | 400 V |
| 1SAE351111R0640 | 1SAE351111R0640 | ESB63-40N-06 | 1 piece | 0.405 kg | 230 V |
| 1SAE351111M0640 | 1SAE351111M0640 | ESB63-40N-06 | 4 piece | 0.405 kg | 230 V |
| 1SAE351111R0540 | 1SAE351111R0540 | ESB63-40N-05 | 1 piece | 0.405 kg | 240 V |
| 1SAE351111M0740 | 1SAE351111M0740 | ESB63-40N-07 | 4 piece | 0.4 kg | 400 V |
| 1SAE351111R0440 | 1SAE351111R0440 | ESB63-40N-04 | 1 piece | 0.405 kg | 110 V |
| 1SAE351111M0540 | 1SAE351111M0540 | ESB63-40N-05 | 4 piece | 0.405 kg | 240 V |
| 1SAE351111M0440 | 1SAE351111M0440 | ESB63-40N-04 | 4 piece | 0.405 kg | 110 V |
| 1SAE351111R0340 | 1SAE351111R0340 | ESB63-40N-03 | 1 piece | 0.405 kg | 48 V |
| 1SAE351111M0340 | 1SAE351111M0340 | ESB63-40N-03 | 4 piece | 0.405 kg | 48 V |
| 1SAE351111M0240 | 1SAE351111M0240 | ESB63-40N-02 | 4 piece | 0.405 kg | 42 V |
| 1SAE351111R0240 | 1SAE351111R0240 | ESB63-40N-02 | 1 piece | 0.405 kg | 42 V |
| 1SAE351111R0140 | 1SAE351111R0140 | ESB63-40N-01 | 1 piece | 0.405 kg | 24 V |
| 1SAE351111M0140 | 1SAE351111M0140 | ESB63-40N-01 | 4 piece | 0.405 kg | 24 V |
| 1SAE351111R0631 | 1SAE351111R0631 | ESB63-31N-06 | 1 piece | 0.405 kg | 230 V |
| 1SAE351111R0431 | 1SAE351111R0431 | ESB63-31N-04 | 1 piece | 0.405 kg | 110 V |
| 1SAE351111M0730 | 1SAE351111M0730 | ESB63-30N-07 | 4 piece | 0.385 kg | 400 V |
| 1SAE351111M0631 | 1SAE351111M0631 | ESB63-31N-06 | 4 piece | 0.405 kg | 230 V |
Common to all listed parts
| Lifecycle | Active (current ABB product) |
| Customs Tariff Number | 85365080 |
| Product Net Width | 54 mm |
| Product Net Depth / Length | 65 mm |
| Product Net Height | 85 mm |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 0 |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 240 A |
