Mitsubishi Motion controller – Embedded Type Servo System Controller Parts
Compare Mitsubishi Motion controller – Embedded Type Servo System Controller
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type | Bus specification | Bus specification: Size [mm] | Power supply voltage | Mass [kg] |
|---|---|---|---|---|---|

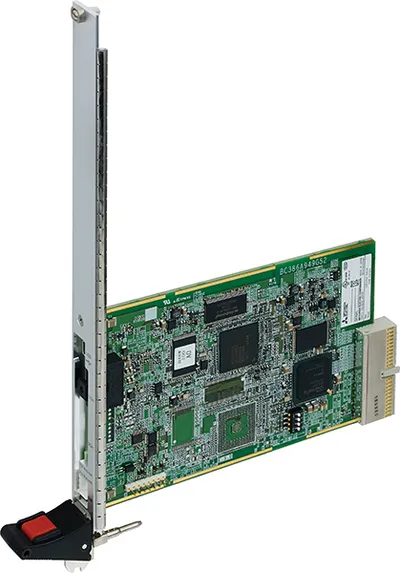

| MR-MC220U6 | Position board | Compact PCI ® | 6U size 262.05 × 160.0 | 5 V DC | 0.19 |

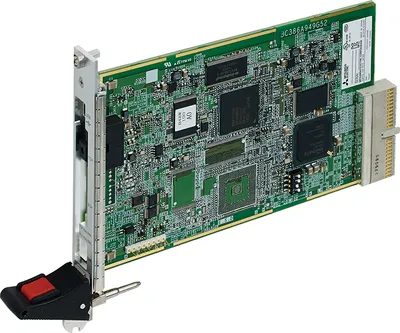

| MR-MC220U3 | Position board | Compact PCI ® | 3U size 128.7 × 160.0 | 5 V DC | 0.17 |

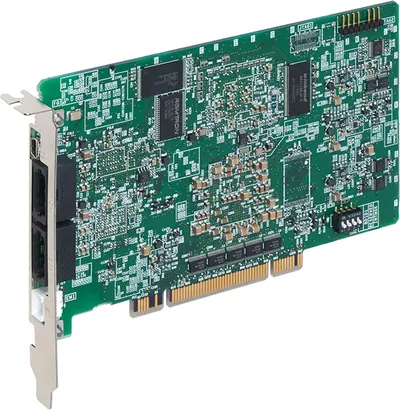

| MR-MC211 | Position board | PCI bus | Short size: 106.7 × 167.6 | 5 V DC | 0.11 |
| MR-MC210 | Position board | PCI bus | Short size: 106.7 × 167.6 | 5 V DC | 0.11 |
| MR-MC240 | Position board | PCI Express ® 1.1 × 1 *5 | Short size: 111.2 × 167.6 | 3.3 V DC | 0.11 |

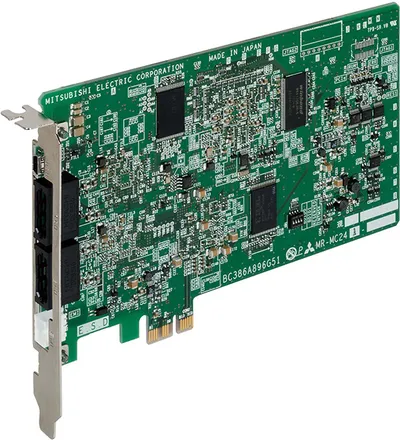

| MR-MC241 | Position board | PCI Express ® 1.1 × 1 *5 | Short size: 111.2 × 167.6 | 3.3 V DC | 0.11 |

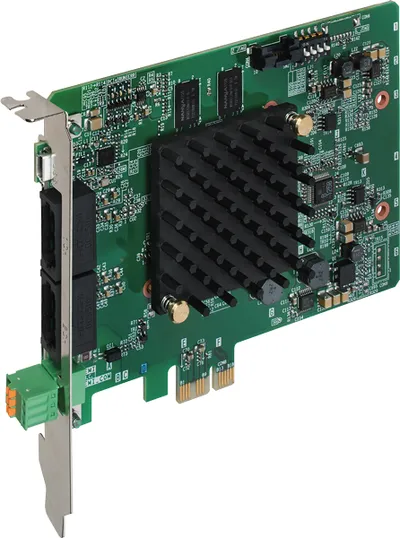

| MR-MC341 | Position board | PCI Express ® 2.0 | Short size: 105.8 × 128.8 | 3.3 V DC/12 V DC | 0.15 |

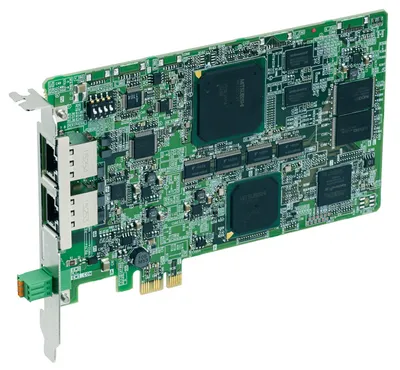

| MR-EM340GF | Simple Motion board | PCI Express ® 2.0 × 1 | Short size (167.65 × 111.15) | 12 V DC/3.3 V DC | 0.13 |

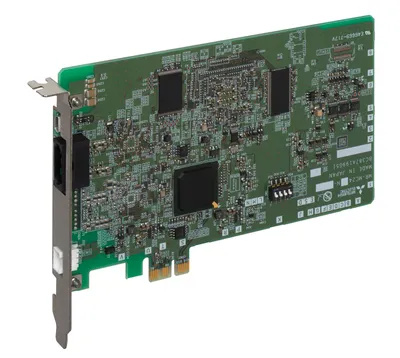

| MR-MC240N | Position board | PCI Express ® 1.1 × 1 *5 | Short size: 111.2 × 167.6 | 3.3 V DC/12 V DC | 0.11 |

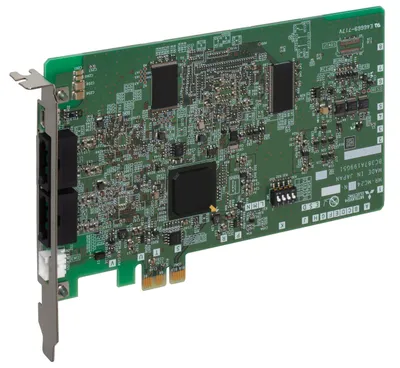

| MR-MC241N | Position board | PCI Express ® 1.1 × 1 *5 | Short size: 111.2 × 167.6 | 3.3 V DC/12 V DC | 0.11 |

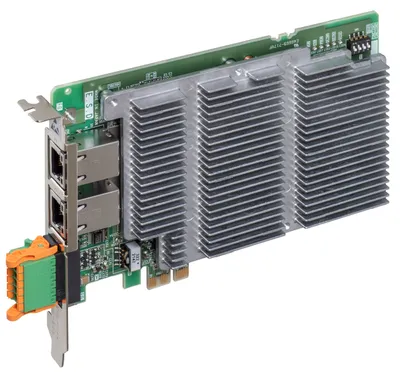

| MR-EM441G | Motion control board | PCI Express ® 2.0 × 1 | — | — | — |
Common to all listed parts
| Series | Motion controller |
| Category | Embedded Type Servo System Controller |
| Number of Simple Motion boards for one computer | 4 |
