Mitsubishi MELSERVO servo – Converter units Parts
Compare Mitsubishi MELSERVO servo – Converter units
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Outline | Output: Rated current [A] | Main circuit power supply input: Rated current [A] | Continuous rating [kW] | Instantaneous maximum rating [kW] |
|---|---|---|---|---|---|

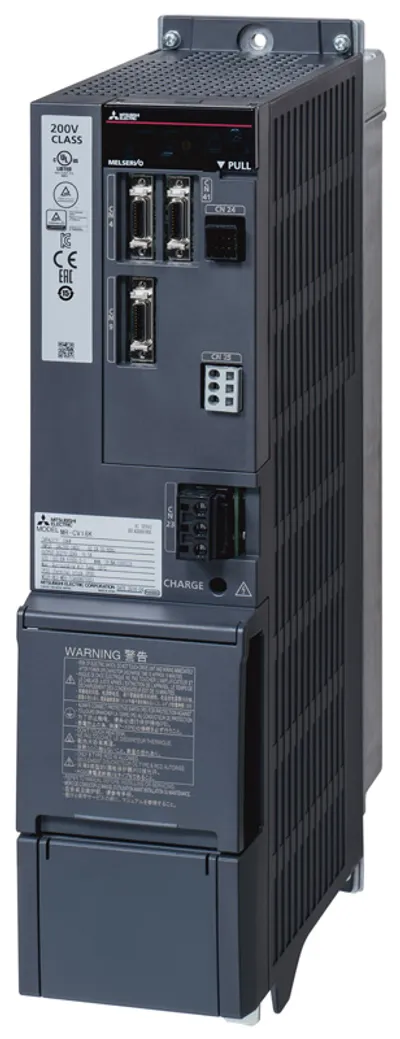

| MR-CV75K4 | 55 | 150 | 130 | 55 | 180 |
| MR-CV55K4 | 55 | 119 | 106 | 55 | 175 |
| MR-CV45K4 | 25 | 99 | 85 | 25 | 125 |
| MR-CV37K4 | 25 | 82 | 70 | 25 | 101 |
| MR-CV30K4 | 20 | 72 | 61 | 20 | 92 |
| MR-CV18K4 | 11 | 38 | 35 | 11 | 60 |
| MR-CV11K4 | 7.5 | 21 | 18 | 7.5 | 39 |
| MR-CV55K | 37 | 238 | 200 | 37 | 175 |
| MR-CV45K | 22 | 198 | 148 | 22 | 125 |
| MR-CV37K | 22 | 164 | 121 | 22 | 101 |
| MR-CV30K | 20 | 144 | 107 | 20 | 92 |
| MR-CV18K | 11 | 76 | 65 | 11 | 60 |
| MR-CV11K | 7.5 | 41 | 35 | 7.5 | 39 |

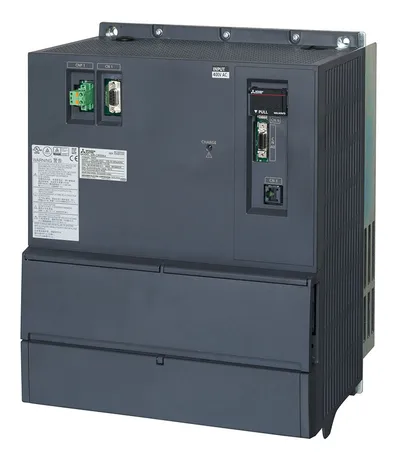

| MR-CR55K4 | 55 | 113.8 | 100.7 | 55 | — |
| MR-CR55K | 55 | 215.9 | 191.3 | 55 | — |

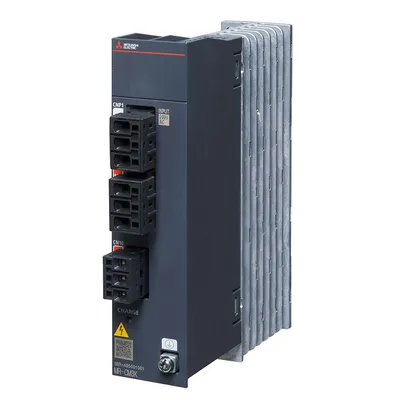

| MR-CM3K | 3 | 20 | 16 | 3 | 9 |
Common to all listed parts
| Series | MELSERVO servo |
