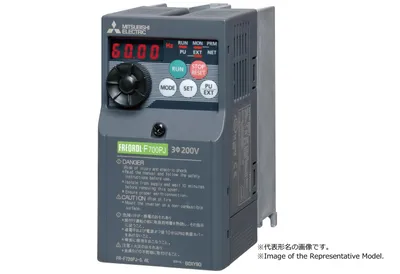

Mitsubishi FREQROL inverter – FREQROL-F700PJ Parts
Compare Mitsubishi FREQROL inverter – FREQROL-F700PJ
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model name | Output: Rated capacity (kVA) *2 | Output: Rated current (A) | Power supply: Power supply capacity (kVA) with DC reactor *5 | Approx. mass (kg) |
|---|---|---|---|---|---|
| FR-F740PJ-15KF | FR-F740PJ-15KF | 22.5 | 29.5 | 19.0 | 14.2 |
| FR-F740PJ-11KF | FR-F740PJ-11KF | 17.5 | 23.0 | 16.0 | 13.0 |
| FR-F740PJ-7.5KF | FR-F740PJ-7.5KF | 12.4 | 16.3 | 11.0 | 8.3 |
| FR-F740PJ-5.5KF | FR-F740PJ-5.5KF | 9.1 | 12.0 | 8.5 | 7.8 |
| FR-F740PJ-3.7KF | FR-F740PJ-3.7KF | 6.2 | 8.1 | 5.4 | 4.1 |
| FR-F740PJ-2.2KF | FR-F740PJ-2.2KF | 3.8 | 5.0 | 3.3 | 3.8 |
| FR-F740PJ-1.5KF | FR-F740PJ-1.5KF | 2.8 | 3.7 | 2.7 | 3.3 |
| FR-F740PJ-0.75KF | FR-F740PJ-0.75KF | 1.7 | 2.2 | 1.3 | 3.0 |
| FR-F740PJ-0.4KF | FR-F740PJ-0.4KF | 0.9 | 1.2 | 0.7 | 2.9 |
| FR-F720PJ-15KF | FR-F720PJ-15KF | 22.1 | 58.0 | 19.0 | 13.5 |
| FR-F720PJ-11KF | FR-F720PJ-11KF | 17.1 | 45.0 | 16.0 | 13.2 |
| FR-F720PJ-7.5KF | FR-F720PJ-7.5KF | 12.1 | 31.8 | 11.0 | 8.1 |
| FR-F720PJ-5.5KF | FR-F720PJ-5.5KF | 9.1 | 23.8 | 8.4 | 7.4 |
| FR-F720PJ-3.7KF | FR-F720PJ-3.7KF | 6.3 | 16.5 | 5.5 | 4.6 |
| FR-F720PJ-2.2KF | FR-F720PJ-2.2KF | 3.8 | 10.0 | 3.4 | 3.6 |
| FR-F720PJ-1.5KF | FR-F720PJ-1.5KF | 2.7 | 7.0 | 2.6 | 3.4 |
| FR-F720PJ-0.75KF | FR-F720PJ-0.75KF | 1.6 | 4.2 | 1.2 | 2.4 |
| FR-F720PJ-0.4KF | FR-F720PJ-0.4KF | 1.0 | 2.5 | 0.8 | 2.1 |
| FR-F740PJ-15K | FR-F740PJ-15K | 22.5 | 29.5 | — | 6.0 |
| FR-F740PJ-11K | FR-F740PJ-11K | 17.5 | 23.0 | — | 6.0 |
| FR-F740PJ-7.5K | FR-F740PJ-7.5K | 12.4 | 16.3 | — | 3.3 |
| FR-F740PJ-5.5K | FR-F740PJ-5.5K | 9.1 | 12.0 | — | 3.3 |
| FR-F740PJ-3.7K | FR-F740PJ-3.7K | 6.2 | 8.1 | — | 1.5 |
| FR-F740PJ-2.2K | FR-F740PJ-2.2K | 3.8 | 5.0 | — | 1.5 |
Common to all listed parts
| Series | FREQROL inverter |
| Category | FR-F700PJ |
| Sales status | 2027/01 To be discontinued (Mitsubishi Electric) |
| Outline | cULus CE(LVD) |
| Output: Overload current rating *3 | 120 % 60 s, 150 % 0.5 s (inverse-time characteristics) |
| Power supply: Permissible frequency fluctuation | ±5 % |
| Control: Control method: Common | High carrier frequency PWM control |
| Control: Control method: PM motor | IPM motor control |
