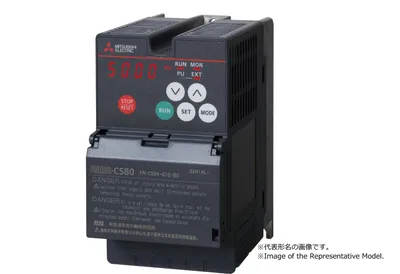

Mitsubishi FREQROL inverter – FREQROL-CS80 Parts
Compare Mitsubishi FREQROL inverter – FREQROL-CS80
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model name | Inverter capacity (kW) | output: Rated capacity (kVA) *2 | output: Rated current (A) *3 | Power supply: Power supply capacity (kVA) *6 |
|---|---|---|---|---|---|
| FR-CS82S-100-60 | FR-CS82S-100-60 | 2.2 | 4.0 | 10.0 (8.5) | 5.2 |
| FR-CS82S-070-60 | FR-CS82S-070-60 | 1.5 | 2.8 | 7.0 (6.0) | 4.0 |
| FR-CS82S-042-60 | FR-CS82S-042-60 | 0.75 | 1.7 | 4.2 (3.6) | 2.3 |
| FR-CS82S-025-60 | FR-CS82S-025-60 | 0.4 | 1.0 | 2.5 (2.1) | 1.5 |
| FR-CS84-295-60 | FR-CS84-295-60 | 15.0 | 22.5 | 29.5 (25.1) | 28.0 |
| FR-CS84-230-60 | FR-CS84-230-60 | 11.0 | 17.5 | 23.0 (19.6) | 20.0 |
| FR-CS84-160-60 | FR-CS84-160-60 | 7.5 | 12.2 | 16.0 (13.6) | 17.0 |
| FR-CS84-120-60 | FR-CS84-120-60 | 5.5 | 9.1 | 12.0 (10.2) | 12.0 |
| FR-CS84-080-60 | FR-CS84-080-60 | 3.7 | 6.1 | 8.0 (6.8) | 9.5 |
| FR-CS84-050-60 | FR-CS84-050-60 | 2.2 | 3.8 | 5.0 (4.3) | 5.5 |
| FR-CS84-036-60 | FR-CS84-036-60 | 1.5 | 2.7 | 3.6 (3.1) | 4.5 |
| FR-CS84-022-60 | FR-CS84-022-60 | 0.75 | 1.7 | 2.2 (1.9) | 2.5 |
| FR-CS84-012-60 | FR-CS84-012-60 | 0.4 | 0.9 | 1.2 (1.0) | 1.5 |
Common to all listed parts
| Series | FREQROL inverter |
| Category | FR-CS80 |
| Outline | cULus CE(LVD) |
| series | FR-CS80 |
| output: Overload current rating *4 | 150 % 60 s, 200 % 0.5 s (inverse-time characteristics) |
| Power supply: Permissible frequency fluctuation | ±5 % |
| Protection rating of structure(IEC 60529) | IP20 |
| Control: Output frequency range | 0.2 to 400 Hz. |
