Mitsubishi MELSEC network modules – CC-Link IE Field Basic Parts
Compare Mitsubishi MELSEC network modules – CC-Link IE Field Basic
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Subtype | Output type | Number of output points | Protection degree | Weight |
|---|---|---|---|---|---|
| NZ2MF2S1-32DTE1 | I/O | Transistor output (source type) | 16 points | IP2X | 0.25 kg |

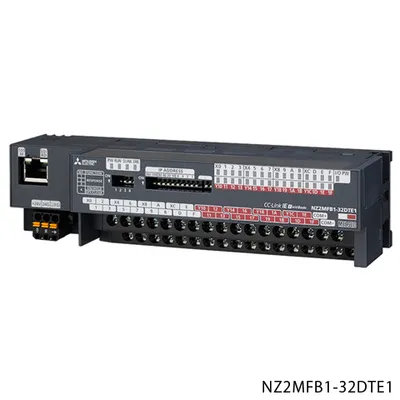

| NZ2MFB1-32DTE1 | I/O | Transistor output (source type) | 16 points | IP2X | 0.30 kg |
| NZ2MF2S1-32DT | I/O | Transistor output (sink type) | 16 points | IP2X | 0.25 kg |

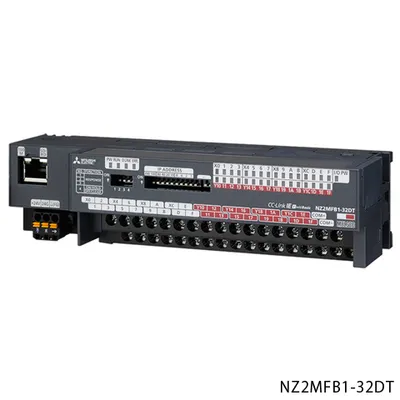

| NZ2MFB1-32DT | I/O | Transistor output (sink type) | 16 points | IP2X | 0.30 kg |

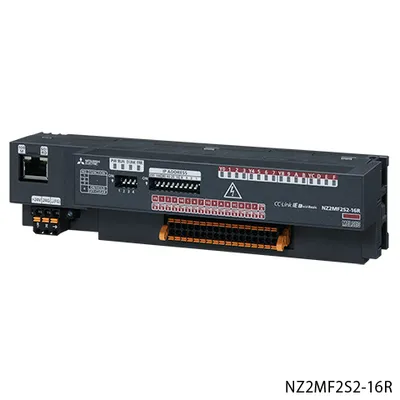

| NZ2MF2S2-16R | Output | Contact output | 16 points | IP1X | 0.30 kg |

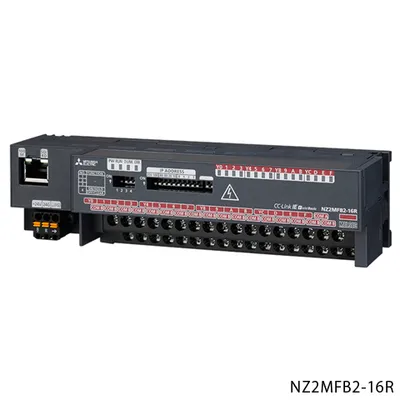

| NZ2MFB2-16R | Output | Contact output | 16 points | IP1X | 0.35 kg |

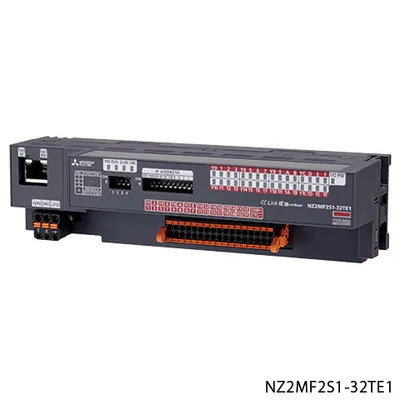

| NZ2MF2S1-32TE1 | Output | Transistor output (source type) | 32 points | IP2X | 0.25 kg |

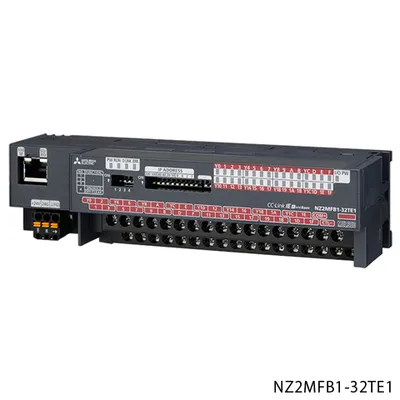

| NZ2MFB1-32TE1 | Output | Transistor output (source type) | 32 points | IP2X | 0.30 kg |

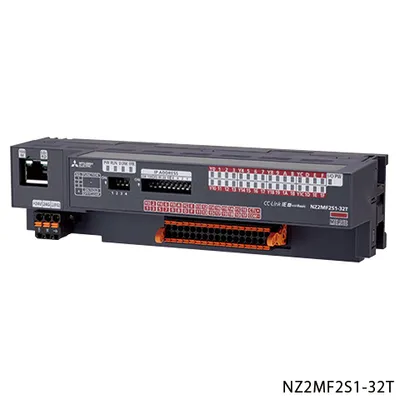

| NZ2MF2S1-32T | Output | Transistor output (sink type) | 32 points | IP2X | 0.25 kg |

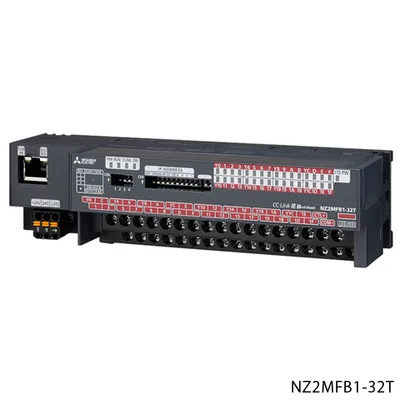

| NZ2MFB1-32T | Output | Transistor output (sink type) | 32 points | IP2X | 0.30 kg |

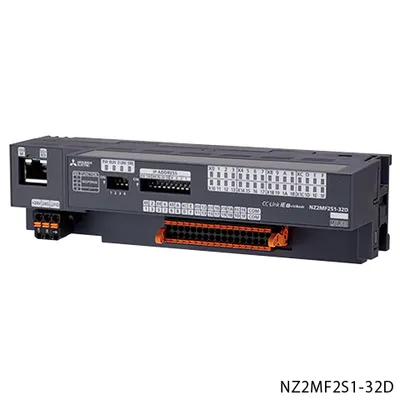

| NZ2MF2S1-32D | Input | — | — | IP2X | 0.25 kg |

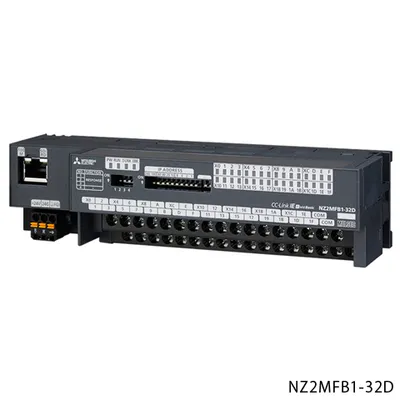

| NZ2MFB1-32D | Input | — | — | IP2X | 0.30 kg |

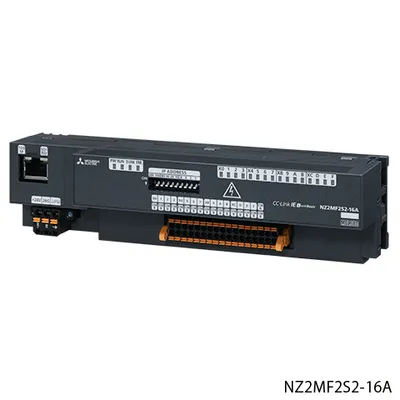

| NZ2MF2S2-16A | Input | — | — | IP1X | 0.26 kg |

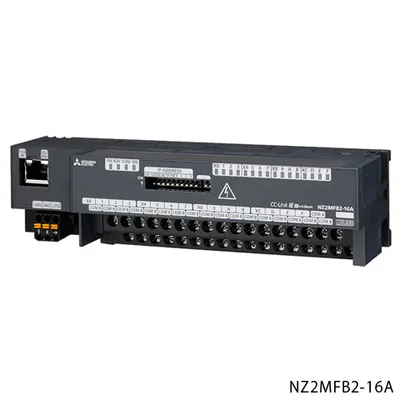

| NZ2MFB2-16A | Input | — | — | IP1X | 0.31 kg |
Common to all listed parts
| Series | MELSEC network modules |
| Category | Remote I/O |
| Type | I/O |
| Station type | Remote station |
| Number of occupied stations | 1 station |
| Reference response time | 1 ms |
| Module power supply: Voltage | 24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC) |
| Communication cable | An Ethernet cable that meets the 100BASE-TX standard |
