Mitsubishi MELSEC network modules – CC-Link IE Field Parts
Compare Mitsubishi MELSEC network modules – CC-Link IE Field
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Subtype | External dimensions: Height | External dimensions: Width | External dimensions: Depth | Weight |
|---|---|---|---|---|---|

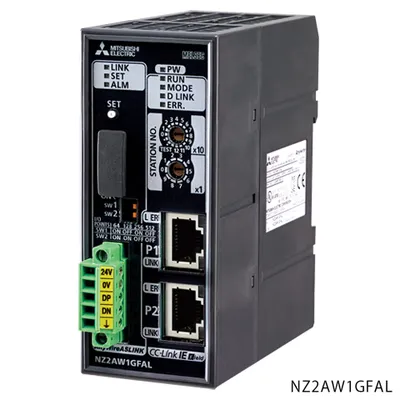

| NZ2AW1GFAL | AnyWire bridge | 102 mm | 43 mm | 96 mm | 0.2 kg |

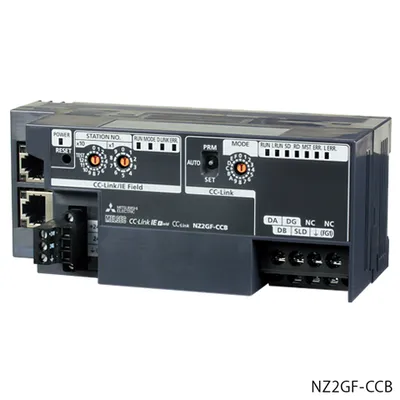

| NZ2GF-CCB | CC-Link bridge | 69.5 mm | 160 mm | 68 mm | 0.38 kg |

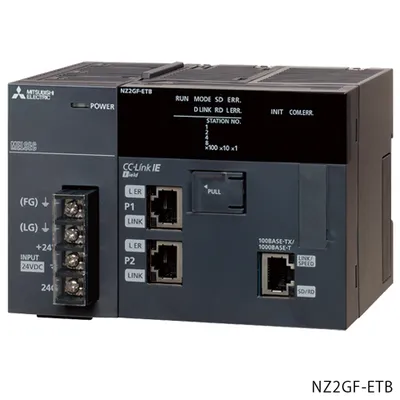

| NZ2GF-ETB | Ethernet adapter | 90 mm | 135 mm | 109 mm | 0.70 kg |

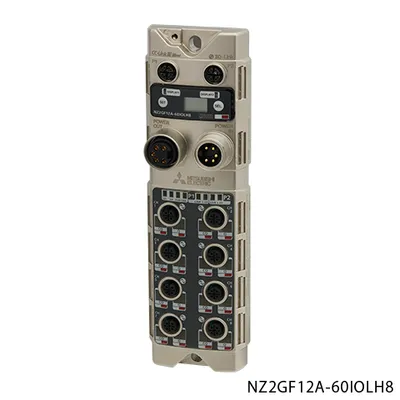

| NZ2GF12A-60IOLH8 | — | 224 mm | 68 mm | 38 mm | 0.685 kg |

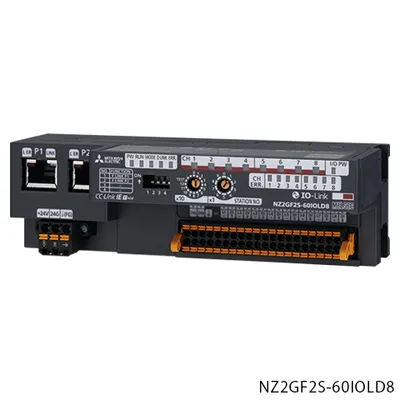

| NZ2GF2S-60IOLD8 | — | 50 mm | 163 mm | 68 mm | 0.24 kg |

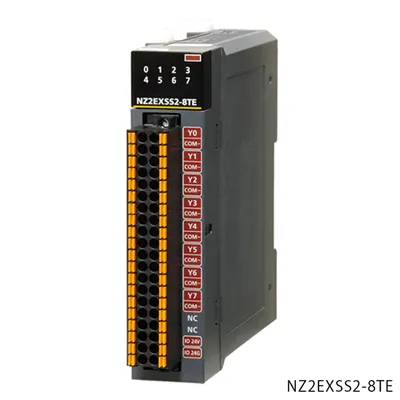

| NZ2EXSS2-8TE | Output (extension) | 100 mm | 23 mm | 111.5 mm | 0.16 kg |

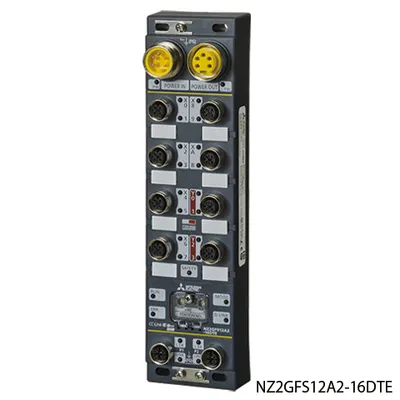

| NZ2GFS12A2-16DTE | I/O | 235 mm | 60 mm | 48.5 mm | 0.89 kg |

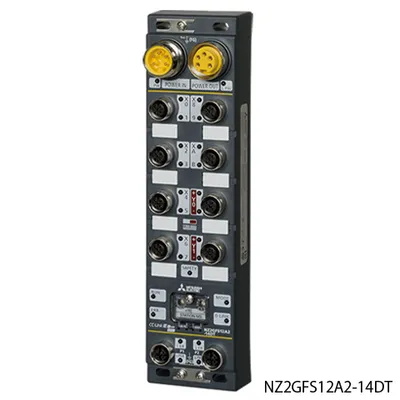

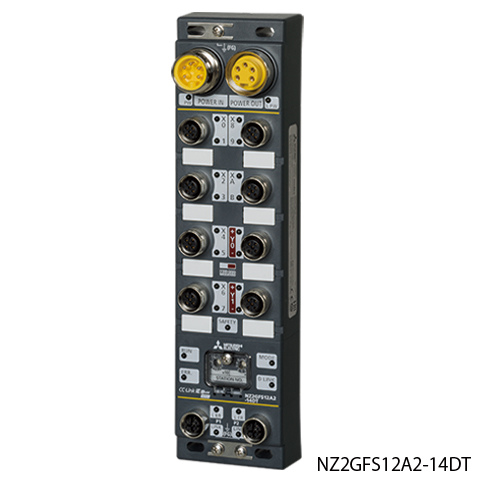

| NZ2GFS12A2-14DT | I/O | 235 mm | 60 mm | 48.5 mm | 0.89 kg |

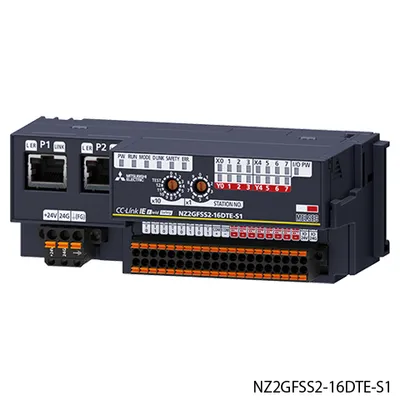

| NZ2GFSS2-16DTE-S1 | I/O | 50 mm | 142 mm | 68 mm | 0.25 kg |

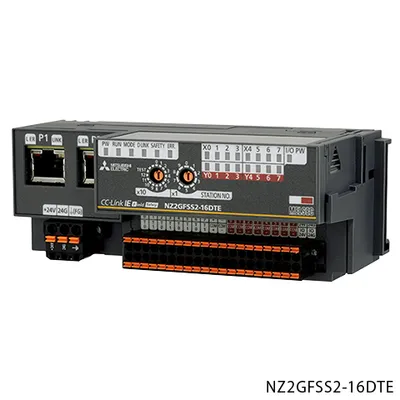

| NZ2GFSS2-16DTE | I/O | 50 mm | 142 mm | 68 mm | 0.25 kg |

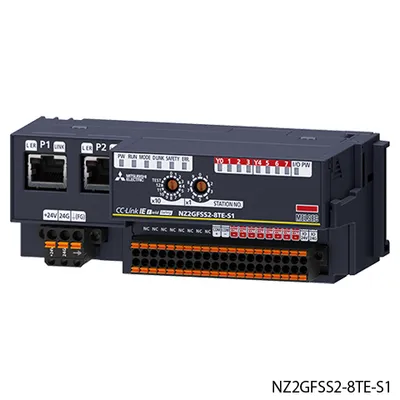

| NZ2GFSS2-8TE-S1 | Output | 50 mm | 142 mm | 68 mm | 0.25 kg |

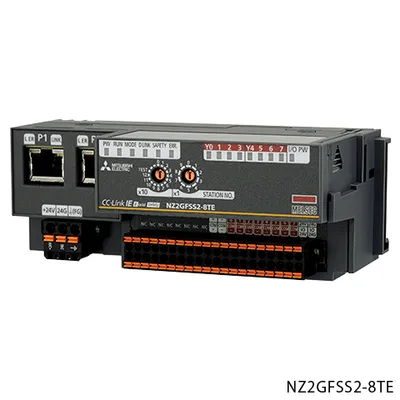

| NZ2GFSS2-8TE | Output | 50 mm | 142 mm | 68 mm | 0.25 kg |

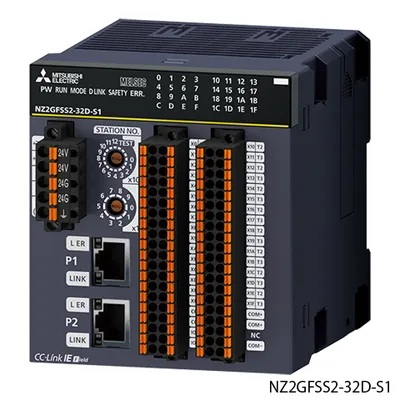

| NZ2GFSS2-32D-S1 | Input | 100 mm | 90 mm | 113 mm | 0.45 kg |

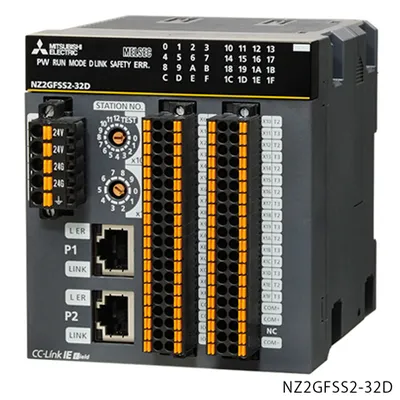

| NZ2GFSS2-32D | Input | 100 mm | 90 mm | 113 mm | 0.45 kg |

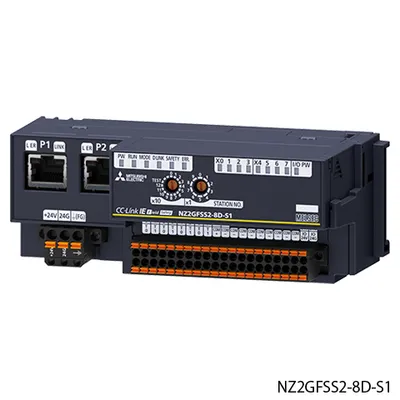

| NZ2GFSS2-8D-S1 | Input | 50 mm | 142 mm | 68 mm | 0.25 kg |

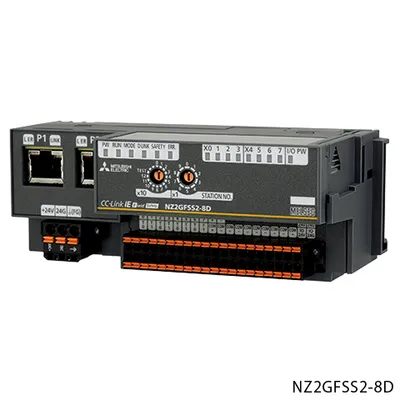

| NZ2GFSS2-8D | Input | 50 mm | 142 mm | 68 mm | 0.25 kg |

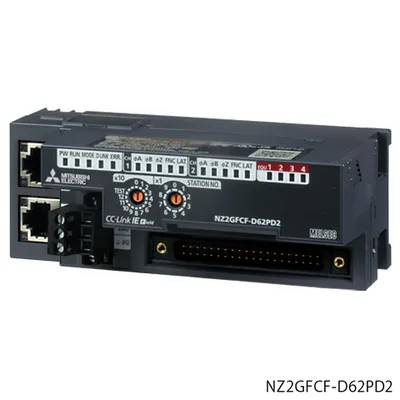

| NZ2GFCF-D62PD2 | — | 50 mm | 133 mm | 68 mm | 0.25 kg |
| NZ2GF2B-60TCRT4 | Temperature control | 65 mm | 160 mm | 99 mm | 0.35 kg |

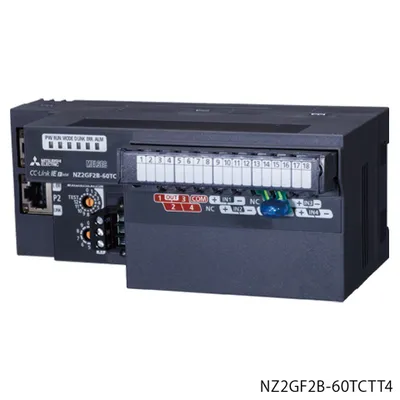

| NZ2GF2B-60TCTT4 | Temperature control | 65 mm | 160 mm | 99 mm | 0.35 kg |

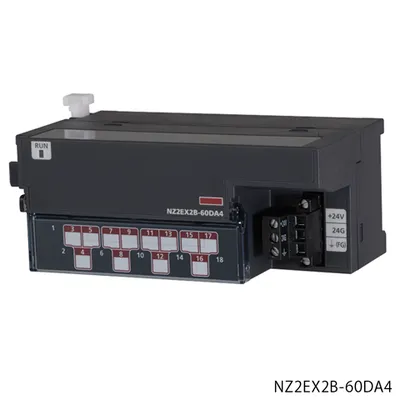

| NZ2EX2B-60DA4 | Analog output (extension) | 50 mm | 115 mm | 68 mm | 0.23 kg |

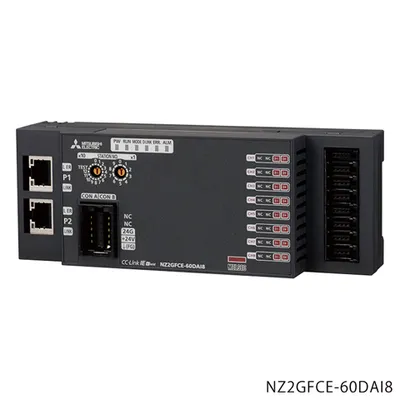

| NZ2GFCE-60DAI8 | Analog output | 65 mm | 175 mm | 43.5 mm | 0.22 kg |

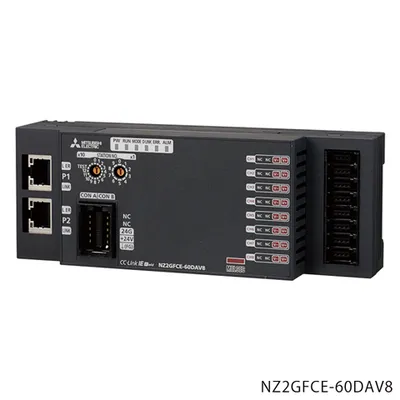

| NZ2GFCE-60DAV8 | Analog output | 65 mm | 175 mm | 43.5 mm | 0.22 kg |

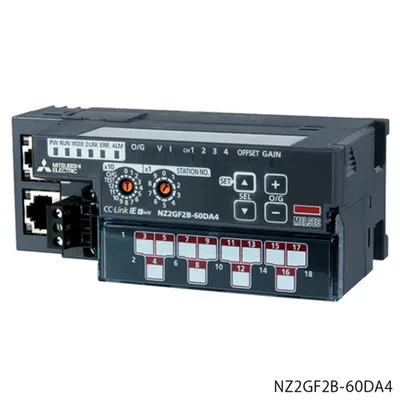

| NZ2GF2B-60DA4 | Analog output | 50 mm | 133 mm | 68 mm | 0.30 kg |

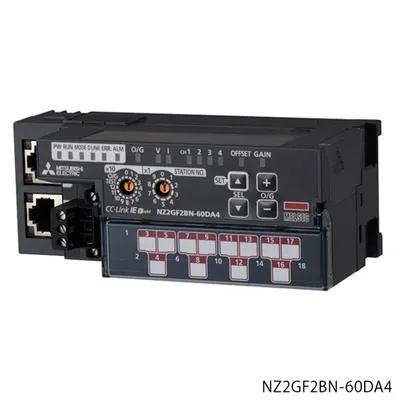

| NZ2GF2BN-60DA4 | Analog output | 50 mm | 133 mm | 68 mm | 0.29 kg |
Common to all listed parts
| Series | MELSEC network modules |
| Storage ambient humidity | 5...95 %RH, non-condensing |
| Operating altitude | 0...2000 m |
| Overvoltage category | II or less |
| Pollution degree | 2 or less |
