Mitsubishi MELSEC-F (FX) Series – Data link/Communication Parts
Compare Mitsubishi MELSEC-F (FX) Series – Data link/Communication
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Transmission standard | Connection method | LED |
|---|---|---|---|

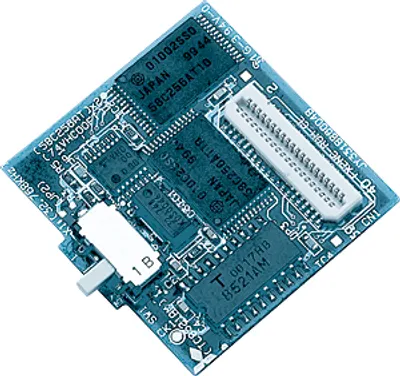

| FX2NC-ROM-CE1 | — | — | — |

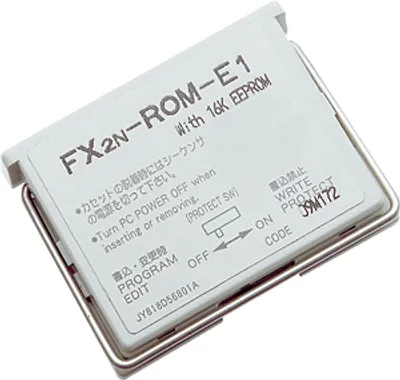

| FX2N-ROM-E1 | — | — | — |

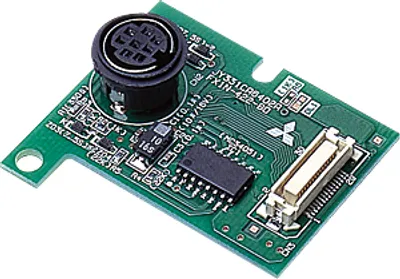

| FX1N-422-BD | Conforming to RS-422 | 8-pin MINI-DIN (female) | — |

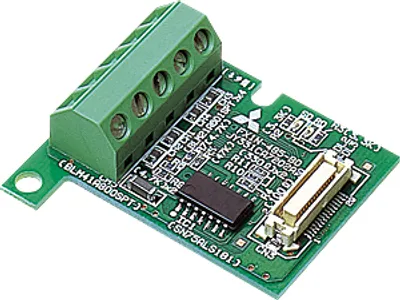

| FX1N-485-BD | Conforming to RS-485/RS-422 | European terminal block | RD, SD |

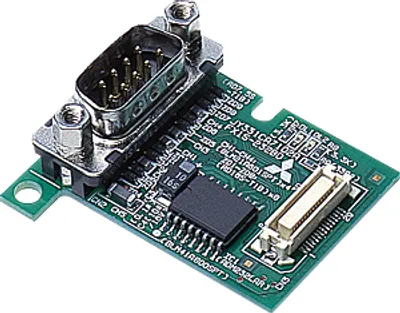

| FX1N-232-BD | RS-232C standard | 9-pin D-Sub connector (male) | RXD, TXD |

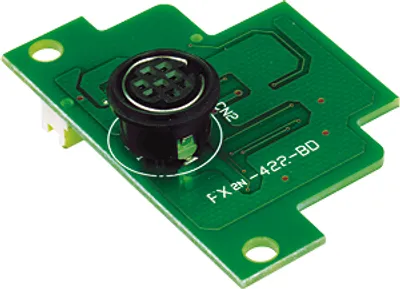

| FX2N-422-BD | Conforming to RS-422 | 8-pin MINI-DIN (female) | — |

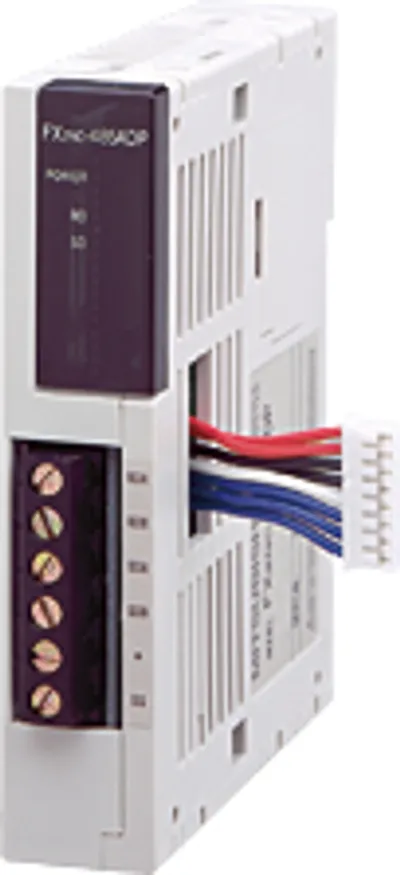

| FX2NC-485ADP | Conforming to RS-485/RS-422 | Terminal block for Europe | RD, SD, POWER |

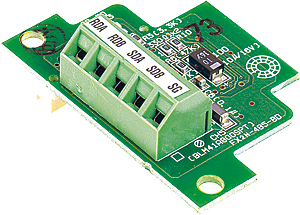

| FX2N-485-BD | Conforming to RS-485/RS-422 | European terminal block | RD, SD |

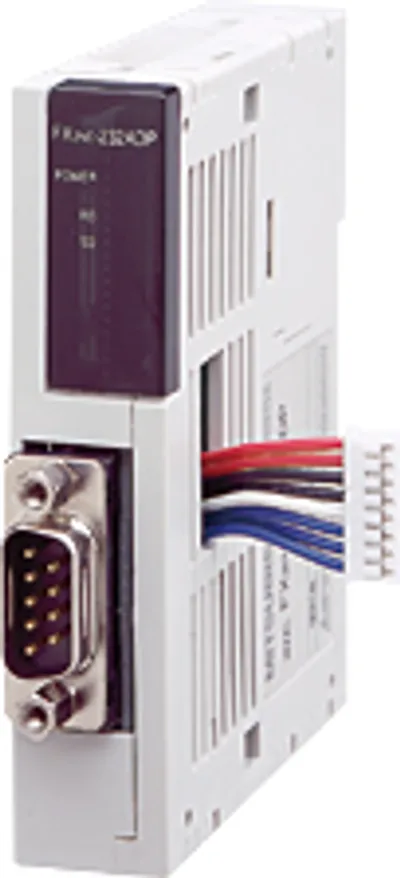

| FX2NC-232ADP | RS-232C standard | 9-pin D-Sub connector (male) | RD, SD, POWER |
| FX2N-232-BD | RS-232C standard | 9-pin D-Sub connector (male) | RXD, TXD |

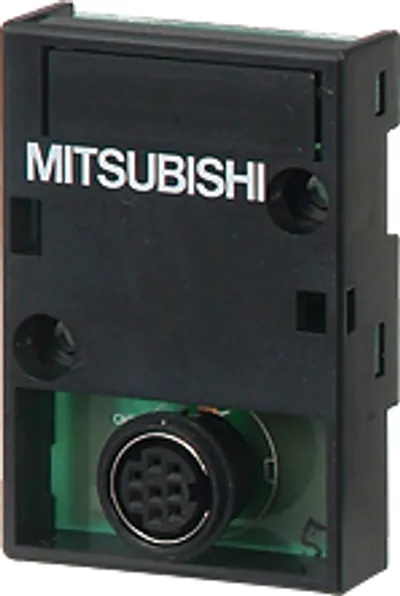

| FX3G-422-BD | Conforming to RS-422 | 8-pin MINI-DIN (female) | — |

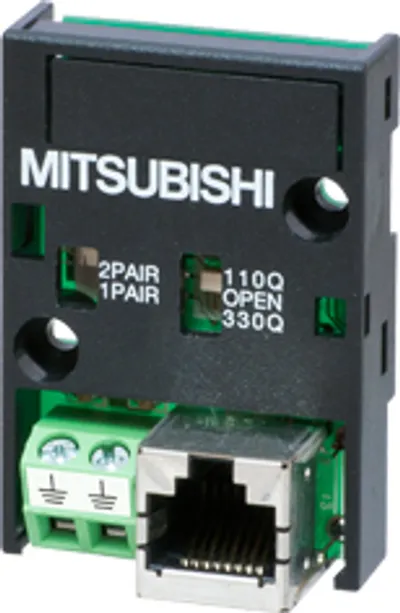

| FX3G-485-BD-RJ | Conforming to RS-485/RS-422 | RJ45 connector | RD, SD |

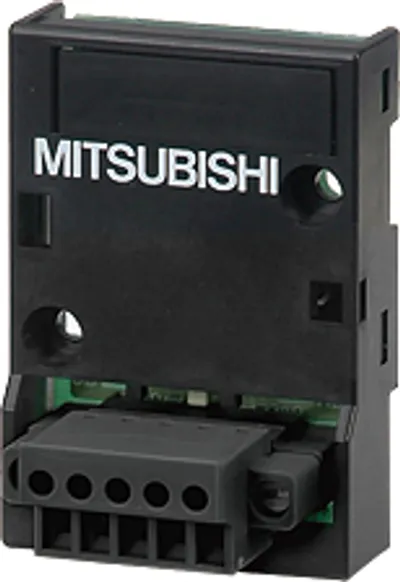

| FX3G-485-BD | Conforming to RS-485/RS-422 | European terminal block | RD, SD |
| FX3G-232-BD | RS-232C standard | 9-pin D-Sub connector (male) | RD, SD |

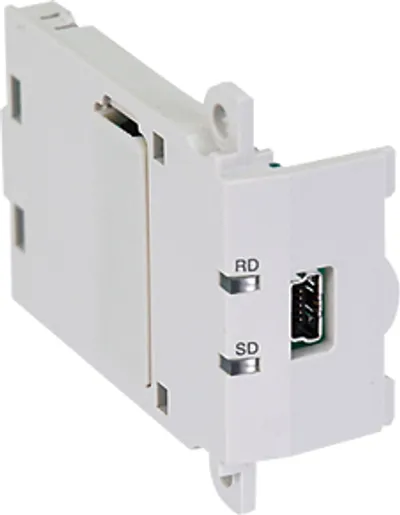

| FX3U-USB-BD | USB2.0 (For full speed) | USB (Mini-B plug female) | RD, SD |

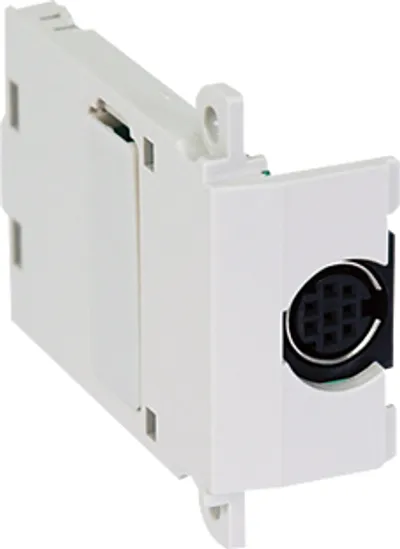

| FX3U-422-BD | Conforming to RS-422 | 8-pin MINI-DIN (female) | — |

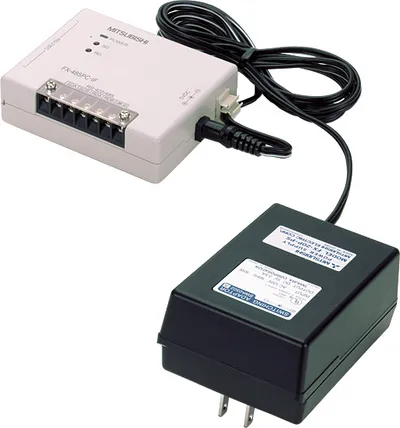

| FX-485PC-IF-SET | Conforming to RS-485/RS-422 | — | RD, SD, POWER |

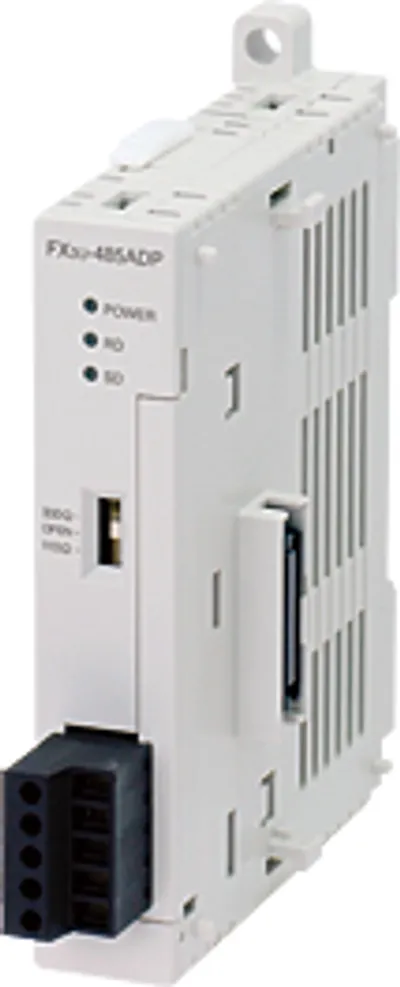

| FX3U-485ADP | Conforming to RS-485/RS-422 | Terminal block for Europe | RD, SD, POWER |

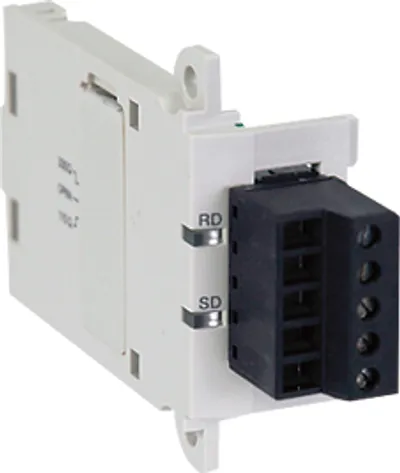

| FX3U-485-BD | Conforming to RS-485/RS-422 | European terminal block | RD, SD |
| FX2N-232IF | RS-232C standard | 9-pin D-Sub connector (male) | RD, SD, POWER |

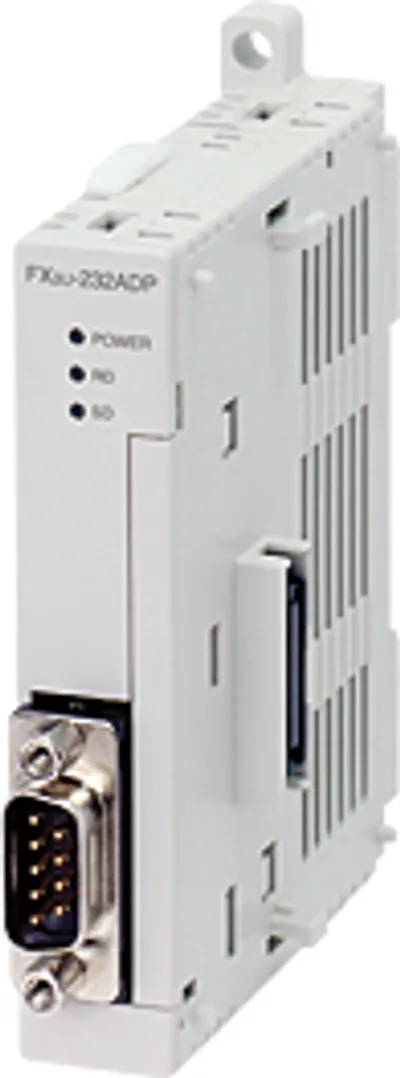

| FX3U-232ADP | RS-232C standard | 9-pin D-Sub connector (male) | RD, SD, POWER |

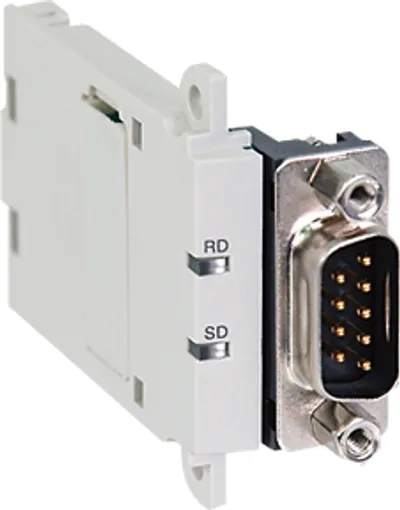

| FX3U-232-BD | RS-232C standard | 9-pin D-Sub connector (male) | RD, SD |

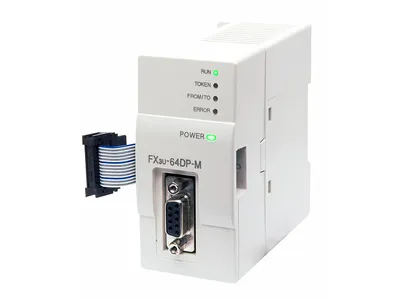

| FX3U-64DP-M | — | — | — |
| FX3U-485ADP-MB | Conforming to RS-485/RS-422 | Terminal block for Europe | RD, SD, POWER |
Common to all listed parts
| Series | MELSEC-F (FX) Series |
| Category | Data link/Communication |
