Mitsubishi MELSEC-F (FX) Series – Input/output extension Parts
Compare Mitsubishi MELSEC-F (FX) Series – Input/output extension
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Outline | Output connection type | Output type | Mass (weight) | Power consumption |
|---|---|---|---|---|---|
| FX1N-2EYT-BD | Output: 2 points | Terminal block | Sink/source | — | — |
| FX1N-4EX-BD | Input: 4 points | — | — | — | — |
| FX0N-40ET-DSS | Input: 24 points Output: 16 points | Removable terminal block (M3 screw) | Transistor/source output | 0.75 kg | 20 W |
| FX0N-40ER-DS | Input: 24 points Output: 16 points | Removable terminal block (M3 screw) | Relay | 0.75 kg | 20 W |

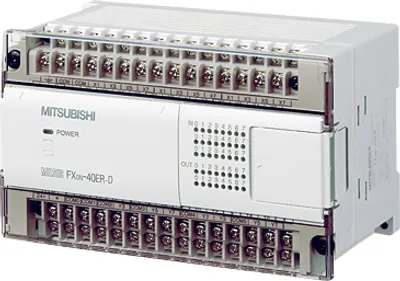

| FX0N-40ER-D | Input: 24 points Output: 16 points | Removable terminal block (M3 screw) | Relay | 0.75 kg | 20 W |
| FX0N-40ET | Input: 24 points Output: 16 points | Removable terminal block (M3 screw) | Transistor/sink output | 0.75 kg | 40 VA |
| FX0N-40ER-ES/UL | Input: 24 points Output: 16 points | Removable terminal block (M3 screw) | Relay | 0.75 kg | 40 VA |
| FX0N-40ER | Input: 24 points Output: 16 points | Removable terminal block (M3 screw) | Relay | 0.75 kg | 40 VA |

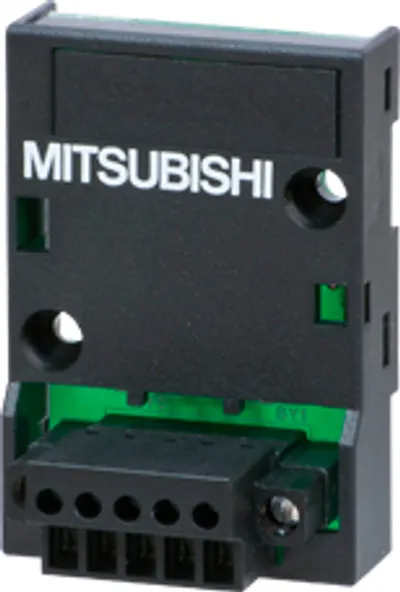

| FX3G-2EYT-BD | Output: 2 points | Terminal block for Europe | Transistor (Sink/source) | — | — |

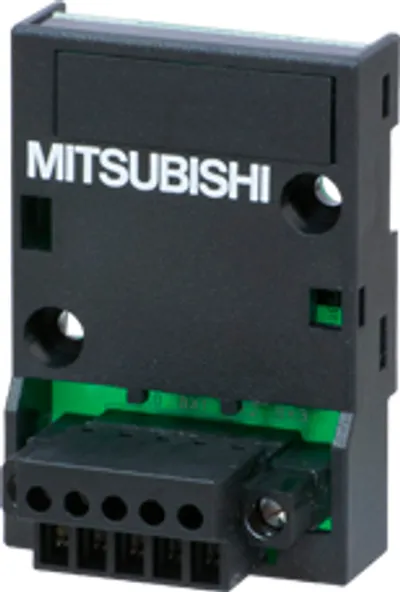

| FX3G-4EX-BD | Input: 4 points | — | — | — | — |
| FX2NC-64ET | Input: 32 points Output: 32 points | Connector | Transistor/sink output | 0.13 kg | 4.7 W |
| FX2NC-32EYT-D/UL | Output: 32 points | Connector | Transistor/sink output | 0.2 kg | 0.7 W |
| FX2NC-32EYT-DSS | Output: 32 points | Connector | Transistor/source output | 0.2 kg | 0.7 W |
| FX2NC-32EYT | Output: 32 points | Connector | Transistor/sink output | 0.2 kg | 0.7 W |
| FX2NC-16EYT-D/UL | Output: 16 points | Connector | Transistor/sink output | 0.15 kg | 0.35 W |
| FX2NC-16EYT-DSS | Output: 16 points | Connector | Transistor/source output | 0.15 kg | 0.35 W |
| FX2NC-16EYT | Output: 16 points | Connector | Transistor/sink output | 0.15 kg | 0.35 W |
| FX2NC-16EYR-T-DS | Output: 16 points | Terminal block for Europe | Relay | 0.15 kg | 2.2 W |
| FX2NC-16EYR-T | Output: 16 points | Terminal block for Europe | Relay | 0.15 kg | 2.2 W |
| FX2NC-32EX-D/UL | Input: 32 points | — | — | 0.2 kg | 4.2 W |
| FX2NC-32EX-DS | Input: 32 points | — | — | 0.2 kg | 4.2 W |
| FX2NC-32EX | Input: 32 points | — | — | 0.2 kg | 4.2 W |
| FX2NC-16EX-D/UL | Input: 16 points | — | — | 0.15 kg | 2.2 W |
| FX2NC-16EX-DS | Input: 16 points | — | — | 0.15 kg | 2.2 W |
Common to all listed parts
| Series | MELSEC-F (FX) Series |
| Category | Input/output extension |
| Working atmosphere | Free from corrosive or flammable gas and excessive conductive dusts |
