Mitsubishi MELSEC iQ-F Series – Input/Output Module Parts
Compare Mitsubishi MELSEC iQ-F Series – Input/Output Module
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Mass (weight) | Current consumption (5 V DC) | No. of output points | Output connection type | Output type |
|---|---|---|---|---|---|

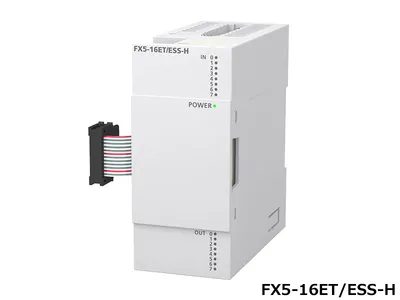

| FX5-16ET/ESS-H | Approx. 0.25 kg | 100 mA | 8 points | Screw terminal block (M3 screws) | Transistor/source output |

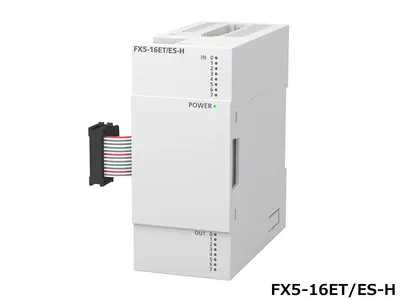

| FX5-16ET/ES-H | Approx. 0.25 kg | 100 mA | 8 points | Screw terminal block (M3 screws) | Transistor/sink output |
| FX5-C32ET/DSS-TS | Approx. 0.15 kg | 120 mA | 16 points | Spring clamp terminal block | Transistor/source output |

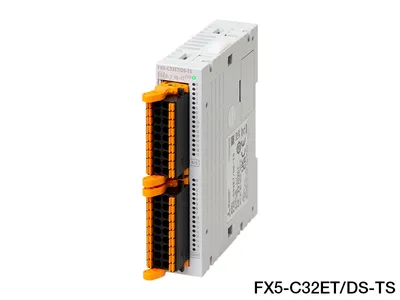

| FX5-C32ET/DS-TS | Approx. 0.15 kg | 120 mA | 16 points | Spring clamp terminal block | Transistor/sink output |

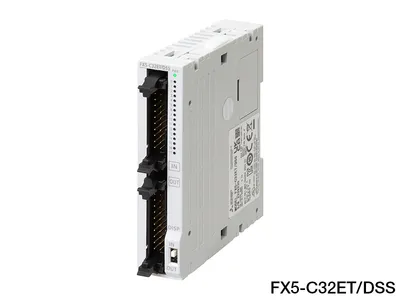

| FX5-C32ET/DSS | Approx. 0.15 kg | 120 mA | 16 points | Connector | Transistor/source output |

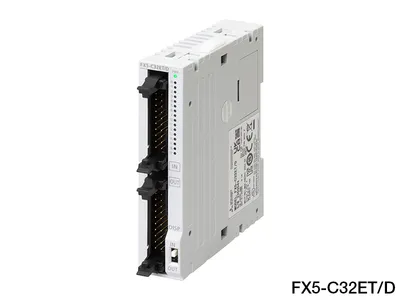

| FX5-C32ET/D | Approx. 0.15 kg | 120 mA | 16 points | Connector | Transistor/sink output |
| FX5-16ET/ESS | Approx. 0.25 kg | 100 mA | 8 points | Screw terminal block (M3 screws) | Transistor/source output |

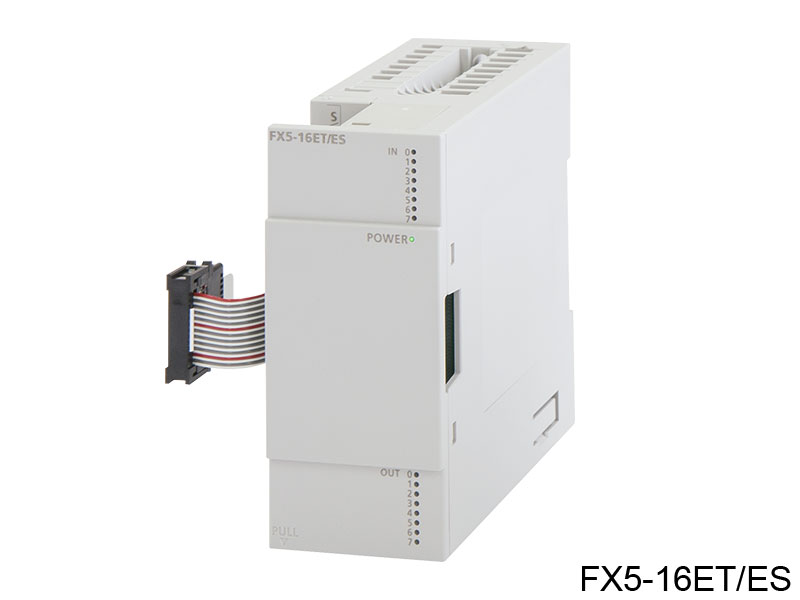

| FX5-16ET/ES | Approx. 0.25 kg | 100 mA | 8 points | Screw terminal block (M3 screws) | Transistor/sink output |
| FX5-16ER/ES | Approx. 0.25 kg | 100 mA | 8 points | Screw terminal block (M3 screws) | Relay output |
| FX5-C32EYT/DSS-TS | Approx. 0.15 kg | 120 mA | 32 points | Spring clamp terminal block | Transistor/source output |

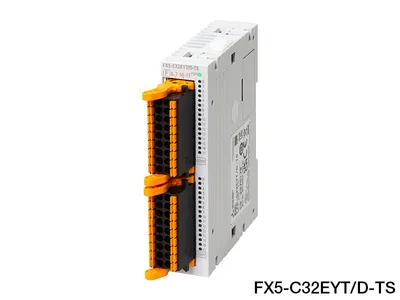

| FX5-C32EYT/D-TS | Approx. 0.15 kg | 120 mA | 32 points | Spring clamp terminal block | Transistor/sink output |

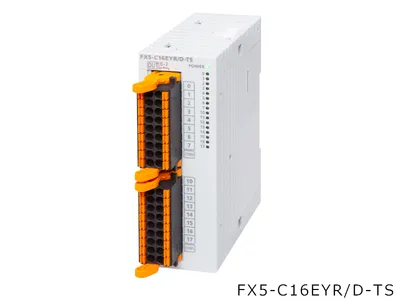

| FX5-C16EYR/D-TS | Approx. 0.20 kg | 100 mA | 16 points | Spring clamp terminal block | Relay output |

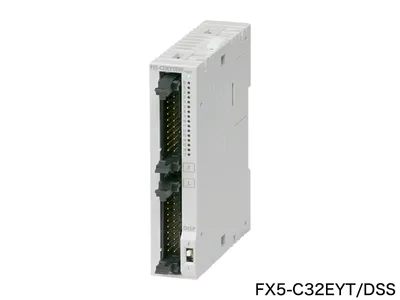

| FX5-C32EYT/DSS | Approx. 0.15 kg | 120 mA | 32 points | Connector | Transistor/source output |
| FX5-C16EYT/DSS | Approx. 0.1 kg | 100 mA | 16 points | Connector | Transistor/source output |
| FX5-C32EYT/D | Approx. 0.15 kg | 120 mA | 32 points | Connector | Transistor/sink output |

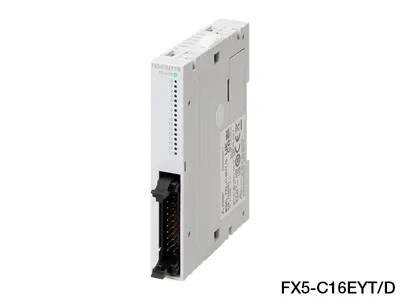

| FX5-C16EYT/D | Approx. 0.1 kg | 100 mA | 16 points | Connector | Transistor/sink output |

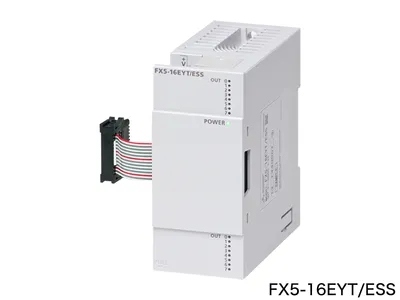

| FX5-16EYT/ESS | Approx. 0.25 kg | 100 mA | 16 points | Screw terminal block (M3 screws) | Transistor/source output |

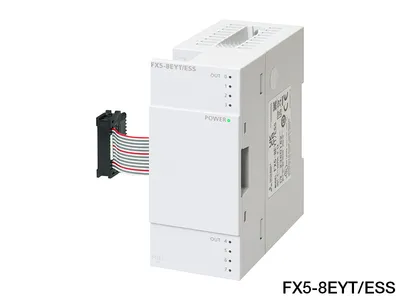

| FX5-8EYT/ESS | Approx. 0.2 kg | 75 mA | 8 points | Screw terminal block (M3 screws) | Transistor/source output |

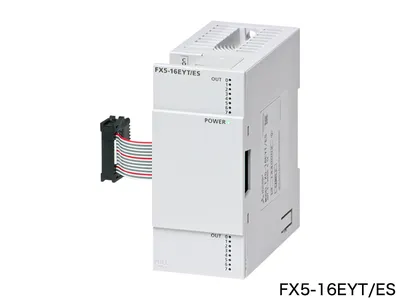

| FX5-16EYT/ES | Approx. 0.25 kg | 100 mA | 16 points | Screw terminal block (M3 screws) | Transistor/sink output |
| FX5-8EYT/ES | Approx. 0.2 kg | 75 mA | 8 points | Screw terminal block (M3 screws) | Transistor/sink output |

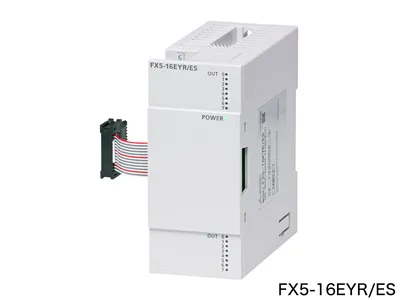

| FX5-16EYR/ES | Approx. 0.25 kg | 100 mA | 16 points | Screw terminal block (M3 screws) | Relay output |

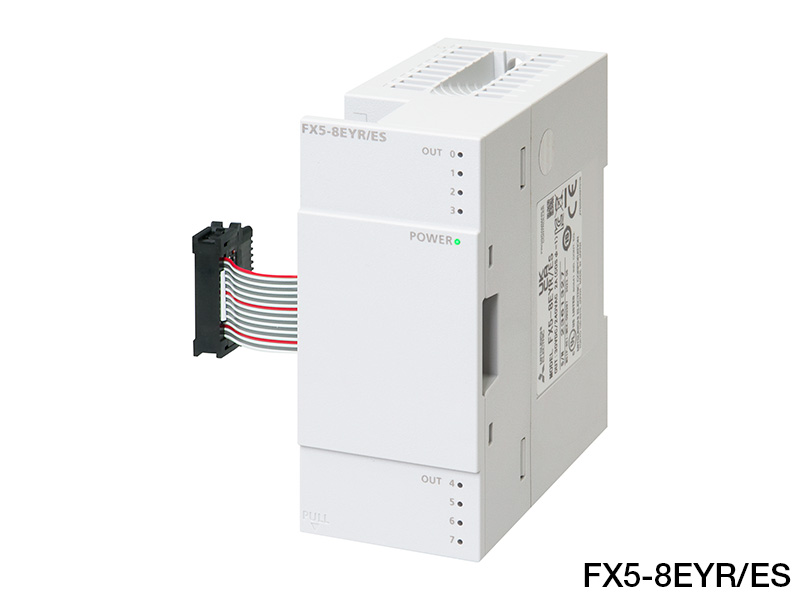

| FX5-8EYR/ES | Approx. 0.2 kg | 75 mA | 8 points | Screw terminal block (M3 screws) | Relay output |

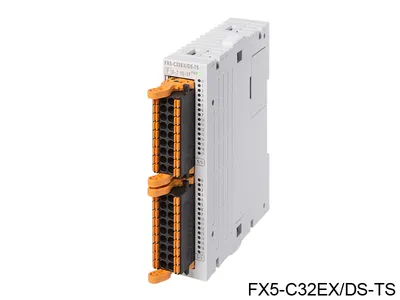

| FX5-C32EX/DS-TS | Approx. 0.15 kg | 120 mA | — | — | — |

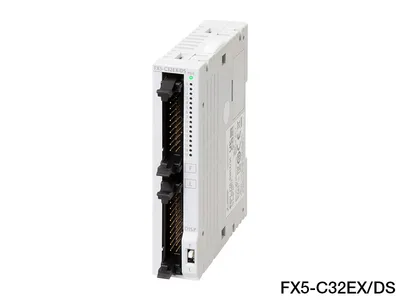

| FX5-C32EX/DS | Approx. 0.15 kg | 120 mA | — | — | — |
Common to all listed parts
| Series | MELSEC iQ-F Series |
| Category | Input/Output Module |
