Mitsubishi MELSEC-L Series – Analog Parts

Mitsubishi Electric

Mitsubishi MELSEC-L Series Temperature control

Mitsubishi Electric

Mitsubishi MELSEC-L Series Temperature control

Mitsubishi Electric

Mitsubishi MELSEC-L Series Temperature control

Mitsubishi Electric

Mitsubishi MELSEC-L Series Temperature control

Mitsubishi Electric

Mitsubishi MELSEC-L Series Temperature input

Mitsubishi Electric

Mitsubishi MELSEC-L Series Analog I/O

Mitsubishi Electric

Mitsubishi MELSEC-L Series Analog output

Mitsubishi Electric

Mitsubishi MELSEC-L Series Analog output

Mitsubishi Electric

Mitsubishi MELSEC-L Series Analog output

Mitsubishi Electric

Mitsubishi MELSEC-L Series Analog input

Mitsubishi Electric

Mitsubishi MELSEC-L Series Analog input

Mitsubishi Electric

Mitsubishi MELSEC-L Series Analog input

Mitsubishi Electric

Mitsubishi MELSEC-L Series Analog input

Mitsubishi Electric

Mitsubishi MELSEC-L Series Multiple input

Compare Mitsubishi MELSEC-L Series – Analog

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Category	Type	External interface	Internal current consumption (5 V DC)	Weight

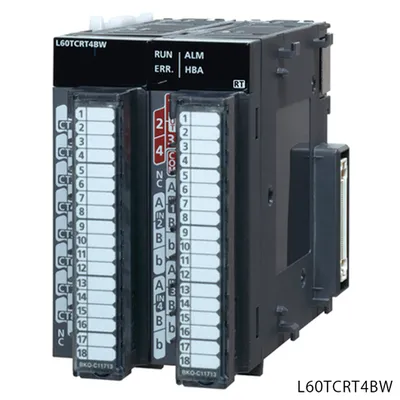

L60TCRT4BW	Temperature control	RTD input	18-point terminal block (M3 screw) × 2	0.35 A	0.33 kg

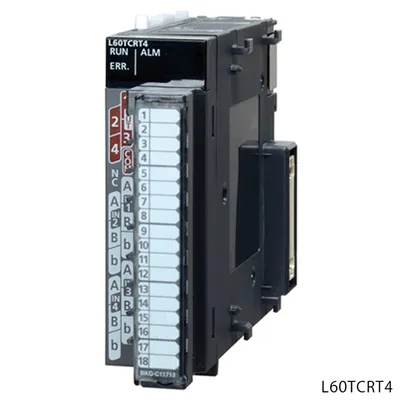

L60TCRT4	Temperature control	RTD input	18-point terminal block (M3 screw)	0.31 A	0.18 kg

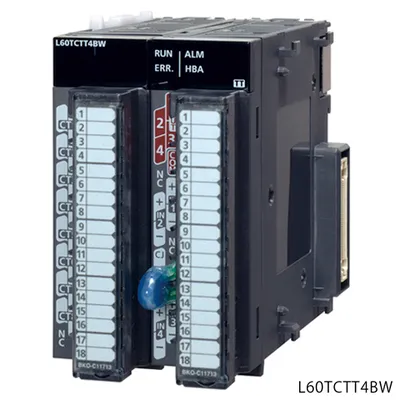

L60TCTT4BW	Temperature control	Thermocouple input	18-point terminal block (M3 screw) × 2	0.33 A	0.33 kg

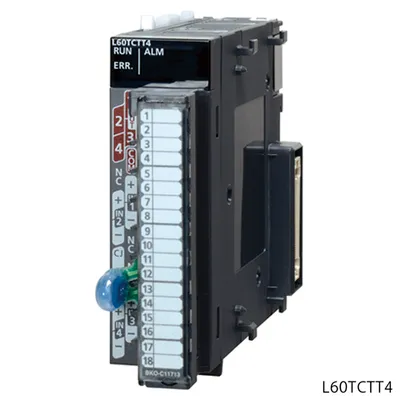

L60TCTT4	Temperature control	Thermocouple input	18-point terminal block (M3 screw)	0.30 A	0.18 kg

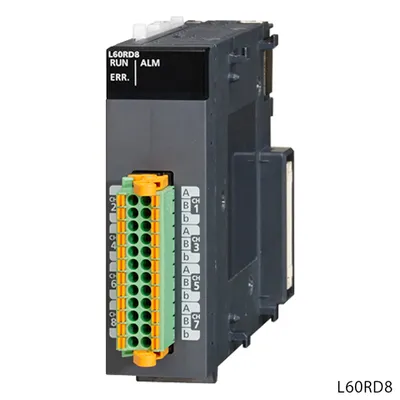

L60RD8	Temperature input	RTD input	24-point spring clamp terminal block	0.22 A	0.15 kg

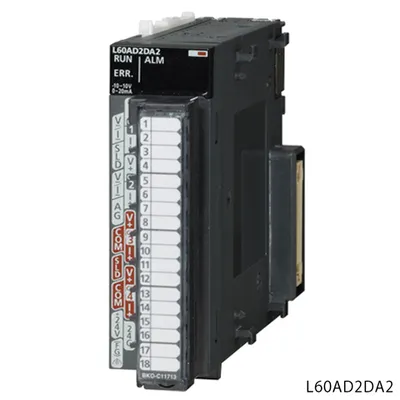

L60AD2DA2	Analog I/O	—	18-point terminal block (M3 screw)	0.17 A	0.22 kg

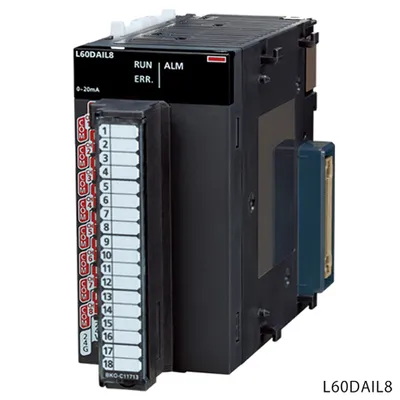

L60DAIL8	Analog output	Current input	18-point terminal block (M3 screw)	0.15 A	0.22 kg

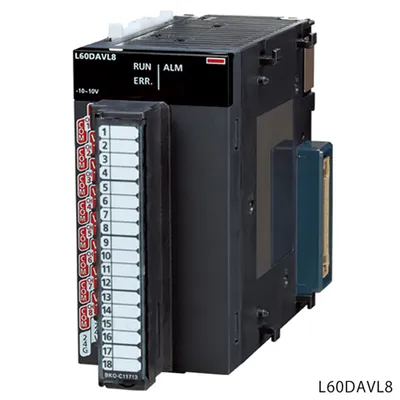

L60DAVL8	Analog output	Voltage input	18-point terminal block (M3 screw)	0.15 A	0.22 kg
L60DA4	Analog output	Voltage/current output	18-point terminal block (M3 screw)	0.16 A	0.20 kg

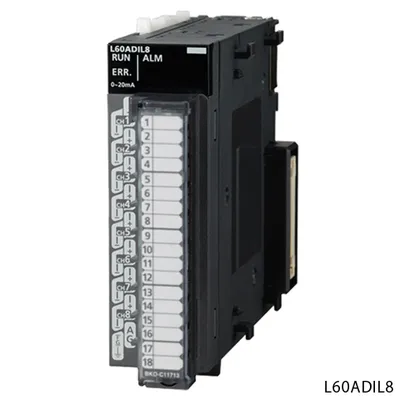

L60ADIL8	Analog input	Current input	18-point terminal block (M3 screw)	0.21 A	0.19 kg

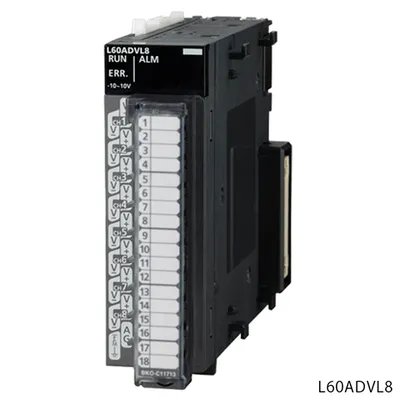

L60ADVL8	Analog input	Voltage input	18-point terminal block (M3 screw)	0.20 A	0.19 kg

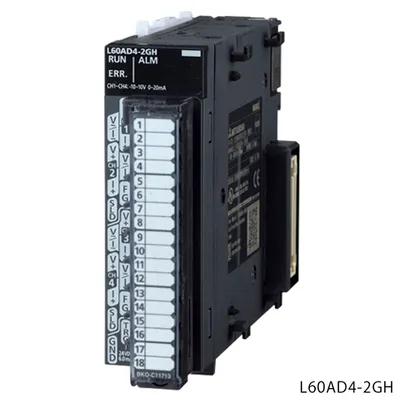

L60AD4-2GH	Analog input	Voltage/current input	18-point terminal block (M3 screw)	0.76 A	0.20 kg

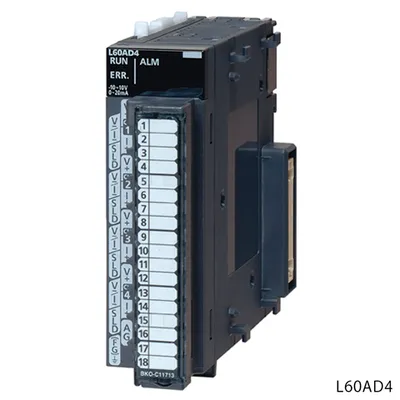

L60AD4	Analog input	Voltage/current input	18-point terminal block (M3 screw)	0.52 A	0.19 kg

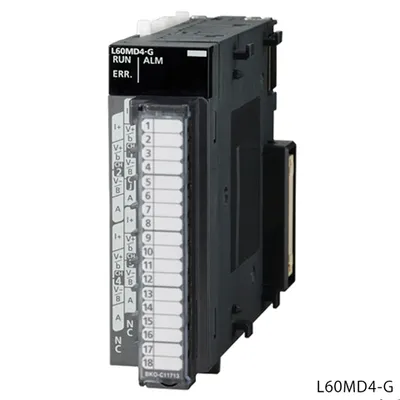

L60MD4-G	Multiple input	—	18-point terminal block (M3 screw)	0.49 A	0.19 kg

Series	MELSEC-L Series
Number of occupied I/O points	16 points (I/O assignment: Intelligent 16 points)
External dimensions: Height	90 mm
General specifications	Refer to the general specifications of the CPU module or remote head module.
