Mitsubishi MELSEC-L Series – I/O Parts
Compare Mitsubishi MELSEC-L Series – I/O
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Category | Output type | Number of output points | Internal current consumption (5 V DC) | Weight |
|---|---|---|---|---|---|
| LH42C4PT1P | I/O | Transistor output (source type) | 32 points | 150 mA | 0.12 kg |

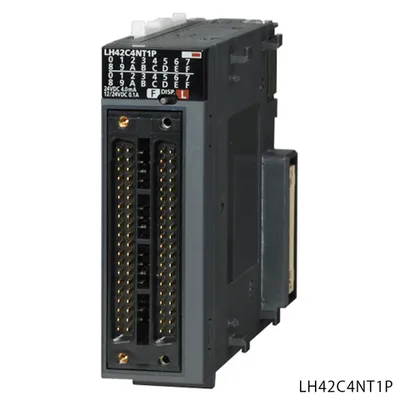

| LH42C4NT1P | I/O | Transistor output (sink type) | 32 points | 160 mA | 0.12 kg |

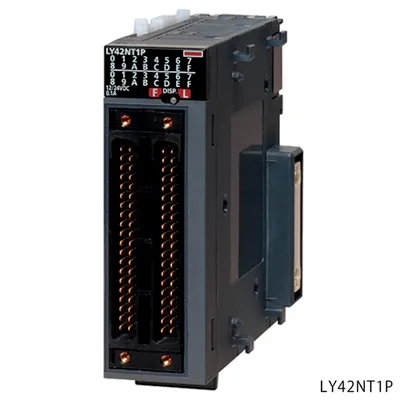

| LY42PT1P | Output | Transistor output (source type) | 64 points | 190 mA | 0.12 kg |
| LY41PT1P | Output | Transistor output (source type) | 32 points | 140 mA | 0.11 kg |
| LY40PT5P | Output | Transistor output (source type) | 16 points | 100 mA | 0.15 kg |
| LY42NT1P | Output | Transistor output (sink type) | 64 points | 190 mA | 0.12 kg |

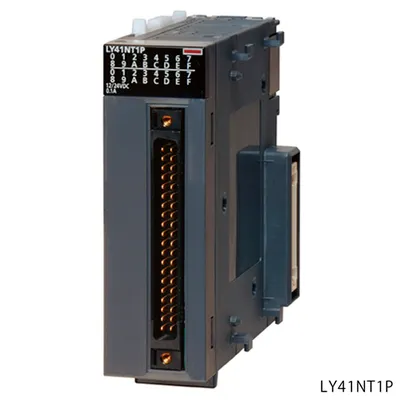

| LY41NT1P | Output | Transistor output (sink type) | 32 points | 140 mA | 0.11 kg |

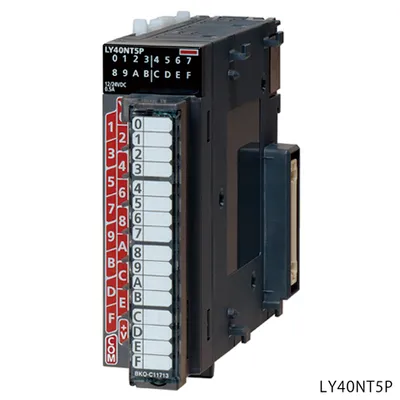

| LY40NT5P | Output | Transistor output (sink type) | 16 points | 100 mA | 0.15 kg |

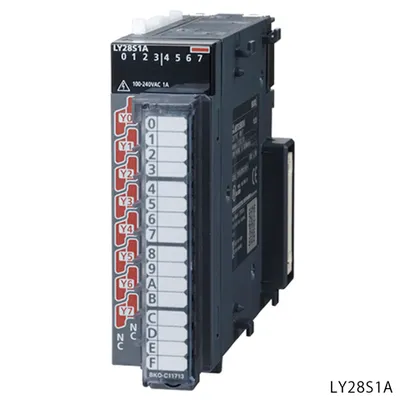

| LY28S1A | Output | TRIAC output | 8 points | 200 mA (TYP. all points ON) | 0.19 kg |
| LY20S6 | Output | TRIAC output | 16 points | 300 mA (TYP. all points ON) | 0.22 kg |

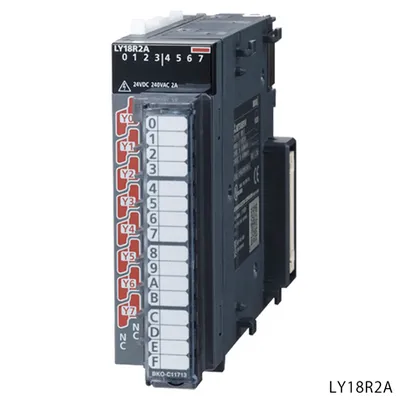

| LY18R2A | Output | Contact output | 8 points | 260 mA | 0.18 kg |
| LY10R2 | Output | Contact output | 16 points | 460 mA | 0.21 kg |

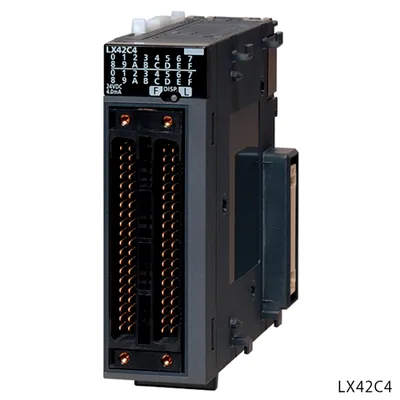

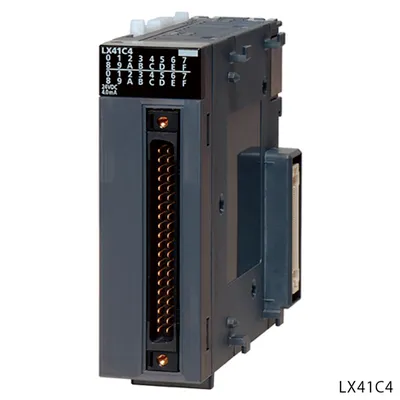

| LX42C4 | Input | — | — | 120 mA | 0.12 kg |
| LX41C4 | Input | — | — | 100 mA | 0.11 kg |

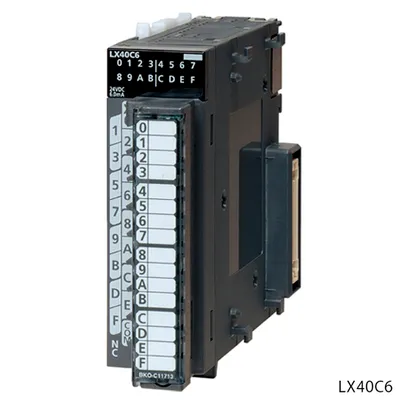

| LX40C6 | Input | — | — | 90 mA | 0.15 kg |

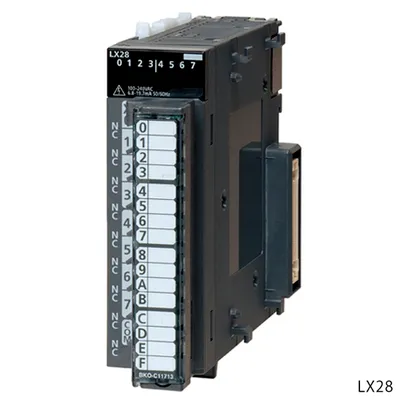

| LX28 | Input | — | — | 80 mA (TYP. all points ON) | 0.15 kg |
| LX10 | Input | — | — | 90 mA (TYP. all points ON) | 0.17 kg |
Common to all listed parts
| Series | MELSEC-L Series |
| Insulation resistance | 10 MΩ or higher by insulation resistance tester |
| External dimensions: Height | 90 mm |
| External dimensions: Width | 28.5 mm |
| General specifications | Refer to the general specifications of the CPU module or remote head module. |
