Mitsubishi MELSEC-L Series – CPU Parts
Compare Mitsubishi MELSEC-L Series – CPU
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Processing speed: Sequence instruction: LD X0 | Processing speed: Sequence instruction: MOV D0 D1 | Program capacity | Memory capacity: Program memory (drive 0) | Memory capacity: Standard ROM (drive 4) |
|---|---|---|---|---|---|

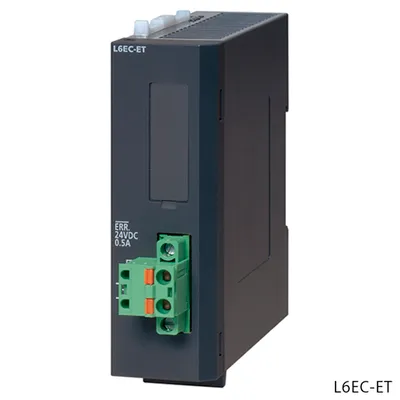

| L6EC-ET | — | — | — | — | — |

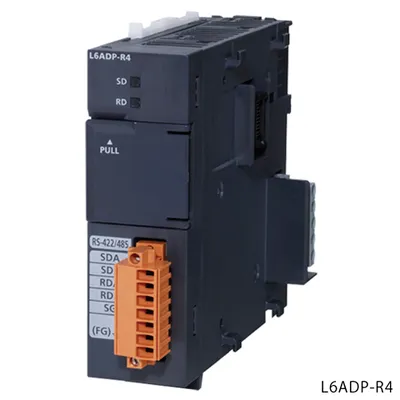

| L6ADP-R4 | — | — | — | — | — |

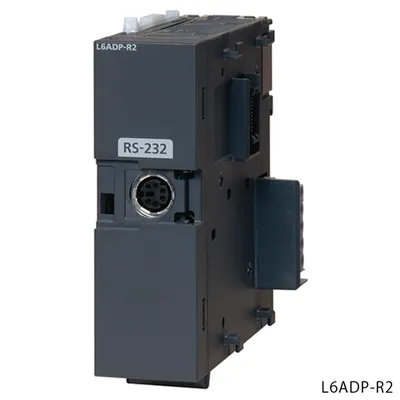

| L6ADP-R2 | — | — | — | — | — |

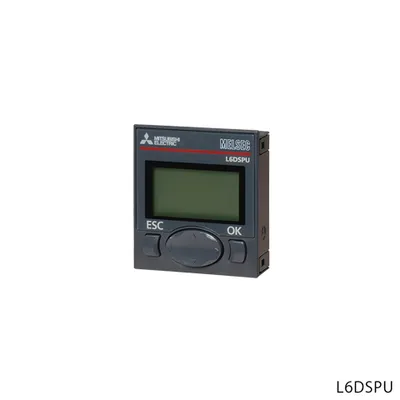

| L6DSPU | — | — | — | — | — |
| L26CPU-PBT | 9.5 ns | 19 ns | 260K steps (1040K bytes) | 1040K bytes | 2048K bytes |
| L26CPU-BT | 9.5 ns | 19 ns | 260K steps (1040K bytes) | 1040K bytes | 2048K bytes |
| L26CPU-P | 9.5 ns | 19 ns | 260K steps (1040K bytes) | 1040K bytes | 2048K bytes |

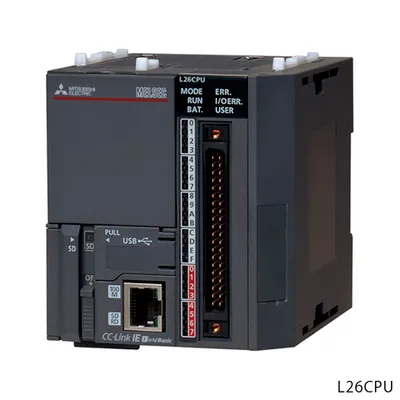

| L26CPU | 9.5 ns | 19 ns | 260K steps (1040K bytes) | 1040K bytes | 2048K bytes |
| L06CPU-P | 9.5 ns | 19 ns | 60K steps (240K bytes) | 240K bytes | 1024K bytes |
| L06CPU | 9.5 ns | 19 ns | 60K steps (240K bytes) | 240K bytes | 1024K bytes |
| L02CPU-P | 40 ns | 80 ns | 20K steps (80K bytes) | 80K bytes | 512K bytes |
| L02CPU | 40 ns | 80 ns | 20K steps (80K bytes) | 80K bytes | 512K bytes |
| L02SCPU-P | 60 ns | 120 ns | 20K steps (80K bytes) | 80K bytes | 512K bytes |

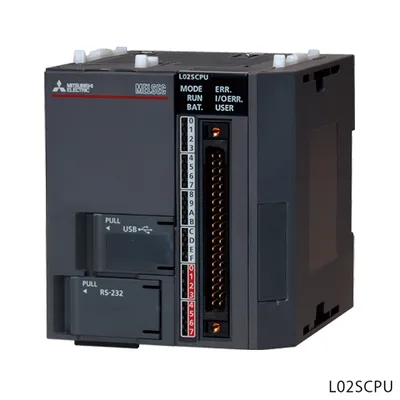

| L02SCPU | 60 ns | 120 ns | 20K steps (80K bytes) | 80K bytes | 512K bytes |
Common to all listed parts
| Series | MELSEC-L Series |
