Mitsubishi MELSEC iQ-R Series – Information/network Parts
Compare Mitsubishi MELSEC iQ-R Series – Information/network
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Category | Internal current consumption (5 V DC) | External dimensions: Width | External dimensions: Depth | Weight |
|---|---|---|---|---|---|

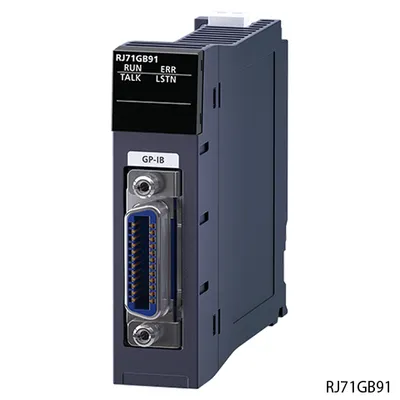

| RJ71GB91 | GP-IB interface | 0.28 A | 27.8 mm | 110 mm | 0.17 kg |

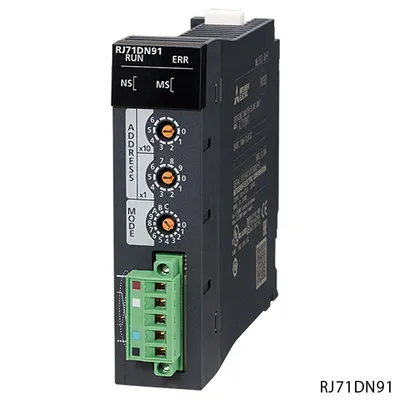

| RJ71DN91 | DeviceNet | 0.30 A | 27.8 mm | 118.5 mm | 0.15 kg |

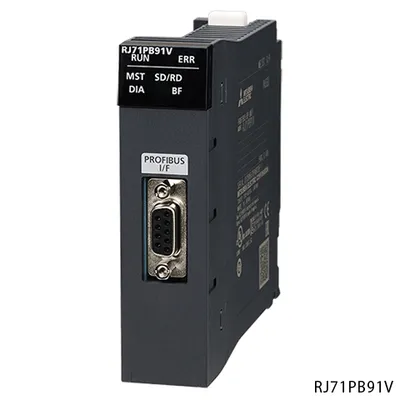

| RJ71PB91V | PROFIBUS-DP | 0.42 A | 27.8 mm | 110 mm | 0.16 kg |

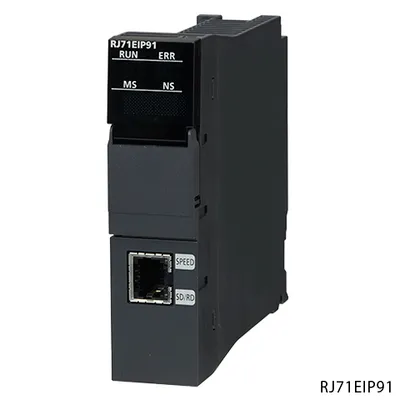

| RJ71EIP91 | EtherNet/IP | 1.09 A | 27.8 mm | 110 mm | 0.24 kg |

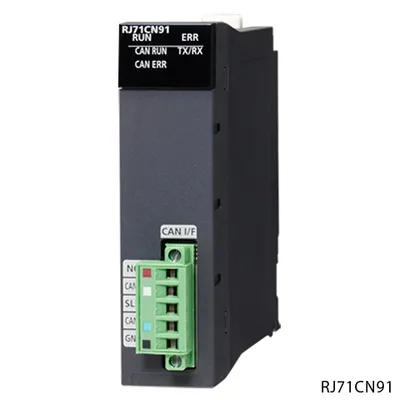

| RJ71CN91 | CANopen | 0.33 A | 27.8 mm | 118.5 mm | 0.14 kg |

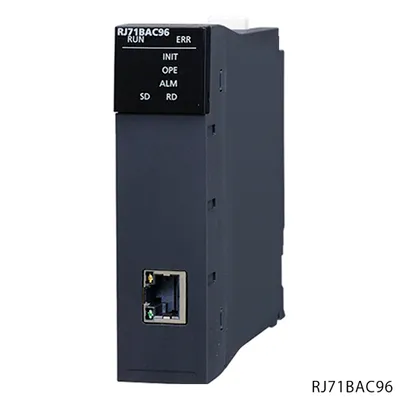

| RJ71BAC96 | BACnet | 0.61 A | 27.8 mm | 110 mm | 0.19 kg |

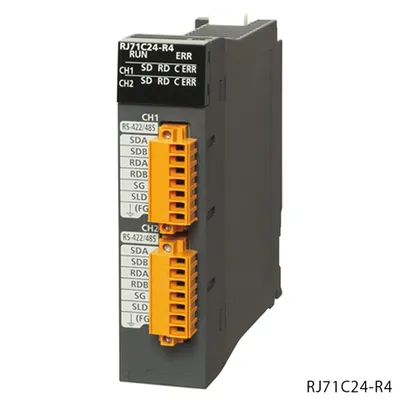

| RJ71C24-R4 | MODBUS | 0.42 A | 27.8 mm | 110 mm | 0.13 kg |

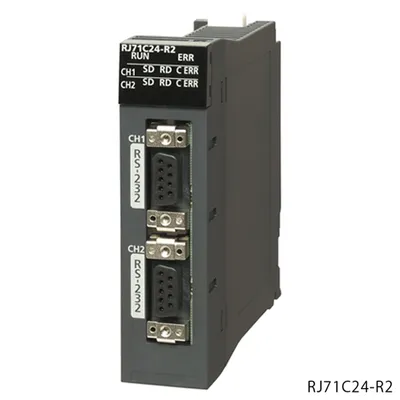

| RJ71C24-R2 | MODBUS | 0.20 A | 27.8 mm | 110 mm | 0.14 kg |

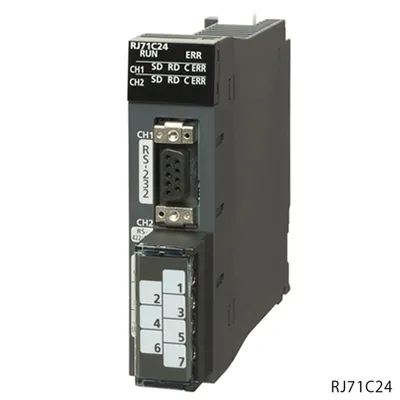

| RJ71C24 | MODBUS | 0.31 A | 27.8 mm | 110 mm | 0.16 kg |

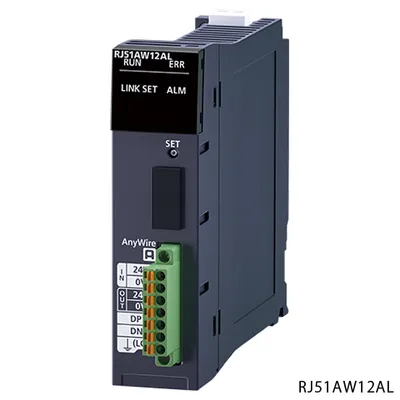

| RJ51AW12AL | AnyWireASLINK | 0.2 A | 106 mm (base unit mounting side: 98 mm) | 27.8 mm | 124 mm |

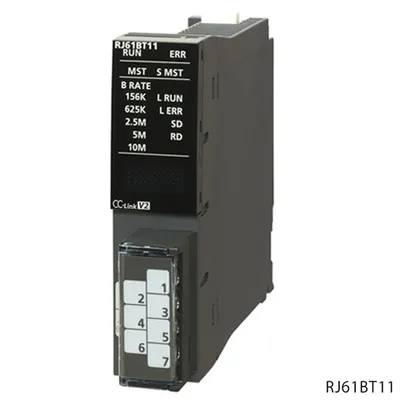

| RJ61BT11 | CC-Link | 0.34 A | 27.8 mm | 131 mm | 0.16 kg |

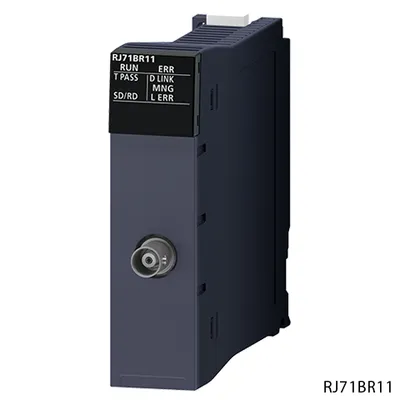

| RJ71BR11 | MELSECNET/H | 0.62 A | 27.8 mm | 110 mm | 0.14 kg |

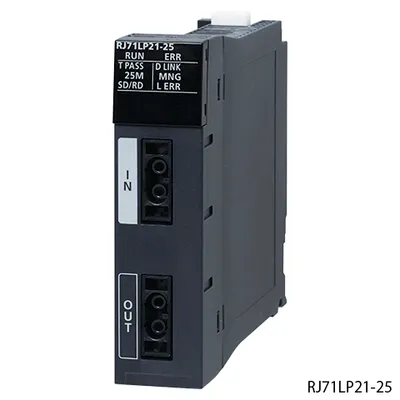

| RJ71LP21-25 | MELSECNET/H | 0.48 A | 27.8 mm | 110 mm | 0.15 kg |

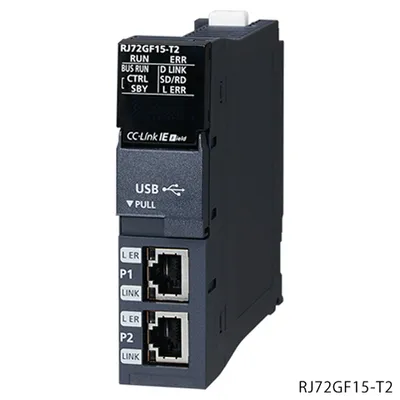

| RJ72GF15-T2 | CC-Link IE Field | 0.75 A | 27.8 mm | 110 mm | 0.20 kg |

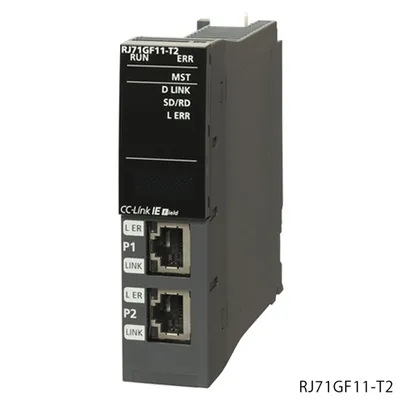

| RJ71GF11-T2 | CC-Link IE Field | 0.82 A | 27.8 mm | 110 mm | 0.17 kg |

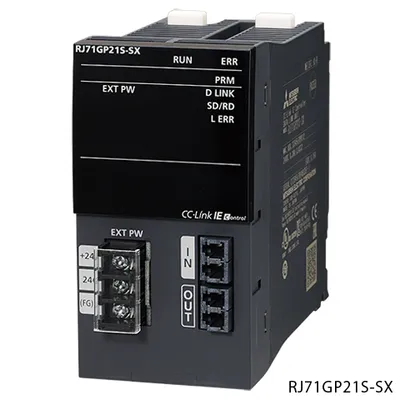

| RJ71GP21S-SX | CC-Link IE Control | 0.95 A | 56 mm | 110 mm | 0.26 kg |

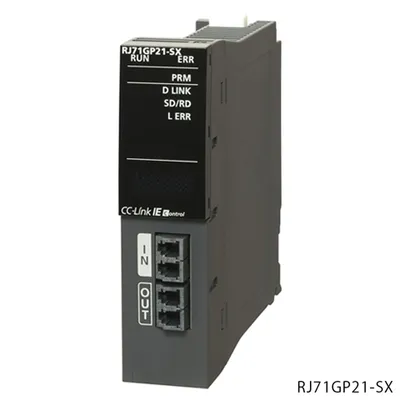

| RJ71GP21-SX | CC-Link IE Control | 0.88 A | 27.8 mm | 110 mm | 0.18 kg |

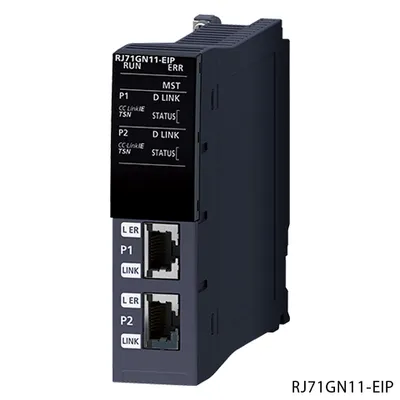

| RJ71GN11-EIP | CC-Link IE TSN | 1.54 A | 27.8 mm | 110 mm | 0.26 kg |

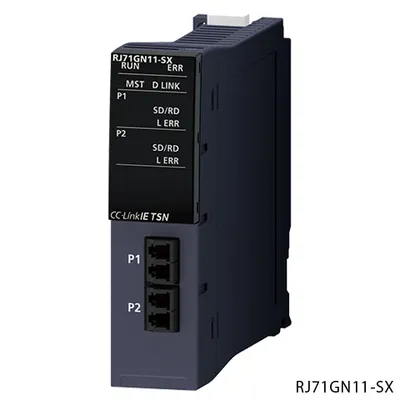

| RJ71GN11-SX | CC-Link IE TSN | 0.80 A | 27.8 mm | 110 mm | 0.17 kg |

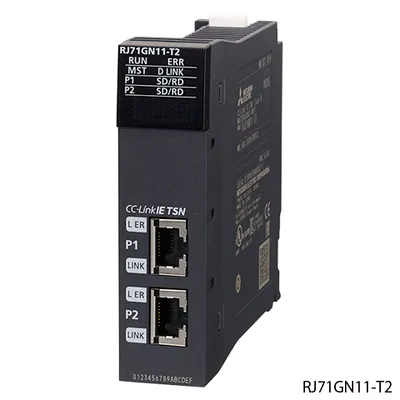

| RJ71GN11-T2 | CC-Link IE TSN | 0.81 A | 27.8 mm | 110 mm | 0.2 kg |

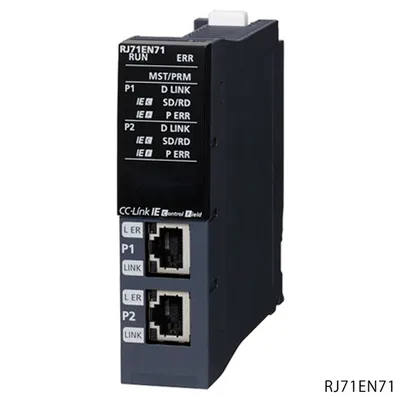

| RJ71EN71 | Ethernet | 0.82 A | 27.8 mm | 110 mm | 0.17 kg |

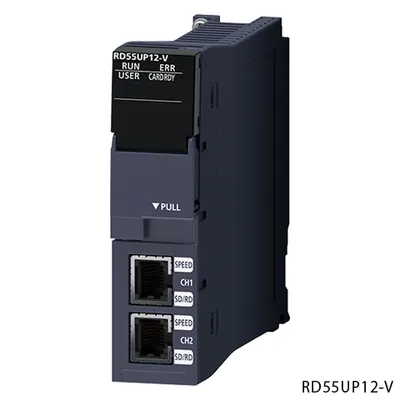

| RD55UP12-V | C intelligent function | 1.10 A | 27.8 mm | 110 mm | 0.24 kg |

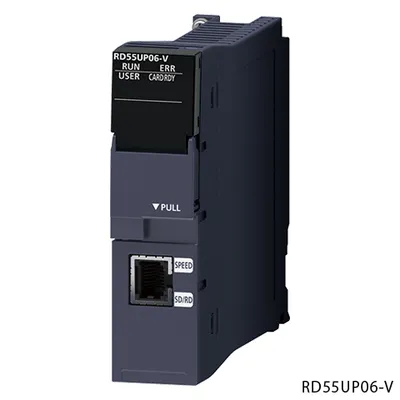

| RD55UP06-V | C intelligent function | 1.09 A | 27.8 mm | 110 mm | 0.24 kg |

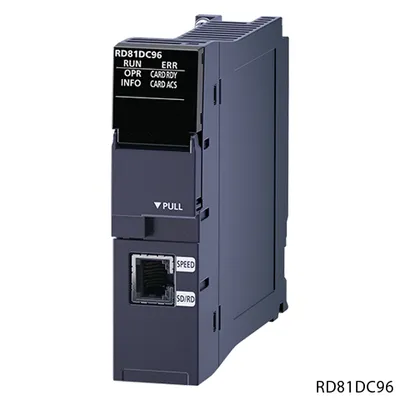

| RD81DC96 | High speed data communication | 1.1 A | 27.8 mm | 110 mm | 0.24 kg |
Common to all listed parts
| Series | MELSEC iQ-R Series |
