Mitsubishi MELSEC iQ-R Series – Motion/positioning Parts
Compare Mitsubishi MELSEC iQ-R Series – Motion/positioning
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Category | Type | Servo amplifier connection method | 5 V DC internal current consumption [A] | Mass [kg] |
|---|---|---|---|---|---|

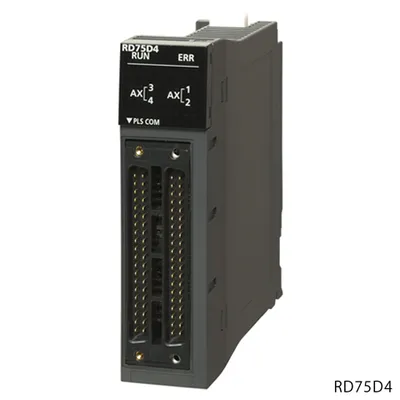

| RD75D4 | Positioning | Differential driver output | — | — | — |
| RD75D2 | Positioning | Differential driver output | — | — | — |
| RD75P4 | Positioning | Transistor output | — | — | — |

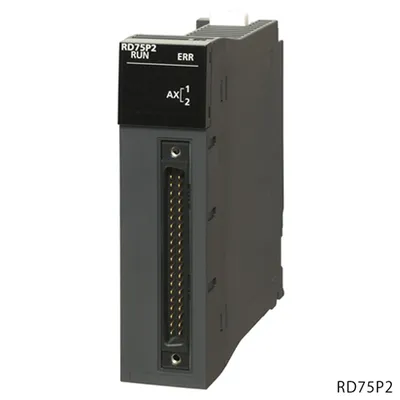

| RD75P2 | Positioning | Transistor output | — | — | — |

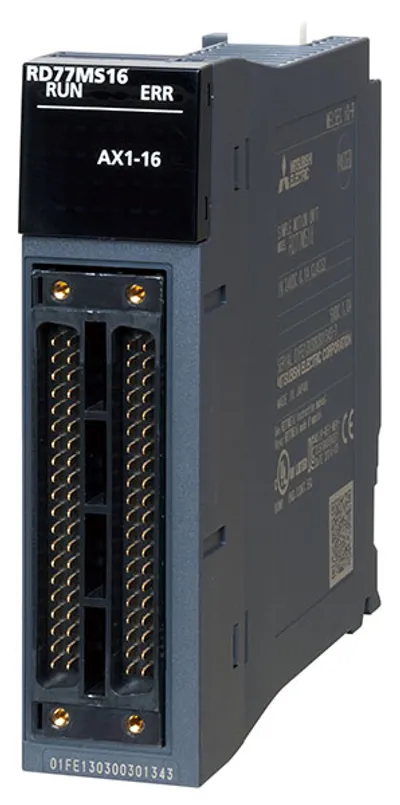

| RD77MS16 | Simple motion | SSCNETⅢ/H-compatible | SSCNET III/H | 1.0 | 0.23 |

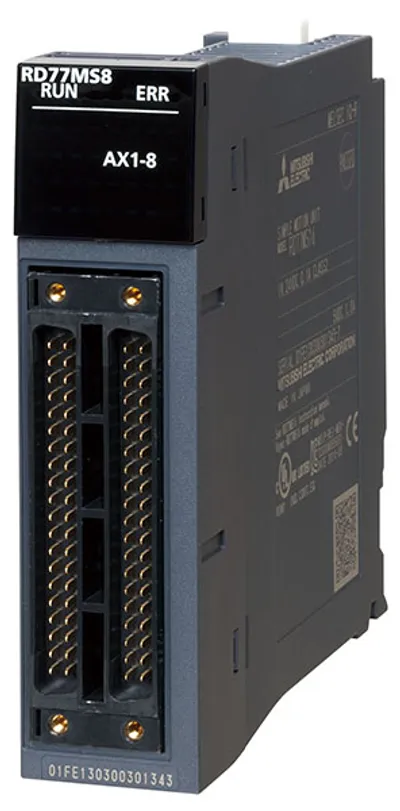

| RD77MS8 | Simple motion | SSCNETⅢ/H-compatible | SSCNET III/H | 1.0 | 0.23 |

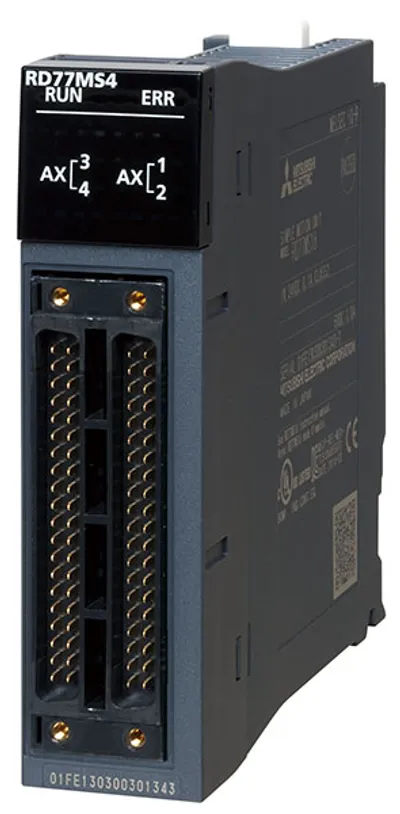

| RD77MS4 | Simple motion | SSCNETⅢ/H-compatible | SSCNET III/H | 1.0 | 0.23 |

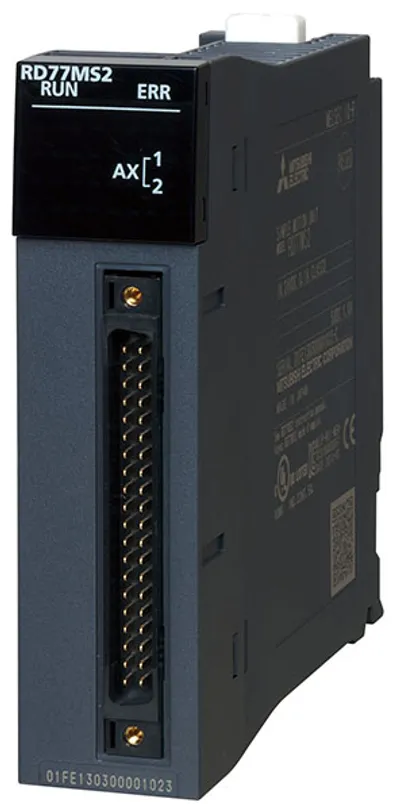

| RD77MS2 | Simple motion | SSCNETⅢ/H-compatible | SSCNET III/H | 1.0 | 0.22 |
| RD77GF32 | Simple motion | CC-Link IE Field Network-compatible | CC-Link IE Field | 1.1 | 0.23 |

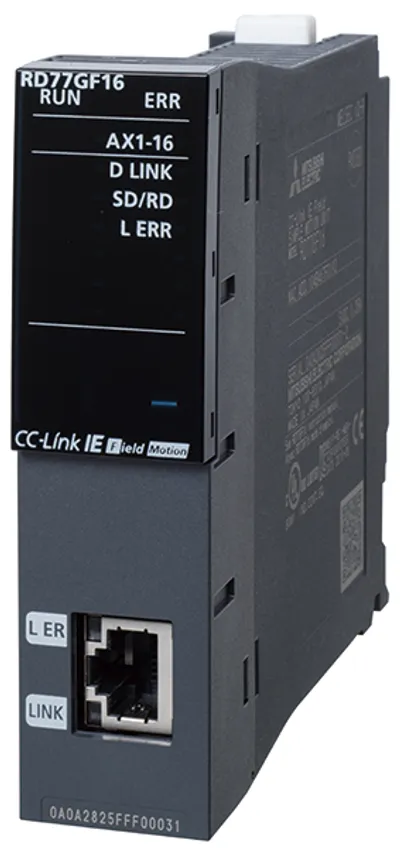

| RD77GF16 | Simple motion | CC-Link IE Field Network-compatible | CC-Link IE Field | 1.1 | 0.23 |
| RD77GF8 | Simple motion | CC-Link IE Field Network-compatible | CC-Link IE Field | 1.1 | 0.23 |
| RD77GF4 | Simple motion | CC-Link IE Field Network-compatible | CC-Link IE Field | 1.1 | 0.23 |

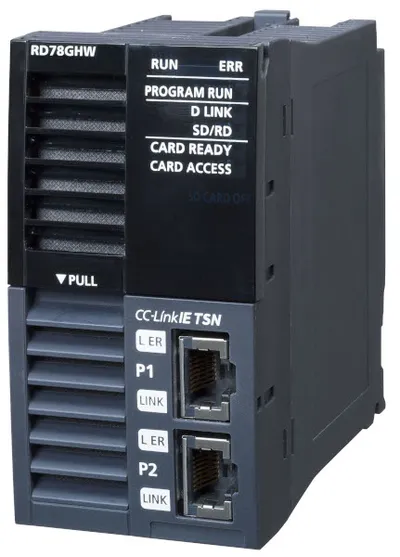

| RD78GHW | Motion | CC-Link IE TSN-compatible | CC-Link IE TSN | 2.33 | 0.44 |
| RD78GHV | Motion | CC-Link IE TSN-compatible | CC-Link IE TSN | 2.33 | 0.44 |
| RD78G64 | Motion | CC-Link IE TSN-compatible | CC-Link IE TSN | 1.93 | 0.26 |
| RD78G32 | Motion | CC-Link IE TSN-compatible | CC-Link IE TSN | 1.93 | 0.26 |
| RD78G16 | Motion | CC-Link IE TSN-compatible | CC-Link IE TSN | 1.93 | 0.26 |
| RD78G8 | Motion | CC-Link IE TSN-compatible | CC-Link IE TSN | 1.93 | 0.26 |

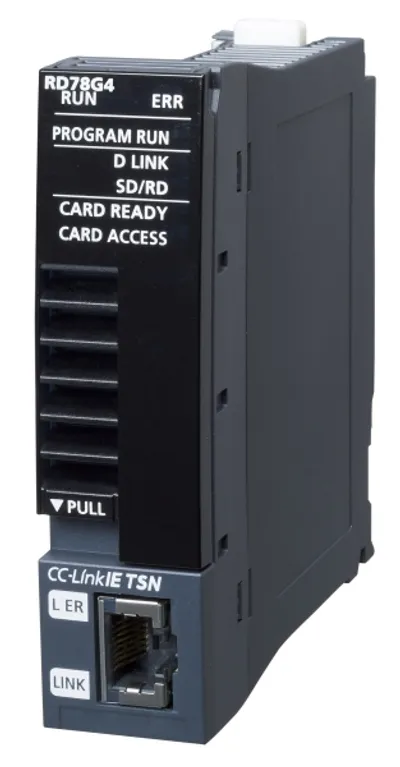

| RD78G4 | Motion | CC-Link IE TSN-compatible | CC-Link IE TSN | 1.93 | 0.26 |
Common to all listed parts
| Series | MELSEC iQ-R Series |
