Mitsubishi MELSEC iQ-R Series – I/O Parts

Mitsubishi Electric

RH42C4NT2P

Mitsubishi MELSEC iQ-R Series I/O

Mitsubishi Electric

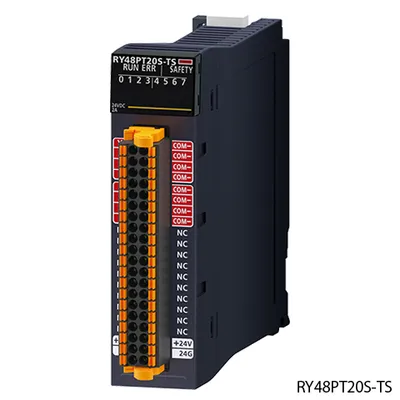

RY48PT20S-TS

Mitsubishi MELSEC iQ-R Series Output

Mitsubishi Electric

RY40PT5B

Mitsubishi MELSEC iQ-R Series Output

Mitsubishi Electric

RY41PT2H

Mitsubishi MELSEC iQ-R Series Output

Mitsubishi Electric

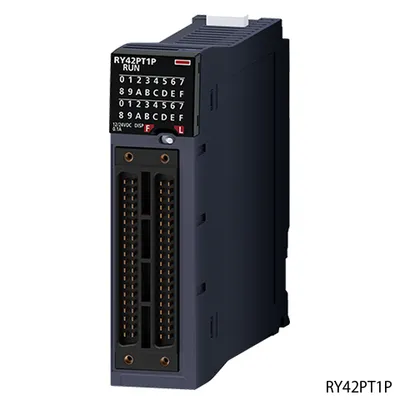

RY42PT1P

Mitsubishi MELSEC iQ-R Series Output

Mitsubishi Electric

RY41PT1P-TS

Mitsubishi MELSEC iQ-R Series Output

Mitsubishi Electric

RY41PT1P

Mitsubishi MELSEC iQ-R Series Output

Mitsubishi Electric

RY40PT5P-TS

Mitsubishi MELSEC iQ-R Series Output

Mitsubishi Electric

RY40PT5P

Mitsubishi MELSEC iQ-R Series Output

Mitsubishi Electric

RY41NT2H

Mitsubishi MELSEC iQ-R Series Output

Mitsubishi Electric

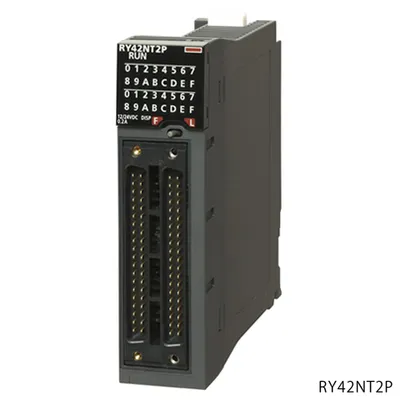

RY42NT2P

Mitsubishi MELSEC iQ-R Series Output

Mitsubishi Electric

RY41NT2P-TS

Mitsubishi MELSEC iQ-R Series Output

Mitsubishi Electric

RY41NT2P

Mitsubishi MELSEC iQ-R Series Output

Mitsubishi Electric

RY40NT5P-TS

Mitsubishi MELSEC iQ-R Series Output

Mitsubishi Electric

RY40NT5P

Mitsubishi MELSEC iQ-R Series Output

Mitsubishi Electric

RY20S6

Mitsubishi MELSEC iQ-R Series Output

Mitsubishi Electric

RY18R2A

Mitsubishi MELSEC iQ-R Series Output

Mitsubishi Electric

RY10R2-TS

Mitsubishi MELSEC iQ-R Series Output

Mitsubishi Electric

RY10R2

Mitsubishi MELSEC iQ-R Series Output

Mitsubishi Electric

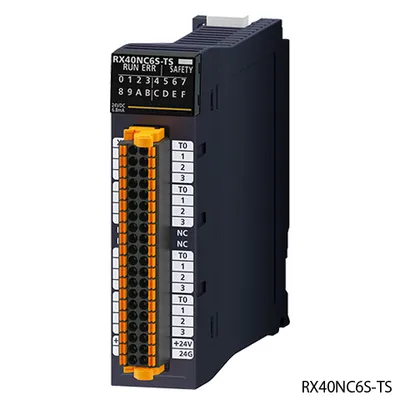

RX40NC6S-TS

Mitsubishi MELSEC iQ-R Series Input

Mitsubishi Electric

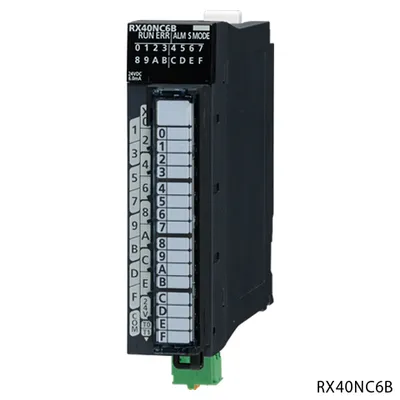

RX40NC6B

Mitsubishi MELSEC iQ-R Series Input

Mitsubishi Electric

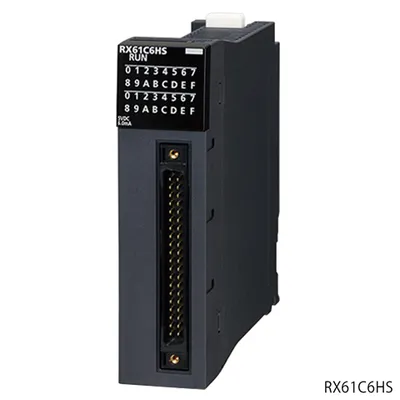

RX61C6HS

Mitsubishi MELSEC iQ-R Series Input

Mitsubishi Electric

RX41C6HS

Mitsubishi MELSEC iQ-R Series Input

Mitsubishi Electric

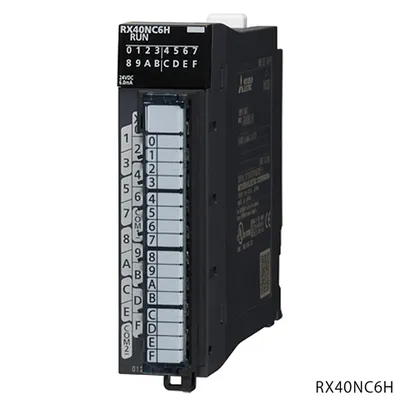

RX40NC6H

Mitsubishi MELSEC iQ-R Series Input

Compare Mitsubishi MELSEC iQ-R Series – I/O

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Output type	Maximum load current	Output common terminal arrangement	Internal current consumption (5 V DC)	Weight
RH42C4NT2P	Transistor output (sink type)	0.2 A/point, Pilot Duty, 2 A/common	32 points/common	220 mA	0.13 kg
RY48PT20S-TS	—	2 A/point, 16 A/common	8 points/common	250 mA (TYP. all points ON)	0.21 kg
RY40PT5B	Transistor output (source type)	0.5 A/point, 5 A/common	16 points/common	190 mA (TYP. all points ON)	0.24 kg
RY41PT2H	Transistor output (source type)	0.2 A/point, 2 A/common	32 points/common	410 mA (TYP. all points ON)	0.12 kg
RY42PT1P	Transistor output (source type)	0.1 A/point, Pilot Duty, 2 A/common	32 points/common	290 mA (TYP. all points ON)	0.13 kg
RY41PT1P-TS	Transistor output (source type)	0.1 A/point, Pilot Duty, 2 A/common	32 points/common	190 mA (TYP. all points ON)	0.13 kg
RY41PT1P	Transistor output (source type)	0.1 A/point, Pilot Duty, 2 A/common	32 points/common	190 mA (TYP. all points ON)	0.11 kg
RY40PT5P-TS	Transistor output (source type)	0.5 A/point, Pilot Duty, 5 A/common	16 points/common	130 mA	0.12 kg
RY40PT5P	Transistor output (source type)	0.5 A/point, Pilot Duty, 5 A/common	16 points/common	130 mA (TYP. all points ON)	0.16 kg
RY41NT2H	Transistor output (sink type)	0.2 A/point, 2 A/common	32 points/common	420 mA (TYP. all points ON)	0.12 kg
RY42NT2P	Transistor output (sink type)	0.2 A/point, Pilot Duty, 2 A/common	32 points/common	250 mA (TYP. all points ON)	0.13 kg
RY41NT2P-TS	Transistor output (sink type)	0.2 A/point, Pilot Duty, 2 A/common	32 points/common	180 mA (TYP. all points ON)	0.13 kg
RY41NT2P	Transistor output (sink type)	0.2 A/point, Pilot Duty, 2 A/common	32 points/common	180 mA (TYP. all points ON)	0.11 kg
RY40NT5P-TS	Transistor output (sink type)	0.5 A/point, Pilot Duty, 5 A/common	16 points/common	140 mA (TYP. all points ON)	0.12 kg
RY40NT5P	Transistor output (sink type)	0.5 A/point, Pilot Duty, 5 A/common	16 points/common	140 mA (TYP. all points ON)	0.16 kg
RY20S6	TRIAC output	0.6 A/point, 4.8 A/common	16 points/common	280 mA (TYP. all points ON)	0.24 kg
RY18R2A	Contact output	—	All points independent	260 mA (TYP. all points ON)	0.19 kg
RY10R2-TS	Contact output	—	16 points/common	450 mA (TYP. all points ON)	0.19 kg
RY10R2	Contact output	—	16 points/common	450 mA (TYP. all points ON)	0.22 kg
RX40NC6S-TS	—	—	—	260 mA (TYP. all points ON)	0.21 kg
RX40NC6B	—	—	—	450 mA	0.25 kg
RX61C6HS	—	—	—	150 mA	0.12 kg
RX41C6HS	—	—	—	150 mA	0.12 kg
RX40NC6H	—	—	—	100 mA	0.16 kg

Common to all listed parts

Series	MELSEC iQ-R Series
Insulation resistance	10 MΩ or higher by insulation resistance tester
External dimensions: Width	27.8 mm
