Mitsubishi MELSEC iQ-R Series – Base Parts
Compare Mitsubishi MELSEC iQ-R Series – Base
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Category | External dimensions: Width | Weight | Number of mountable I/O modules | Internal current consumption (5 V DC) |
|---|---|---|---|---|---|

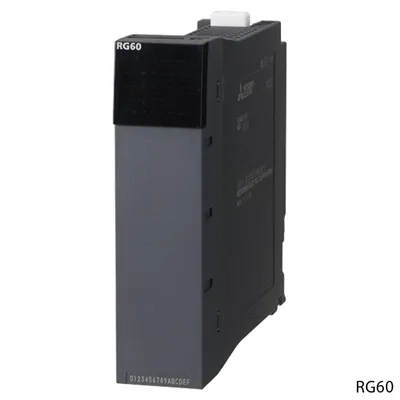

| RG60 | Option | 27.8 mm | 0.08 kg | — | — |
| RC100B | Extension cable | — | 1.2 kg | — | — |
| RC50B | Extension cable | — | 0.60 kg | — | — |
| RC30B | Extension cable | — | 0.40 kg | — | — |
| RC12B | Extension cable | — | 0.22 kg | — | — |
| RC06B | Extension cable | — | 0.15 kg | — | — |

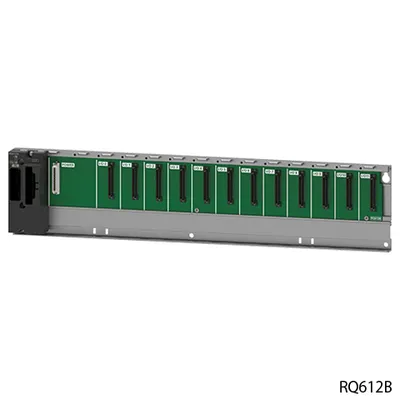

| RQ612B | Extension base | 439 mm | 0.55 kg | 12 | 0.32 A |

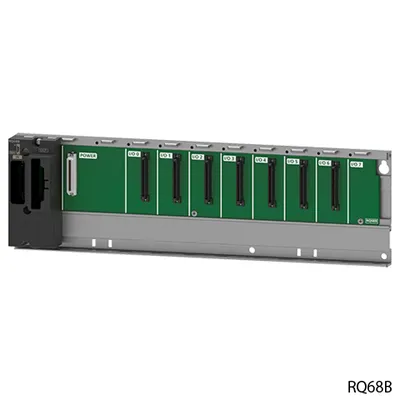

| RQ68B | Extension base | 328 mm | 0.41 kg | 8 | 0.31 A |

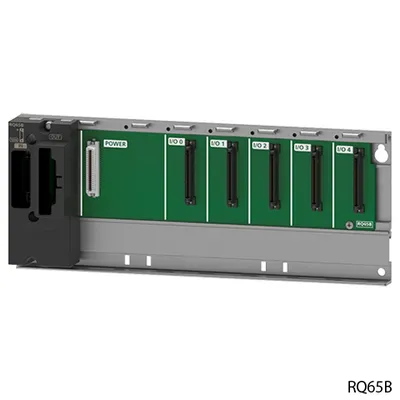

| RQ65B | Extension base | 245 mm | 0.32 kg | 5 | 0.28 A |
| R66WRB-HT | Extension base | 439 mm | 0.76 kg | 6 | 1.35 A |
| R68RB-HT | Extension base | 439 mm | 0.72 kg | 8 | 0.93 A |

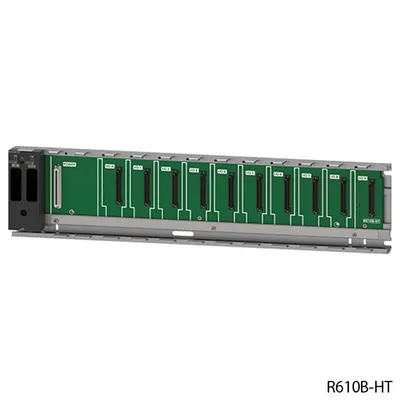

| R610B-HT | Extension base | 439 mm | 0.72 kg | 10 | 0.85 A |
| R68WRB | Extension base | 439 mm | 0.76 kg | 8 | 1.50 A |

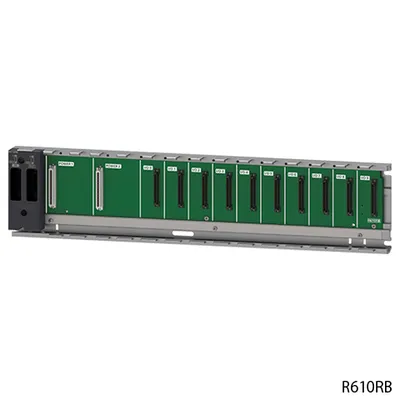

| R610RB | Extension base | 439 mm | 0.73 kg | 10 | 0.97 A |

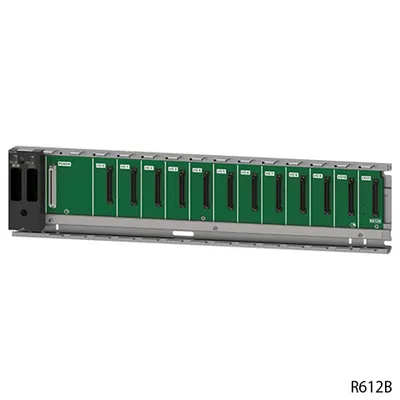

| R612B | Extension base | 439 mm | 0.73 kg | 12 | 0.92 A |
| R68B | Extension base | 328 mm | 0.55 kg | 8 | 0.81 A |
| R65B | Extension base | 245 mm | 0.41 kg | 5 | 0.70 A |
| R38RB-HT | Main base | 439 mm | 0.72 kg | 8 | 0.86 A |
| R310B-HT | Main base | 439 mm | 0.69 kg | 10 | 0.82 A |
| R310RB | Main base | 439 mm | 0.73 kg | 10 | 0.91 A |
| R35SB | Slim type main base | 198.5 mm | 0.32 kg | 5 | 0.45 A |
| R33SB | Slim type main base | 142 mm | 0.23 kg | 3 | 0.39 A |
| R32SB | Slim type main base | 114 mm | 0.18 kg | 2 | 0.35 A |
| R312B | Main base | 439 mm | 0.72 kg | 12 | 0.88 A |
Common to all listed parts
| Series | MELSEC iQ-R Series |
