Mitsubishi MELSEC iQ-R Series – CPU Parts
Compare Mitsubishi MELSEC iQ-R Series – CPU
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Category | Internal current consumption (5 V DC) | Weight | Memory capacity: Device/label memory | Memory capacity: Signal flow memory: Area for programs |
|---|---|---|---|---|---|

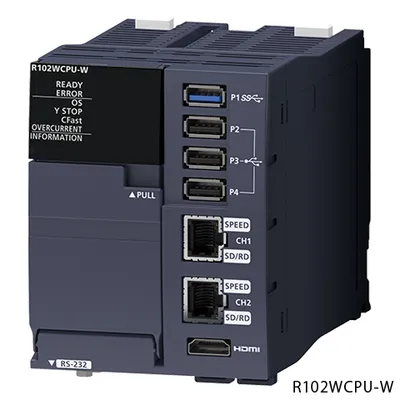

| R102WCPU-W | MELSECWinCPU | 4.4 A | 0.63 kg | — | — |

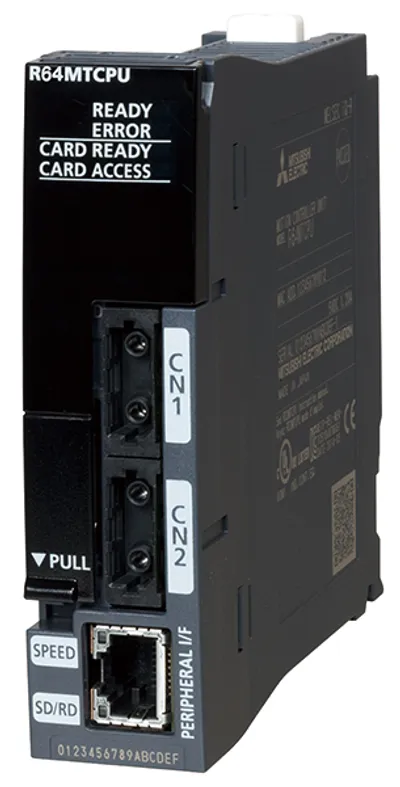

| R64MTCPU | Motion CPU | — | — | — | — |
| R32MTCPU | Motion CPU | — | — | — | — |

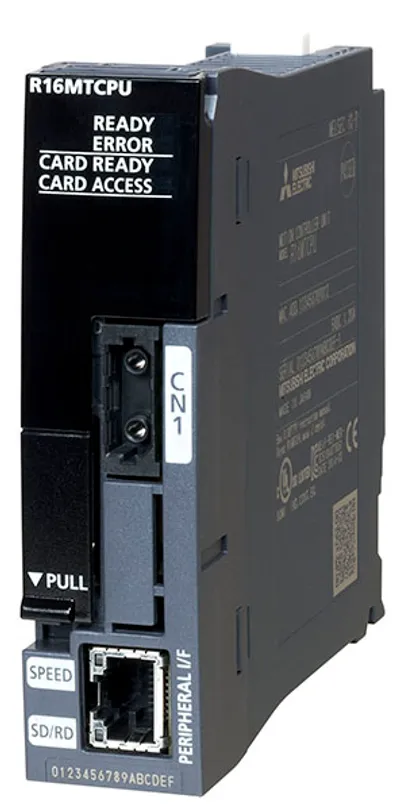

| R16MTCPU | Motion CPU | — | — | — | — |

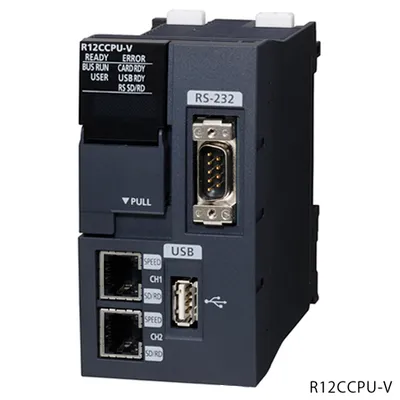

| R12CCPU-V | C Controller CPU | 1.26 A | 0.35 kg | — | — |
| R120SFCPU-SET | Safety CPU | 0.76 A | 0.20 kg | 3370K bytes | 150K bytes |
| R32SFCPU-SET | Safety CPU | 0.76 A | 0.20 kg | 2306K bytes | 40K bytes |
| R16SFCPU-SET | Safety CPU | 0.76 A | 0.20 kg | 1710K bytes | 20K bytes |
| R08SFCPU-SET | Safety CPU | 0.76 A | 0.20 kg | 1178K bytes | 10K bytes |
| R6RFM | Process CPU | 0.88 A | 0.18 kg | — | — |
| R120PSFCPU-SET | Process CPU | 0.76 A | 0.20 kg | 3370K bytes | 150K bytes |
| R32PSFCPU-SET | Process CPU | 0.76 A | 0.20 kg | 2306K bytes | 40K bytes |
| R16PSFCPU-SET | Process CPU | 0.76 A | 0.20 kg | 1710K bytes | 20K bytes |

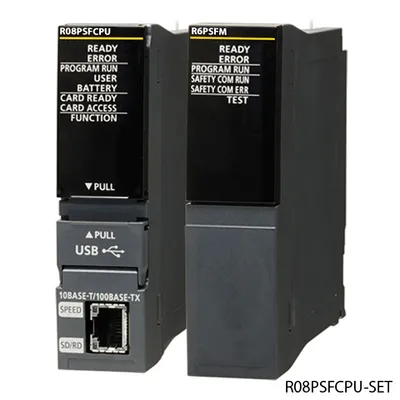

| R08PSFCPU-SET | Process CPU | 0.76 A | 0.20 kg | 1178K bytes | 10K bytes |

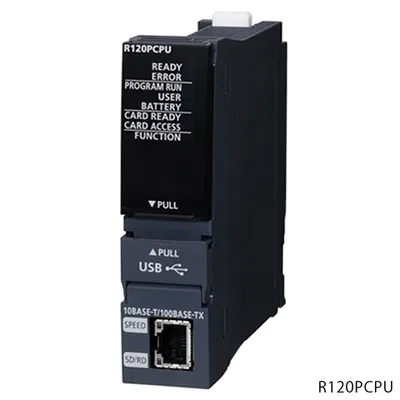

| R120PCPU | Process CPU | 0.76 A | 0.20 kg | 3380K bytes | 150K bytes |
| R32PCPU | Process CPU | 0.76 A | 0.20 kg | 2316K bytes | 40K bytes |
| R16PCPU | Process CPU | 0.76 A | 0.20 kg | 1720K bytes | 20K bytes |
| R08PCPU | Process CPU | 0.76 A | 0.20 kg | 1188K bytes | 10K bytes |

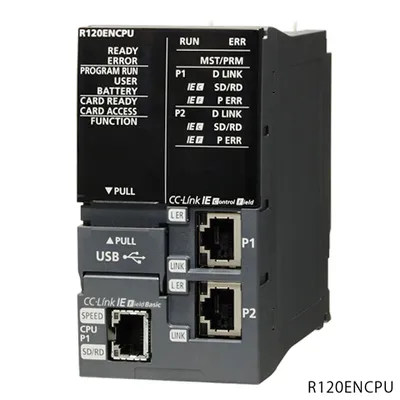

| R120ENCPU | Programmable controller CPU | 1.49 A | 0.40 kg | 3380K bytes | 150K bytes |
| R32ENCPU | Programmable controller CPU | 1.49 A | 0.40 kg | 2316K bytes | 40K bytes |
| R16ENCPU | Programmable controller CPU | 1.49 A | 0.40 kg | 1720K bytes | 20K bytes |
| R08ENCPU | Programmable controller CPU | 1.49 A | 0.40 kg | 1188K bytes | 10K bytes |
| R04ENCPU | Programmable controller CPU | 1.49 A | 0.40 kg | 400K bytes | 5K bytes |

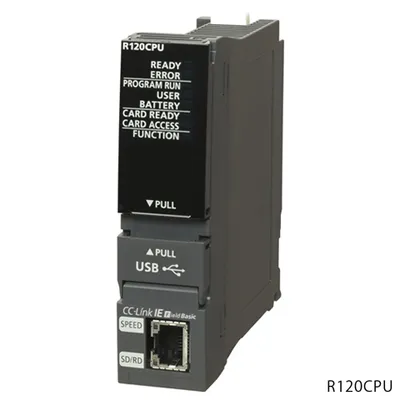

| R120CPU | Programmable controller CPU | 0.67 A | 0.20 kg | 3380K bytes | 150K bytes |
Common to all listed parts
| Series | MELSEC iQ-R Series |
