Mitsubishi MELSEC-Q Series – Simple motion/positioning Parts
Compare Mitsubishi MELSEC-Q Series – Simple motion/positioning
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type | No. of control axes | Internal current consumption (5 V DC) | Weight | Subtype |
|---|---|---|---|---|---|

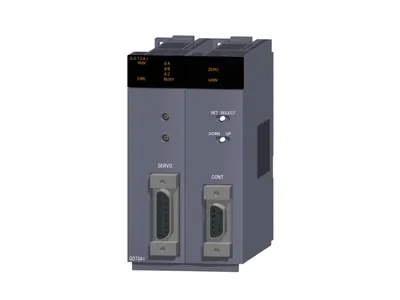

| QD73A1 | Analog output type | 1 axis | 0.52 A | 0.20 kg | — |
| QD72P3C3 | Built-in counter function type | 3 axes | 0.57 A | 0.16 kg | Open collector output |
| QD74MH16 | Simple control and fast-response type | — | — | — | SSCNETⅢ |

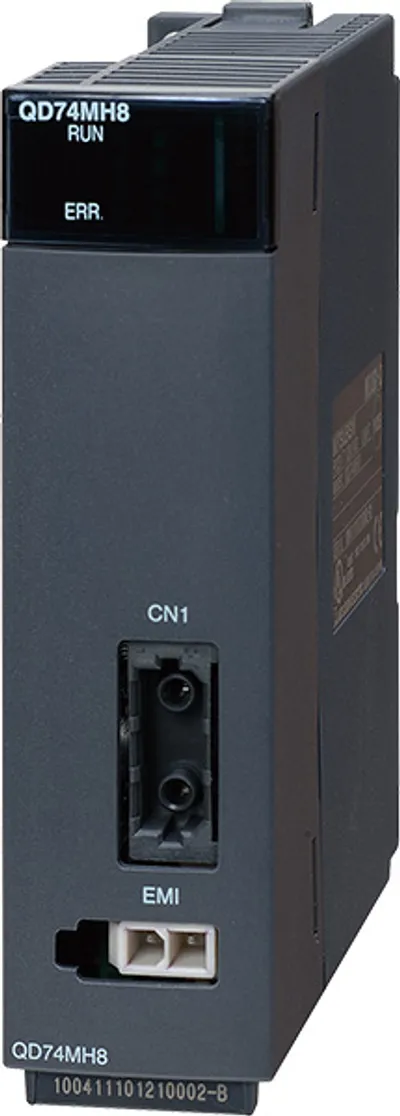

| QD74MH8 | Simple control and fast-response type | — | — | — | SSCNETⅢ |

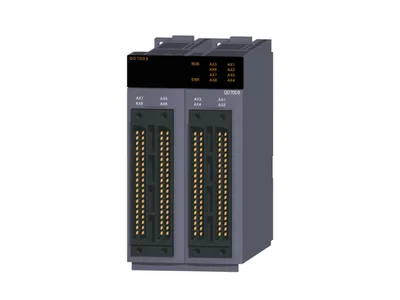

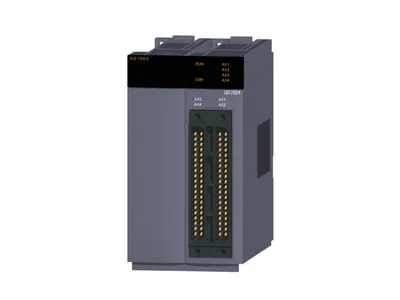

| QD70D8 | Simple control and fast-response type | 8 axes | 2.16 A | 0.23 kg | Differential output |
| QD70D4 | Simple control and fast-response type | 4 axes | 1.16 A | 0.17 kg | Differential output |
| QD70P8 | Simple control and fast-response type | 8 axes | 0.74 A | 0.17 kg | Open collector output |
| QD70P4 | Simple control and fast-response type | 4 axes | 0.55 A | 0.15 kg | Open collector output |

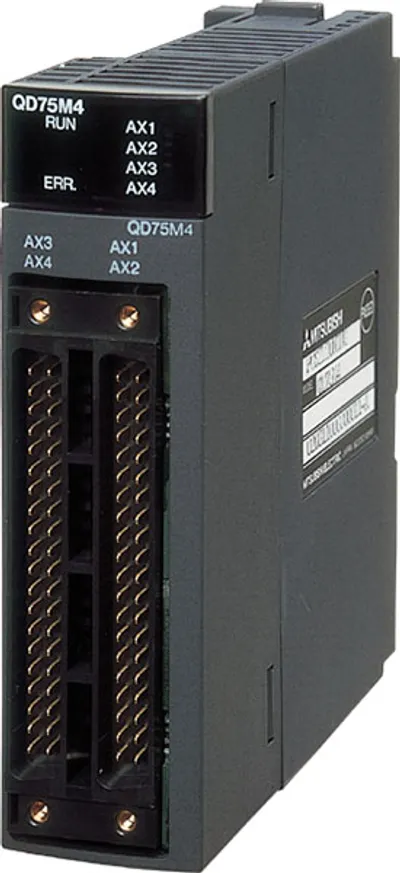

| QD75M4 | Specialized functionality type | — | — | — | SSCNET |

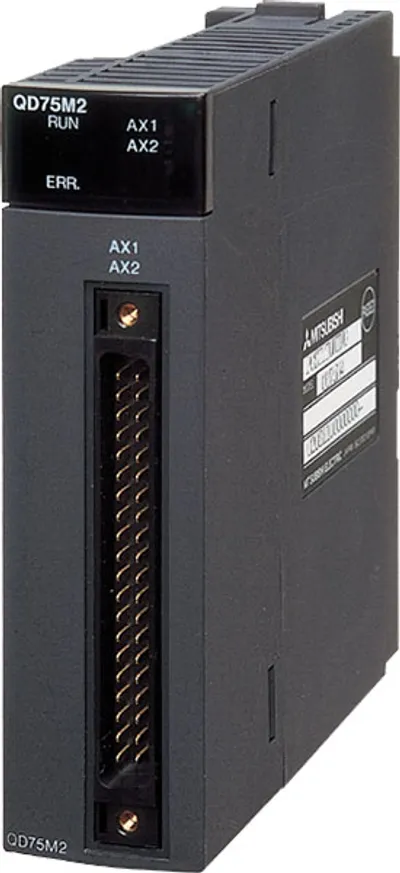

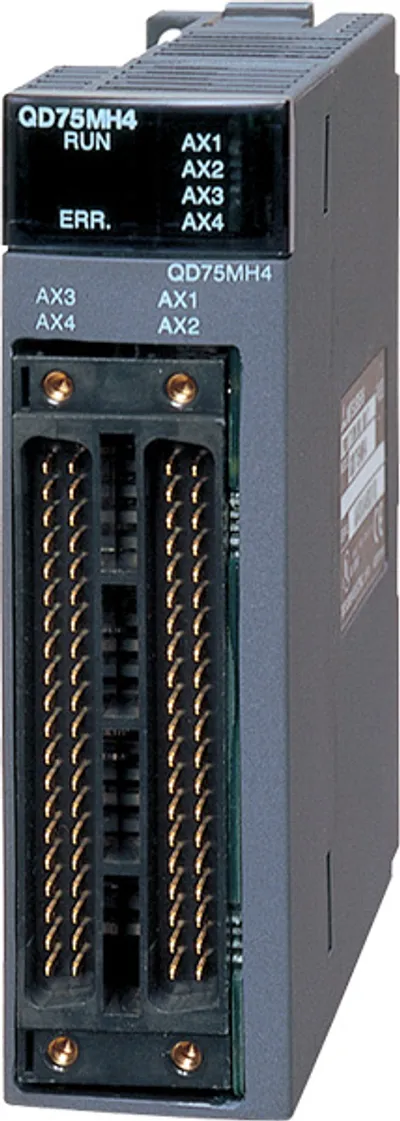

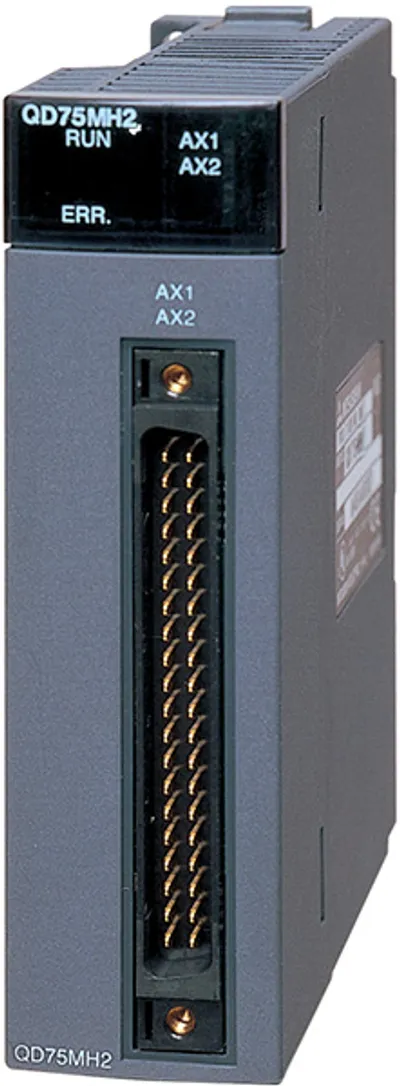

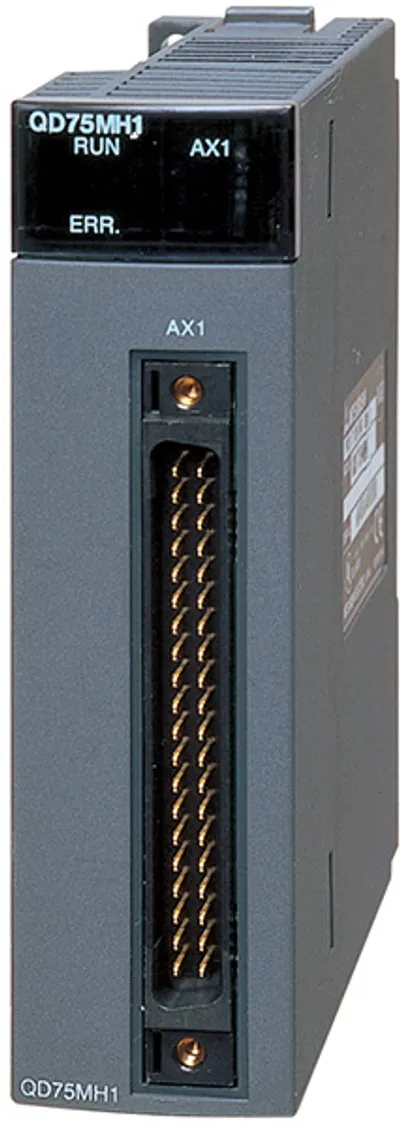

| QD75M2 | Specialized functionality type | — | — | — | SSCNET |
| QD75M1 | Specialized functionality type | — | — | — | SSCNET |
| QD75MH4 | Specialized functionality type | — | — | — | SSCNETⅢ |
| QD75MH2 | Specialized functionality type | — | — | — | SSCNETⅢ |
| QD75MH1 | Specialized functionality type | — | — | — | SSCNETⅢ |

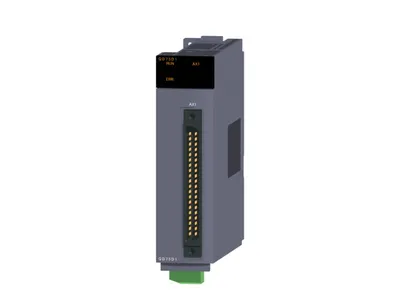

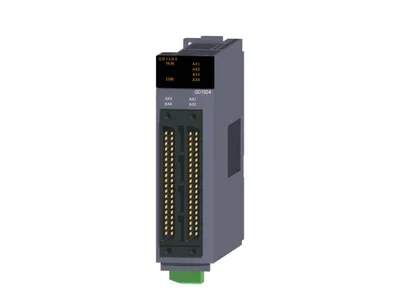

| QD75D4 | Specialized functionality type | 4 axes | 0.82 A | 0.16 kg | Differential output |
| QD75D4N | Specialized functionality type | 4 axes | 0.66 A | 0.16 kg | Differential output |
| QD75D2 | Specialized functionality type | 2 axes | 0.56 A | 0.15 kg | Differential output |
| QD75D2N | Specialized functionality type | 2 axes | 0.45 A | 0.15 kg | Differential output |
| QD75D1 | Specialized functionality type | 1 axis | 0.52 A | 0.15 kg | Differential output |
| QD75D1N | Specialized functionality type | 1 axis | 0.43 A | 0.15 kg | Differential output |

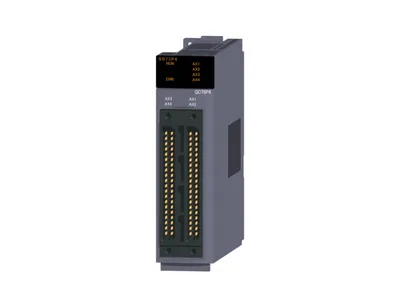

| QD75P4 | Specialized functionality type | 4 axes | 0.58 A | 0.16 kg | Open collector output |

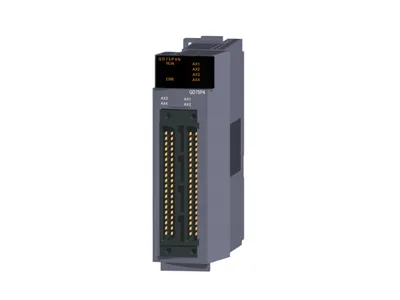

| QD75P4N | Specialized functionality type | 4 axes | 0.36 A | 0.16 kg | Open collector output |
| QD75P2 | Specialized functionality type | 2 axes | 0.46 A | 0.15 kg | Open collector output |
| QD75P2N | Specialized functionality type | 2 axes | 0.30 A | 0.14 kg | Open collector output |
Common to all listed parts
| Series | MELSEC-Q Series |
| Category | Positioning |
