Mitsubishi MELSEC-Q Series – Power supply Parts
Compare Mitsubishi MELSEC-Q Series – Power supply
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Category | Subtype | Inrush current | Overcurrent protection: 5 V DC | Weight |
|---|---|---|---|---|---|
| Q63RP | Redundant power supply type | 24 V DC input | 150 A, within 1 ms | 9.35 A or more | 0.60 kg |
| Q64RP | Redundant power supply type | 100...120/200...240 V AC input | 20 A, within 8 ms | 9.35 A or more | 0.47 kg |

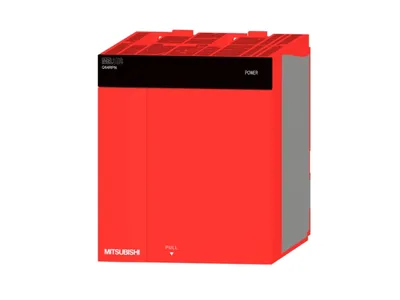

| Q64RPN | Redundant power supply type | 100...240 V AC input | 20 A, within 8 ms | 9.35 A or more | 0.49 kg |

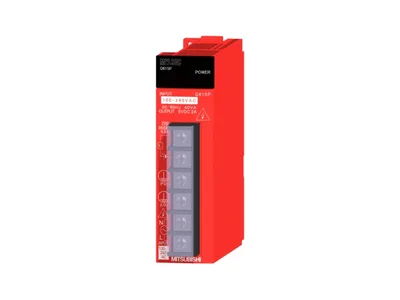

| Q61SP | Slim type | 100...240 V AC input | 40 A, within 8 ms | 2.2 A or more | 0.18 kg |

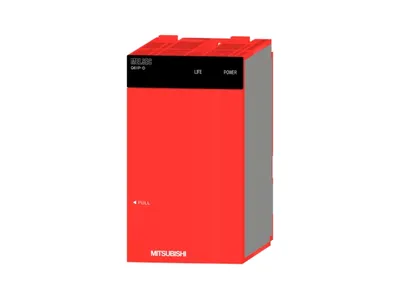

| Q61P-D | Life detection type | 100...240 V AC input | 20 A, within 8 ms | 6.6 A or more | 0.45 kg |

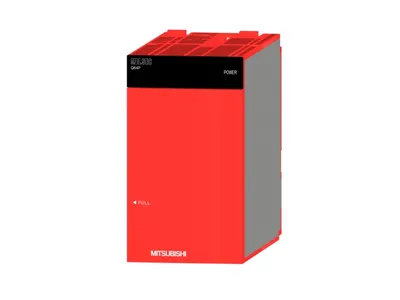

| Q64P | Large capacity type | 100...120/200...240 V AC input | 20 A, within 8 ms | 9.9 A or more | 0.40 kg |
| Q64PN | Large capacity type | 100...240 V AC input | 20 A, within 8 ms | 9.9 A or more | 0.47 kg |
| Q63P | Standard type | 24 V DC input | 100 A, within 1 ms (at 24 V DC input) | 6.6 A or more | 0.33 kg |
| Q62P | Standard type | 100...240 V AC input | 20 A, within 8 ms | 3.3 A or more | 0.39 kg |
| Q61P | Standard type | 100...240 V AC input | 20 A, within 8 ms | 6.6 A or more | 0.40 kg |
| Q61P-A2 | Standard type | 200...240 V AC input | 20 A, within 8 ms | 6.6 A or more | 0.31 kg |
| Q61P-A1 | Standard type | 100...120 V AC input | 20 A, within 8 ms | 6.6 A or more | 0.31 kg |
Common to all listed parts
| Series | MELSEC-Q Series |
| Overvoltage protection: 5 V DC | 5.5...6.5 V |
| Fuse | Built-in (user-unchangeable) |
| External interface | Terminal block (M3.5 screw) |
| External dimensions: Height | 98 mm |
| General specifications | Refer to the general specifications of the CPU module. |
