Mitsubishi MELSEC-Q Series – Base Parts
Compare Mitsubishi MELSEC-Q Series – Base
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type | External dimensions: Height | External dimensions: Width | External dimensions: Depth | Weight |
|---|---|---|---|---|---|

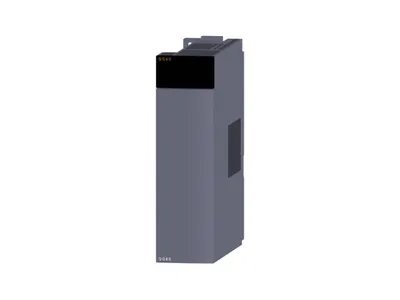

| QG60 | Blank cover | 98 mm | 27.4 mm | 90 mm | 0.07 kg |
| QA1S6ADP | Q-AnS base unit conversion adapter | 130 mm | 62 mm | 78.5 mm | 0.27 kg |
| QA6ADP | QA conversion adapter | 130 mm | 73.5 mm | 74 mm | 0.20 kg |
| QG69LS | Large blank cover | 108 mm | 34.5 mm | 54 mm | 0.03 kg |

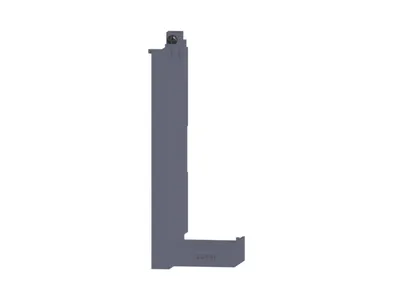

| QG69L | Large blank cover | 108 mm | 37.5 mm | 54 mm | 0.03 kg |
| QC100B | — | — | — | — | 1.11 kg |
| QC50B | — | — | — | — | 0.60 kg |

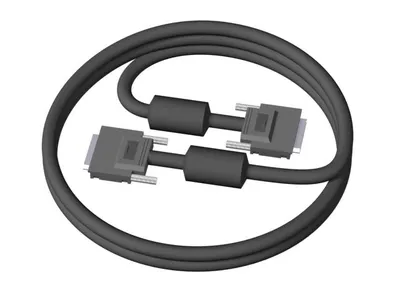

| QC30B | — | — | — | — | 0.40 kg |
| QC12B | — | — | — | — | 0.22 kg |
| QC06B | — | — | — | — | 0.16 kg |
| QC05B | — | — | — | — | 0.15 kg |

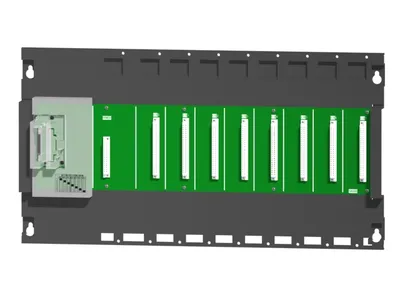

| QA68B-E | QA type | 250 mm | 466 mm | 46.6 mm | 2.0 kg |
| QA68B | QA type | 250 mm | 466 mm | 46.6 mm | 2.0 kg |

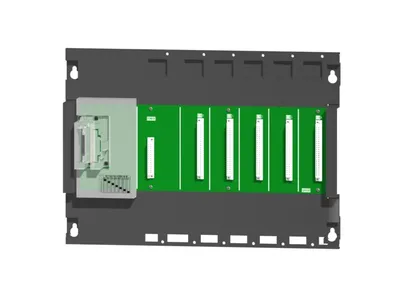

| QA65B-E | QA type | 250 mm | 352 mm | 46.6 mm | 1.60 kg |
| QA65B | QA type | 250 mm | 352 mm | 46.6 mm | 1.60 kg |

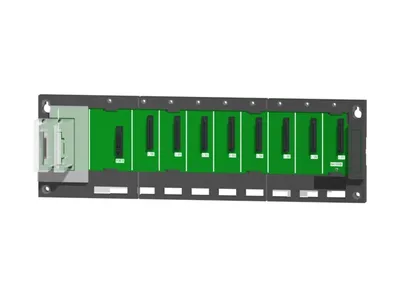

| QA1S68B | QA1S type | 130 mm | 420 mm | 51.2 mm | 1.00 kg |

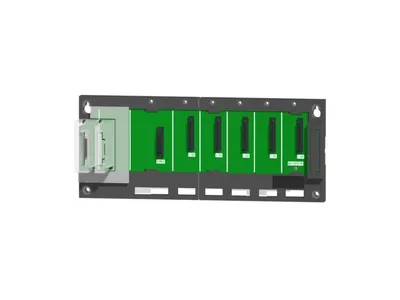

| QA1S65B | QA1S type | 130 mm | 315 mm | 51.2 mm | 0.75 kg |

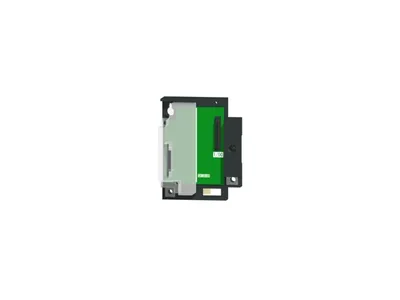

| QA1S51B | QA1S type | 130 mm | 100 mm | 50.7 mm | 0.23 kg |

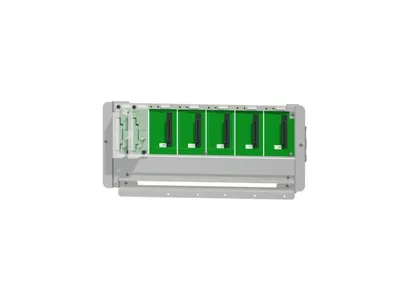

| Q55BLS-D | AnS size Q large type | 118 mm | 248 mm | 48.5 mm | 0.51 kg |

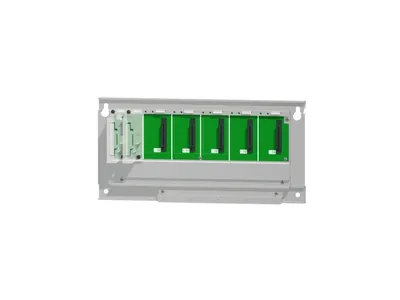

| Q55BLS | AnS size Q large type | 130 mm | 260 mm | 53 mm | 0.82 kg |

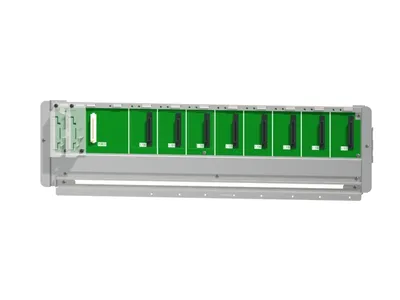

| Q68BLS-D | AnS size Q large type | 118 mm | 409 mm | 48.5 mm | 0.74 kg |

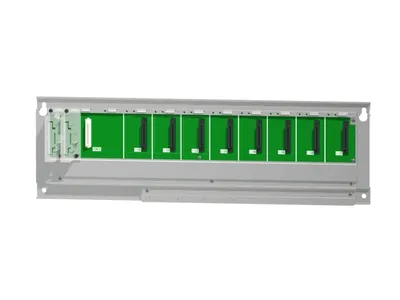

| Q68BLS | AnS size Q large type | 130 mm | 420 mm | 53 mm | 1.32 kg |

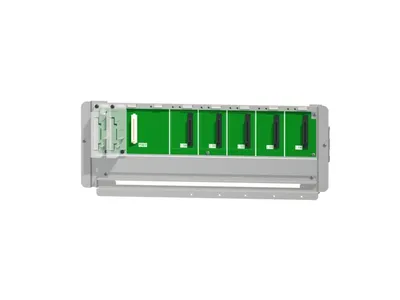

| Q65BLS-D | AnS size Q large type | 118 mm | 304 mm | 48.5 mm | 0.57 kg |

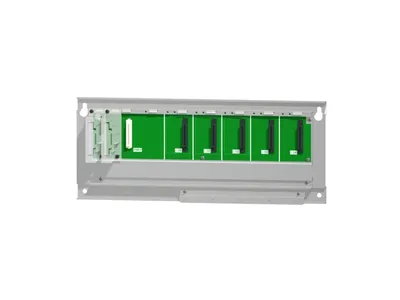

| Q65BLS | AnS size Q large type | 130 mm | 315 mm | 53 mm | 0.98 kg |
Common to all listed parts
| Series | MELSEC-Q Series |
