Inductive couplers for signal transmission Parts
Compare Inductive couplers for signal transmission
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Transmission distance | Connection | Housing material | Ambient temperature |
|---|---|---|---|---|---|

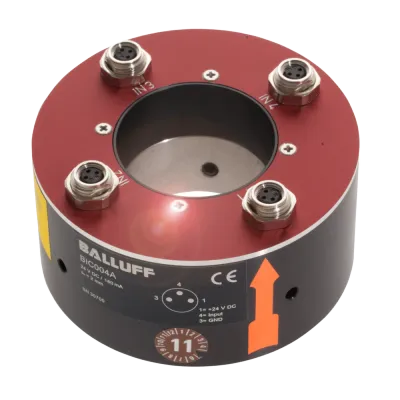

| BIC004A | BIC 2I2-V1A18-R01K01-SM3A30 | 1...3 mm | Connector, M8x1, 3-pin | PET | 0...70 °C |
| BIC0049 | BIC 1I2-V1A18-R01K01-C01 | 1...3 mm | Connector, M12x1, 4-pin | PET | 0...70 °C |
| BIC0048 | BIC 1I3-P2A15-M30MM3-BPX0B-050 | 2...5 mm | Cable, 5.00 m, PUR | Brass | 0...50 °C |
| BIC0047 | BIC 1I0-C1A02-M18MN2-BPX03-050 | 1...4 mm | Cable, 5.00 m, PUR | Brass | 0...60 °C |
| BIC0046 | BIC 1I0-V1003-M18MN2-BPX03-050 | 0...2.5 mm | Cable, 5.00 m, PUR | Brass | 0...60 °C |
| BIC0045 | BIC 2I3-P2A15-M30MI2-BPX0B-050 | 1...5 mm | Cable, 5.00 m, PUR | Brass, nickel-plated | 0...50 °C |

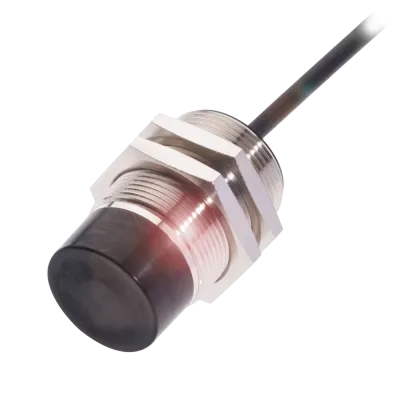

| BIC0044 | BIC 2I0-P2A05-M30MF-BPX03-030 | 1...4.5 mm | Cable, PUR | Brass | 0...50 °C |
| BIC0043 | BIC 2I0-V1A01-M18MI2-BPX03-050 | 0...2.5 mm | Cable, 5.00 m, PUR | Brass | 0...60 °C |

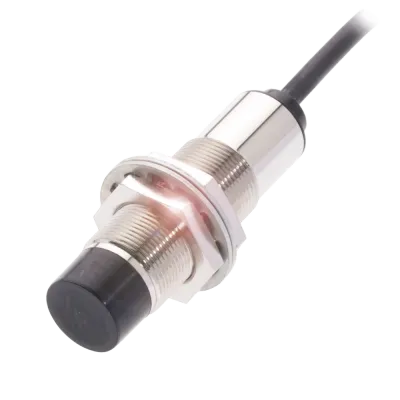

| BIC0041 | BIC 2I0-R1002-M18MF2-BPX03-050 | 1...4 mm | Cable, 5.00 m, PUR | Brass | 0...60 °C |

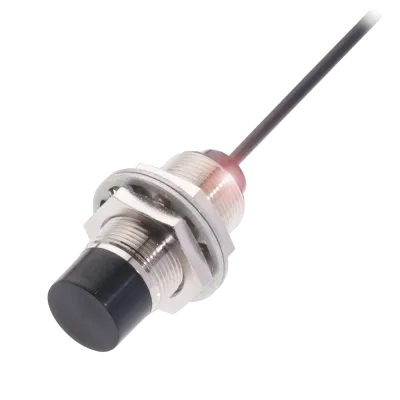

| BIC003Z | BIC 2I0-D1001-M18ME1-BPX02-050 | 0...4 mm;0...5 mm | Cable, 5.00 m, PUR | Brass | 0...50 °C |

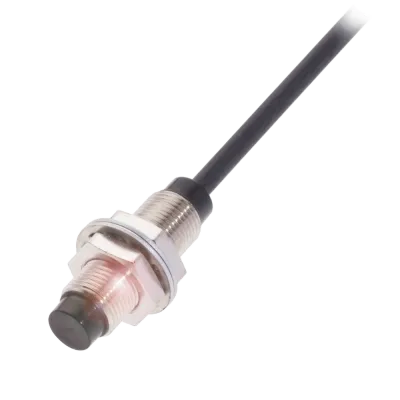

| BIC003W | BIC 2I0-D1001-M12ME1-BPX02-050 | 0...1.6 mm;0...2 mm | Cable, 5.00 m, PUR | Brass | 0...50 °C |

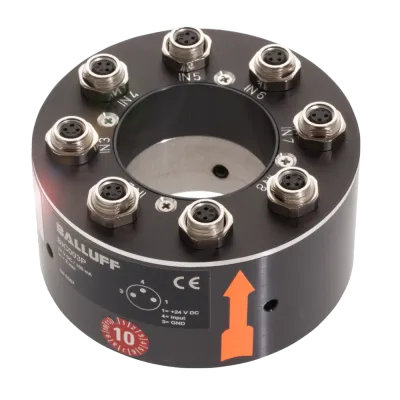

| BIC003P | BIC 2I3-P2A16-R01K01-SM3A30 | 1...3 mm | Connector, M8x1, 3-pin | PET | 0...70 °C |

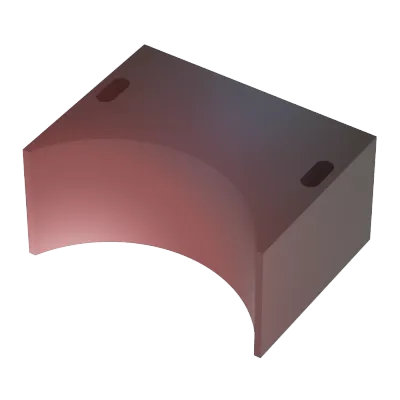

| BIC003N | BIC 1I3-P2A16-R01K01-C03 | 1...3 mm | Connector, M16 Series 423, 3-pin | PET | 0...70 °C |

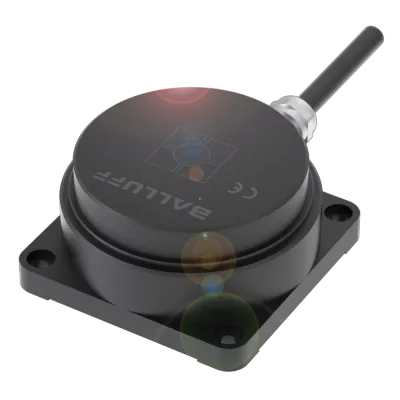

| BIC003C | BIC 1B2-P2A30-Q90AQ-GPX0B-050 | 3...10 mm | Cable, 5.00 m, PUR | Aluminum | 0...50 °C |

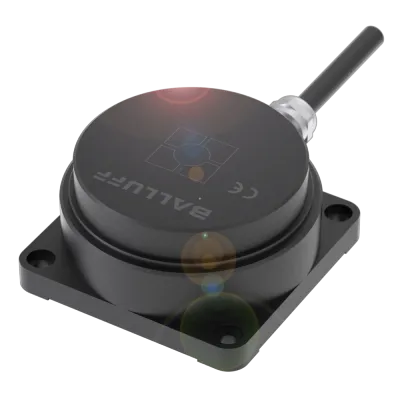

| BIC0039 | BIC 2B2-P2A30-Q90AQ-GPX0B-050 | 3...10 mm | Cable, 5.00 m, PUR | Aluminium | 0...50 °C |

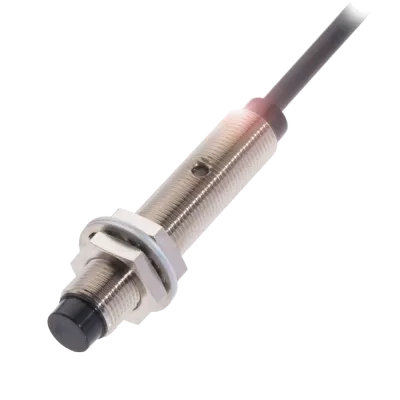

| BIC002T | BIC 1I0-P2001-M12MM1-BPX03-050 | 0...1.6 mm;0...2 mm | Cable, 5.00 m, PUR | Brass | 0...50 °C |
| BIC002P | BIC 1I0-P2001-M18MI-BPX03-050 | 0...4 mm;0...5 mm | Cable, 5.00 m, PUR | Brass | 0...50 °C |

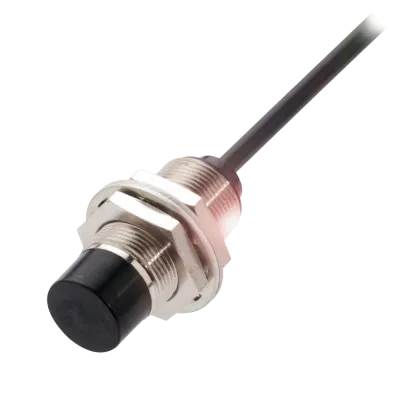

| BIC002L | BIC 2I0-N2A02-M18ME-BPX03-010 | 0...2.5 mm | Cable, 1.00 m, PUR | Brass, nickel-plated | 0...50 °C |
| BIC002K | BIC 2I0-P2A02-M18ME-BPX03-020 | 0...2.5 mm | Cable, 2.00 m, PUR | Brass, nickel-plated | 0...50 °C |

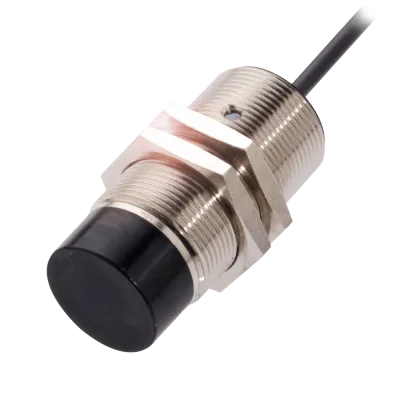

| BIC002E | BIC 1I0-P2A02-M30MI-BPX03-050 | 1...4.5 mm | Cable, 5.00 m, PUR | Brass | 0...50 °C |
| BIC002C | BIC 1I0-N2A02-M18MI-BPX03-020 | 0...2.5 mm | Cable, 2.00 m, PUR | Brass | 0...50 °C |

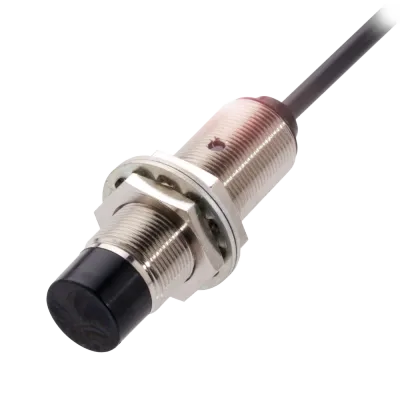

| BIC0029 | BIC 1I0-P2A02-M18MI-BPX03-050 | 0...2.5 mm | Cable, 5.00 m, PUR | Brass | 0...50 °C |
| BIC0028 | BIC 1I3-P2A30-Q90AA-GPX0B-050 | 4...12 mm | Cable, 5.00 m, PUR | Aluminum | 0...50 °C |
| BIC0027 | BIC 1I3-P2A20-Q40AC-GPX0B-050 | 3...8 mm | Cable, 5.00 m, PUR | Aluminum | 0...50 °C |
Common to all listed parts
| Lifecycle | Active |
| Product group | Inductive couplers for signal transmission |
| Function | Signal transmission |
| IP rating | IP67 |
| ECLASS 14.0 | 27-04-07-01 |
| ETIM 9.0 | EC002714 |
| UNSPSC 11 | 39121019 |
