IO-Link valve interface Parts
Compare IO-Link valve interface
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Balluff alternatives | Version | Outputs, number | Process data cycle min. |
|---|---|---|---|---|---|

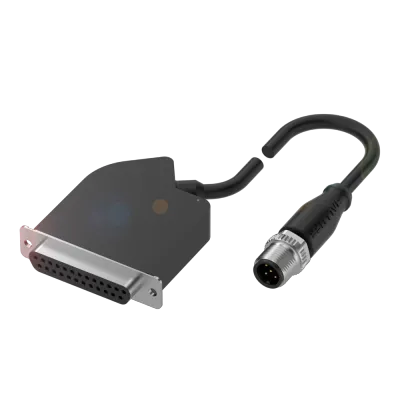

| BNI001N | BNI IOL-751-V04-K007 | BNI006T | Power Aux valve terminal connector | 16 | 3.0 ms |
| BNI001M | BNI IOL-751-V03-K007 | BNI006P | Power Aux valve terminal connector | 24 | 12 ms |
| BNI001L | BNI IOL-751-V02-K007 | BNI006M | Power Aux valve terminal connector | 16 | 3.0 ms |
| BNI001K | BNI IOL-751-V01-K007 | BNI006N | Power Aux valve terminal connector | 24 | 12 ms |
| BNI001J | BNI IOL-750-V04-K007 | BNI006H | Valve interface | 16 | 3.0 ms |
| BNI001H | BNI IOL-750-V03-K007 | BNI006K | Valve interface | 24 | 12 ms |
| BNI001E | BNI IOL-750-V02-K007 | BNI006E | Valve interface | 16 | 3.0 ms |
| BNI001F | BNI IOL-750-V01-K007 | BNI006J | Valve interface | 24 | 12 ms |
Common to all listed parts
| Lifecycle | Discontinued by Balluff |
| Product group | IO-Link valve interface |
| Interface | IO-Link 1.0 |
| Operating voltage Ub | 18...30.2 VDC |
| Connection (COM 1) | M12x1-Male, 5-pin, A-coded |
| Cable length L | 0.6 m |
| Output current max. UA, actuator | 400 mA |
| Current sum UA, actuator | 2 A |
