Home / Power Supplies / Power supplies for the control cabinet

Power supplies for the control cabinet Parts

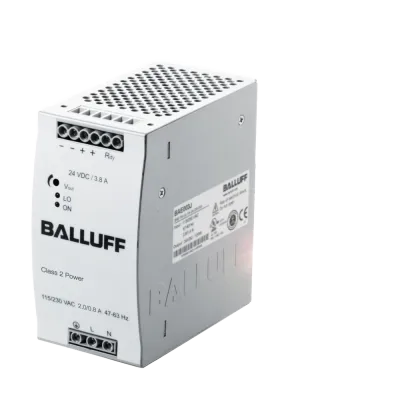

Balluff

BAE003J

BAE PS-XA-1W-24-038-003 – Power supplies for the control cabinet

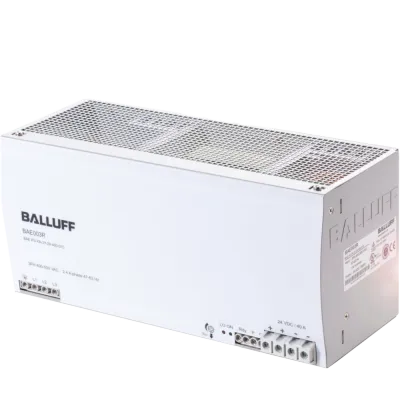

Balluff

BAE003R

BAE PS-XA-3Y-24-400-010 – Power supplies for the control cabinet

Balluff

BAE003M

BAE PS-XA-1W-48-100-005 – Power supplies for the control cabinet

Balluff

BAE003L

BAE PS-XA-1W-48-050-004 – Power supplies for the control cabinet

Balluff

BAE003K

BAE PS-XA-1W-48-025-003 – Power supplies for the control cabinet

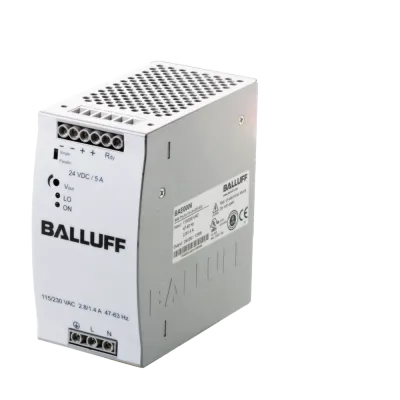

Balluff

BAE003H

BAE PS-XA-1W-12-100-003 – Power supplies for the control cabinet

Balluff

BAE003E

BAE PS-XA-1W-12-050-002 – Power supplies for the control cabinet

Balluff

BAE0039

BAE PS-XA-1W-12-025-002 – Power supplies for the control cabinet

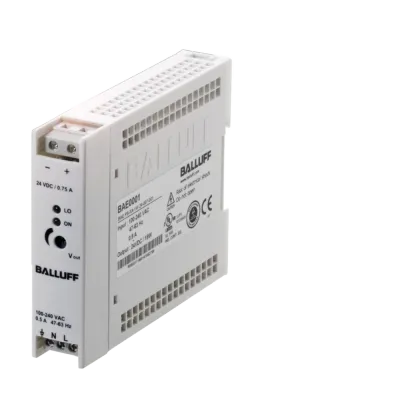

Balluff

BAE0036

BAE PS-XA-1W-12-015-001 – Power supplies for the control cabinet

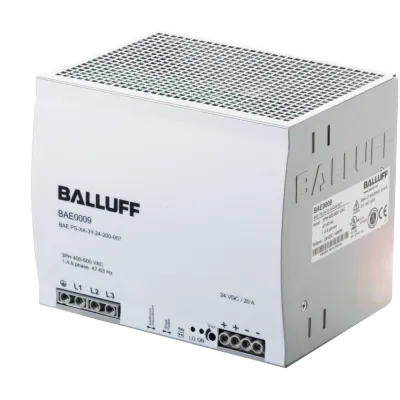

Balluff

BAE0009

BAE PS-XA-3Y-24-200-007 – Power supplies for the control cabinet

Balluff

BAE0008

BAE PS-XA-3Y-24-100-006 – Power supplies for the control cabinet

Balluff

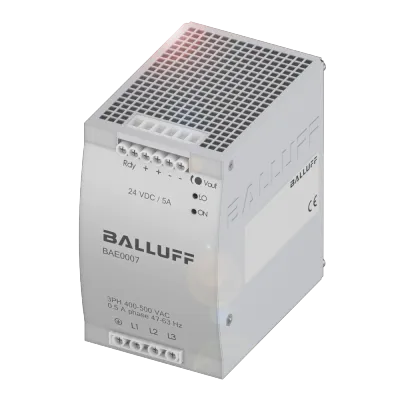

BAE0007

BAE PS-XA-3Y-24-050-009 – Power supplies for the control cabinet

Balluff

BAE0006

BAE PS-XA-1W-24-050-003 – Power supplies for the control cabinet

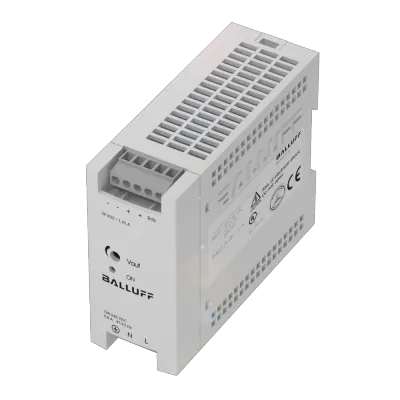

Balluff

BAE0005

BAE PS-XA-1W-24-025-002 – Power supplies for the control cabinet

Balluff

BAE0004

BAE PS-XA-1W-24-012-002 – Power supplies for the control cabinet

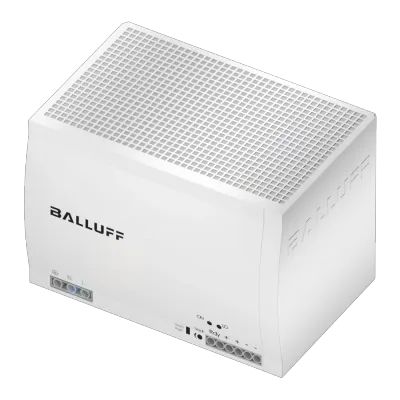

Balluff

BAE0003

BAE PS-XA-1W-24-200-005 – Power supplies for the control cabinet

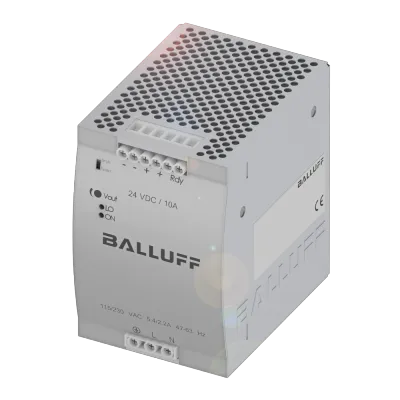

Balluff

BAE0002

BAE PS-XA-1W-24-100-004 – Power supplies for the control cabinet

Balluff

BAE0001

BAE PS-XA-1W-24-007-001 – Power supplies for the control cabinet

Compare Power supplies for the control cabinet

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Type designation	Dimension	Input voltage	Rated output current	Ambient temperature
BAE003J	BAE PS-XA-1W-24-038-003	64 x 124.5 x 116.6 mm	115/230 V AC automatic selection	3.8 A	-35...70 °C
BAE003R	BAE PS-XA-3Y-24-400-010	275.8 x 126.2 x 111.9 mm	400…500 V AC 3-phase	40 A	-40...70 °C
BAE003M	BAE PS-XA-1W-48-100-005	175.5 x 124.5 x 116.6 mm	100…240 V AC, 1-phase	10 A	-40...70 °C
BAE003L	BAE PS-XA-1W-48-050-004	175.5 x 124.5 x 116.6 mm	115/230 V AC automatic selection	5 A	-40...70 °C
BAE003K	BAE PS-XA-1W-48-025-003	175.5 x 124.5 x 116.6 mm	115/230 V AC automatic selection	2.5 A	-35...70 °C
BAE003H	BAE PS-XA-1W-12-100-003	40.5 x 124.5 x 116.6 mm	115/230 V AC automatic selection	10 A	-35...70 °C
BAE003E	BAE PS-XA-1W-12-050-002	40.5 x 90 x 114 mm	100…240 V AC, 1-phase	5 A	-40...70 °C
BAE0039	BAE PS-XA-1W-12-025-002	40.5 x 90 x 114 mm	100…240 V AC, 1-phase	2.5 A	-40...70 °C
BAE0036	BAE PS-XA-1W-12-015-001	22.5 x 90 x 114 mm	100…240 V AC, 1-phase	1.5 A	-20...70 °C
BAE0009	BAE PS-XA-3Y-24-200-007	150 x 124 x 111.9 mm	400…500 V AC 3-phase	20 A	-30...70 °C
BAE0008	BAE PS-XA-3Y-24-100-006	89 x 124 x 111.9 mm	400…500 V AC 3-phase	10 A	-40...70 °C
BAE0007	BAE PS-XA-3Y-24-050-009	74.3 x 124 x 111.9 mm	400…500 V AC 3-phase	5 A	-40...70 °C
BAE0006	BAE PS-XA-1W-24-050-003	64 x 124.5 x 116.6 mm	115/230 V AC automatic selection	5 A	-35...70 °C
BAE0005	BAE PS-XA-1W-24-025-002	40.5 x 90 x 114 mm	100…240 V AC, 1-phase	2.5 A	-40...70 °C
BAE0004	BAE PS-XA-1W-24-012-002	40.5 x 90 x 114 mm	100…240 V AC, 1-phase	1.25 A	-40...70 °C
BAE0003	BAE PS-XA-1W-24-200-005	175.5 x 124.5 x 116.6 mm	100…240 V AC, 1-phase	20 A	-40...70 °C
BAE0002	BAE PS-XA-1W-24-100-004	83.5 x 124.5 x 116.6 mm	115/230 V AC automatic selection	10 A	-40...70 °C
BAE0001	BAE PS-XA-1W-24-007-001	40.5 x 124.5 x 116.6 mm	100…240 V AC, 1-phase	0.75 A	-20...70 °C

Common to all listed parts

Product group	Power supplies for the control cabinet
Version	DIN rail
Mounting part	DIN rail mount
IP rating	IP20
ECLASS 14.0	27-04-07-01
ETIM 9.0	EC002540
UNSPSC 11	39121004
