Balluff
BML00RKBML-S2E0-Q53F-M410-K0-KA10 – Incremental linear distance measuring system and rotary angle measuring system
Incremental linear distance measuring system and rotary angle measuring system Parts
Balluff

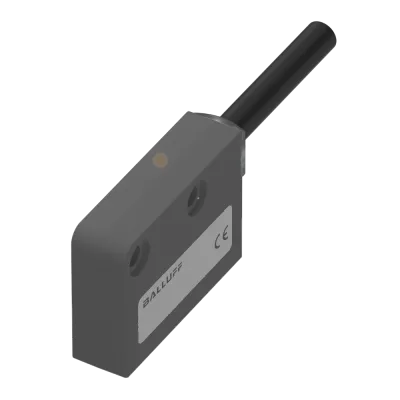

BML00PTBML-S2E0-Q61K-M410-K0-KA15 – Incremental linear distance measuring system and rotary angle measuring system
Balluff
BML00ELBML-S2E0-Q53G-M410-D0-KA02 – Incremental linear distance measuring system and rotary angle measuring system
Balluff
BML00E5BML-S2E0-Q53F-M410-G0-KA20 – Incremental linear distance measuring system and rotary angle measuring system
Balluff
BML009WBML-S2E0-Q53H-M410-G0-KA05 – Incremental linear distance measuring system and rotary angle measuring system
Balluff
BML0089BML-S2E0-Q53F-M410-G0-KA10 – Incremental linear distance measuring system and rotary angle measuring system
Balluff
BML0088BML-S2E0-Q53K-M410-P0-KA05 – Incremental linear distance measuring system and rotary angle measuring system
Balluff
BML002YBML-S2B0-Q53G-M413-P0-KA10 – Incremental linear distance measuring system and rotary angle measuring system
Balluff
BML002WBML-S2B0-Q53G-M410-P0-KA10 – Incremental linear distance measuring system and rotary angle measuring system
Balluff
BML002UBML-S1F1-A62Z-M310-90-KA10 – Incremental linear distance measuring system and rotary angle measuring system
Balluff

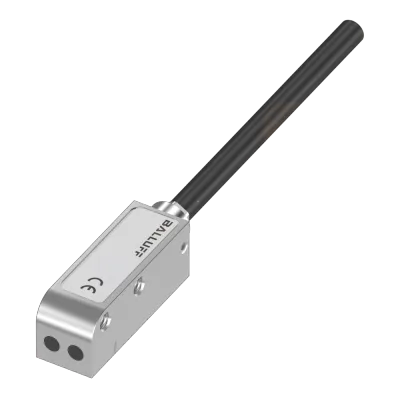

BML001CBML-S1F1-Q61G-M300-F0-KA02 – Incremental linear distance measuring system and rotary angle measuring system
Balluff
BML0019BML-S1F1-A62Z-M310-90-KA02 – Incremental linear distance measuring system and rotary angle measuring system
Compare Incremental linear distance measuring system and rotary angle measuring system
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Connection | Interface | Resolution | Approval/Conformity |
|---|---|---|---|---|---|
| BML00RK | BML-S2E0-Q53F-M410-K0-KA10 | Cable, 10 m, PUR | Digital A/B (HTL) | 5 µm | cURus CE EAC WEEE |
| BML00PT | BML-S2E0-Q61K-M410-K0-KA15 | Cable, 15 m, PUR | Digital A/B (RS422) | 50 µm | cURus CE EAC WEEE |
| BML00EL | BML-S2E0-Q53G-M410-D0-KA02 | Cable, 2 m, PUR | Digital A/B (HTL) | 10 µm | cURus CE EAC WEEE |
| BML00E5 | BML-S2E0-Q53F-M410-G0-KA20 | Cable, 20 m, PUR | Digital A/B (HTL) | 5 µm | cURus CE EAC WEEE |
| BML009W | BML-S2E0-Q53H-M410-G0-KA05 | Cable, 5 m, PUR | Digital A/B (HTL) | 25 µm | cURus CE EAC WEEE |
| BML0089 | BML-S2E0-Q53F-M410-G0-KA10 | Cable, 10 m, PUR | Digital A/B (HTL) | 5 µm | cURus CE EAC WEEE |
| BML0088 | BML-S2E0-Q53K-M410-P0-KA05 | Cable, 5 m, PUR | Digital A/B (HTL) | 50 µm | cURus CE EAC WEEE |
| BML002Y | BML-S2B0-Q53G-M413-P0-KA10 | Cable, 10 m, PUR | Digital A/B (HTL) | 10 µm | cURus CE WEEE |
| BML002W | BML-S2B0-Q53G-M410-P0-KA10 | Cable, 10 m, PUR | Digital A/B (HTL) | 10 µm | cURus CE |
| BML002U | BML-S1F1-A62Z-M310-90-KA10 | Cable, 10 m, PUR | Analog Sin/Cos (1 Vpp ± 0,35 V) | — | cURus CE EAC WEEE |
| BML001C | BML-S1F1-Q61G-M300-F0-KA02 | Cable, 2 m, PUR | Digital A/B (RS422) | 10 µm | CE cURus |
| BML0019 | BML-S1F1-A62Z-M310-90-KA02 | Cable, 2 m, PUR | — | — | cURus CE |
Common to all listed parts
| Lifecycle | Active |
| Product group | Incremental linear distance measuring system and rotary angle measuring system |
| Ambient temperature | -20...80 °C |
| IP rating | IP67 |
| Procedure direction | Lengthwise to tape |
| ECLASS 14.0 | 27-27-43-04 |
| ETIM 9.0 | EC001852 |
| UNSPSC 11 | 41111945 |
