Mechanical single position limit switches with safety switch positions Parts

Balluff

BNS03PW

BNS 813-FD-60-183-FD-S80L – Mechanical single position limit switches with safety switch positions

Balluff

BNS0022

BNS 813-FE-60-183 – Mechanical single position limit switches with safety switch positions

Balluff

BNS001T

BNS 813-FD-60-186-FC – Mechanical single position limit switches with safety switch positions

Balluff

BNS002L

BNS 813-FL-60-185-FD-S80R – Mechanical single position limit switches with safety switch positions

Balluff

BNS0025

BNS 813-FE-60-186-FC – Mechanical single position limit switches with safety switch positions

Balluff

BNS0035

BNS 813-FR-60-187-S80R – Mechanical single position limit switches with safety switch positions

Balluff

BNS001L

BNS 813-FD-60-183-FD-S80R – Mechanical single position limit switches with safety switch positions

Balluff

BNS00A0

BNS 813-FL-60-186-S76R – Mechanical single position limit switches with safety switch positions

Balluff

BNS0020

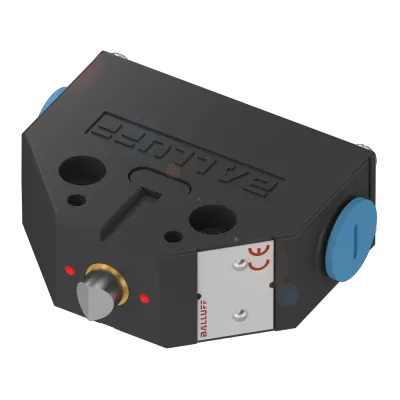

BNS 813-FD-60-187-S4R – Mechanical single position limit switches with safety switch positions

Balluff

BNS001U

BNS 813-FD-60-186-S4R – Mechanical single position limit switches with safety switch positions

Balluff

BNS0021

BNS 813-FD-60-187-S80R – Mechanical single position limit switches with safety switch positions

Balluff

BNS002U

BNS 813-FR-60-183-FD-S80R – Mechanical single position limit switches with safety switch positions

Balluff

BNS001W

BNS 813-FD-60-186-S80R – Mechanical single position limit switches with safety switch positions

Balluff

BNS0033

BNS 813-FR-60-186-S80R – Mechanical single position limit switches with safety switch positions

Balluff

BNS002W

BNS 813-FR-60-183-S80R – Mechanical single position limit switches with safety switch positions

Balluff

BNS0027

BNS 813-FK-60-183-FD-S80R – Mechanical single position limit switches with safety switch positions

Balluff

BNS0032

BNS 813-FR-60-186-S4R – Mechanical single position limit switches with safety switch positions

Compare Mechanical single position limit switches with safety switch positions

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Type designation	Dimension	Number of switching positions	Rated operating voltage Ue	Approach speed
BNS03PW	BNS 813-FD-60-183-FD-S80L	74 x 28 x 76.5 mm	1x Chisel	1. Switch position: 6…60 V	1. Switch position: 40 m/min
BNS0022	BNS 813-FE-60-183	74 x 28 x 61 mm	1x E-Chisel	1. Switch position: 250 V AC	1. Switch position: 30 m/min
BNS001T	BNS 813-FD-60-186-FC	74 x 28 x 76.5 mm	1x Chisel	1. Switch position: 250 V AC	1. Switch position: 40 m/min
BNS002L	BNS 813-FL-60-185-FD-S80R	74 x 28 x 76.5 mm	1x Roller bearing	1. Switch position: 6…60 V	1. Switch position: 120 m/min
BNS0025	BNS 813-FE-60-186-FC	74 x 28 x 76.5 mm	1x E-Chisel	1. Switch position: 250 V AC	1. Switch position: 30 m/min
BNS0035	BNS 813-FR-60-187-S80R	74 x 28 x 74 mm	1x Roller	1. Switch position: 250 V AC	1. Switch position: 60 m/min
BNS001L	BNS 813-FD-60-183-FD-S80R	74 x 28 x 76.5 mm	1x Chisel	1. Switch position: 6…60 V	1. Switch position: 40 m/min
BNS00A0	BNS 813-FL-60-186-S76R	74 x 28 x 74 mm	1x Roller bearing	1. Switch position: 30 V AC/36 V DC	1. Switch position: 80 m/min
BNS0020	BNS 813-FD-60-187-S4R	—	1x Chisel	1. Switch position: 25 V AC/60 V DC	1. Switch position: 40 m/min
BNS001U	BNS 813-FD-60-186-S4R	—	1x Chisel	1. Switch position: 25 V AC/60 V DC	1. Switch position: 40 m/min
BNS0021	BNS 813-FD-60-187-S80R	74 x 28 x 74 mm	1x Chisel	1. Switch position: 250 V AC	1. Switch position: 40 m/min
BNS002U	BNS 813-FR-60-183-FD-S80R	74 x 28 x 76.5 mm	1x Roller	1. Switch position: 6…60 V	1. Switch position: 60 m/min
BNS001W	BNS 813-FD-60-186-S80R	74 x 28 x 74 mm	1x Chisel	1. Switch position: 250 V AC	1. Switch position: 40 m/min
BNS0033	BNS 813-FR-60-186-S80R	74 x 28 x 74 mm	1x Roller	1. Switch position: 250 V AC	1. Switch position: 60 m/min
BNS002W	BNS 813-FR-60-183-S80R	74 x 28 x 61 mm	1x Roller	1. Switch position: 250 V AC	1. Switch position: 60 m/min
BNS0027	BNS 813-FK-60-183-FD-S80R	74 x 28 x 76.5 mm	1x Ball	1. Switch position: 6…60 V	1. Switch position: 10 m/min
BNS0032	BNS 813-FR-60-186-S4R	—	1x Roller	1. Switch position: 25 V AC/60 V DC	1. Switch position: 60 m/min

Common to all listed parts

Lifecycle	Active
Product group	Mechanical single position limit switches with safety switch positions
Housing material	Aluminium, Anodized
Version	Safety EN 60204-1
Operating principle	1. Switch position: Mechanical
Installation	any
Ambient temperature	-5...85 °C
IP rating	IP67
