Mechanical single position limit switches Parts

Balluff

BNS03Y9

BNS 819-99-R-10-FC-S80 – Mechanical single position limit switches

Balluff

BNS03UC

BNS 819-99-D-11-FC – Mechanical single position limit switches

Balluff

BNS03U8

BNS 819-100-R-11-FC – Mechanical single position limit switches

Balluff

BNS03TW

BNS 819-99-K-10-FC – Mechanical single position limit switches

Balluff

BNS004L

BNS 819-99-K-12-S80 – Mechanical single position limit switches

Balluff

BNS0048

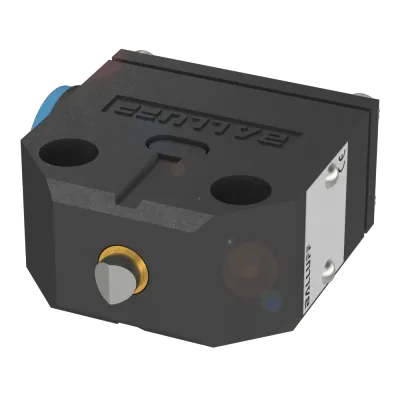

BNS 819-99-E-11 – Mechanical single position limit switches

Balluff

BNS000N

BNS 819-FE-60-101 – Mechanical single position limit switches

Balluff

BNS005U

BNS 819-100-E-11 – Mechanical single position limit switches

Balluff

BNS004C

BNS 819-99-E-13 – Mechanical single position limit switches

Balluff

BNS0011

BNS 819-FL-60-101-S4L – Mechanical single position limit switches

Balluff

BNS005P

BNS 819-100-D-13-S4 – Mechanical single position limit switches

Balluff

BNS0064

BNS 819-100-K-11-S4 – Mechanical single position limit switches

Balluff

BNS000J

BNS 819-FD-60-101-FE-S80R – Mechanical single position limit switches

Balluff

BNS0017

BNS 819-FR-60-101-FE-S80R – Mechanical single position limit switches

Balluff

BNS004Z

BNS 819-99-R-12-S4 – Mechanical single position limit switches

Balluff

BNS006P

BNS 819-100-R-13-S4 – Mechanical single position limit switches

Balluff

BNS000E

BNS 819-FD-60-101-FD-S80R – Mechanical single position limit switches

Balluff

BNS0015

BNS 819-FR-60-101-FD-S80R – Mechanical single position limit switches

Balluff

BNS0019

BNS 819-FR-60-101-S80R – Mechanical single position limit switches

Balluff

BNS000L

BNS 819-FD-60-101-S80R – Mechanical single position limit switches

Balluff

BNS000Z

BNS 819-FK-60-101-S80R – Mechanical single position limit switches

Balluff

BNS000T

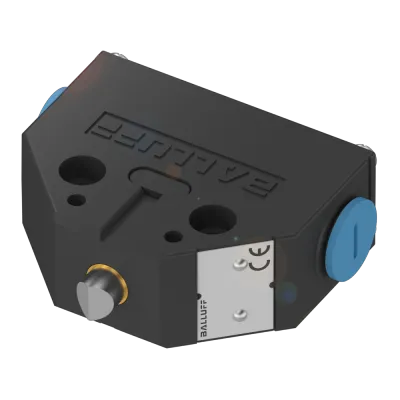

BNS 819-FE-60-101-S80R – Mechanical single position limit switches

Balluff

BNS0050

BNS 819-99-R-12-S80 – Mechanical single position limit switches

Balluff

BNS0044

BNS 819-99-D-13-S80 – Mechanical single position limit switches

Compare Mechanical single position limit switches

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Type designation	Dimension	Number of switching positions	Rated operating voltage Ue	Approach speed
BNS03Y9	BNS 819-99-R-10-FC-S80	40 x 20 x 49 mm	1x Roller	1. Switch position: 24 V DC	1. Switch position: 9 m/min
BNS03UC	BNS 819-99-D-11-FC	40 x 20 x 43 mm	1x Chisel	1. Switch position: 250 V AC	1. Switch position: 20 m/min
BNS03U8	BNS 819-100-R-11-FC	42 x 22 x 49 mm	—	1. Switch position: 250 V AC	1. Switch position: 60 m/min
BNS03TW	BNS 819-99-K-10-FC	40 x 20 x 43 mm	1x Ball	1. Switch position: 250 V AC	1. Switch position: 9 m/min
BNS004L	BNS 819-99-K-12-S80	40 x 20 x 43 mm	1x Ball	1. Switch position: 250 V AC	1. Switch position: 9 m/min
BNS0048	BNS 819-99-E-11	—	1x E-Chisel	1. Switch position: 250 V AC	1. Switch position: 10 m/min
BNS000N	BNS 819-FE-60-101	74 x 28 x 61 mm	1x E-Chisel	1. Switch position: 250 V AC	1. Switch position: 30 m/min
BNS005U	BNS 819-100-E-11	40 x 22 x 47 mm	1x E-Chisel	1. Switch position: 250 V AC	1. Switch position: 10 m/min
BNS004C	BNS 819-99-E-13	40 x 20 x 47 mm	1x E-Chisel	1. Switch position: 250 V AC	1. Switch position: 10 m/min
BNS0011	BNS 819-FL-60-101-S4L	—	1x Roller bearing	1. Switch position: 25 V AC/60 V DC	1. Switch position: 120 m/min
BNS005P	BNS 819-100-D-13-S4	—	1x Chisel	1. Switch position: 25 V AC/60 V DC	1. Switch position: 20 m/min
BNS0064	BNS 819-100-K-11-S4	42 x 22 x 47 mm	1x Ball	1. Switch position: 250 V AC	1. Switch position: 9 m/min
BNS000J	BNS 819-FD-60-101-FE-S80R	74 x 28 x 76.5 mm	1x Chisel	1. Switch position: 90…250 V	1. Switch position: 40 m/min
BNS0017	BNS 819-FR-60-101-FE-S80R	74 x 28 x 76.5 mm	1x Roller	1. Switch position: 90…250 V	1. Switch position: 60 m/min
BNS004Z	BNS 819-99-R-12-S4	—	1x Roller	1. Switch position: 25 V AC/60 V DC	1. Switch position: 60 m/min
BNS006P	BNS 819-100-R-13-S4	—	1x Roller	1. Switch position: 125...250 V DC	1. Switch position: 60 m/min
BNS000E	BNS 819-FD-60-101-FD-S80R	74 x 28 x 76.5 mm	1x Chisel	1. Switch position: 250 V AC	1. Switch position: 40 m/min
BNS0015	BNS 819-FR-60-101-FD-S80R	74 x 28 x 76.5 mm	1x Roller	1. Switch position: 250 V AC	1. Switch position: 60 m/min
BNS0019	BNS 819-FR-60-101-S80R	74 x 28 x 61 mm	1x Roller	1. Switch position: 250 V AC	1. Switch position: 60 m/min
BNS000L	BNS 819-FD-60-101-S80R	—	1x Chisel	1. Switch position: 250 V AC	1. Switch position: 40 m/min
BNS000Z	BNS 819-FK-60-101-S80R	—	1x Ball	1. Switch position: 250 V AC	1. Switch position: 10 m/min
BNS000T	BNS 819-FE-60-101-S80R	74 x 28 x 61 mm	1x E-Chisel	1. Switch position: 250 V AC	1. Switch position: 30 m/min
BNS0050	BNS 819-99-R-12-S80	—	1x Roller	1. Switch position: 250 V AC	1. Switch position: 60 m/min
BNS0044	BNS 819-99-D-13-S80	40 x 20 x 47 mm	1x Chisel	1. Switch position: 250 V AC	1. Switch position: 20 m/min

Common to all listed parts

Lifecycle	Active
Product group	Mechanical single position limit switches
Version	Snap contact
Operating principle	1. Switch position: Mechanical
Ambient temperature	-5...85 °C
IP rating	IP67
ECLASS 14.0	27-27-06-01
ETIM 9.0	EC000030
