Flexible mounting system Parts
Compare Flexible mounting system
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Principle of operation | Dimension | Mounting part |
|---|---|---|---|---|

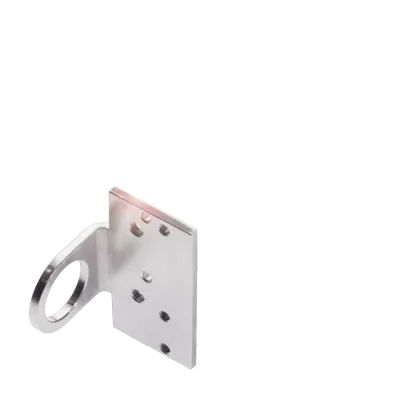

| BAM01F3 | BMS CS-M-D12-BX10-08 | Mounting system | 61 x 34 x 36 mm | Screws, clamps |

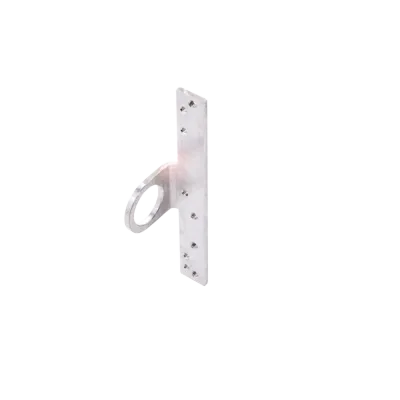

| BAM01F2 | BMS CS-M-D12-BX11-09 | Mounting system | 185 x 21 x 34 mm | Screws, clamps |

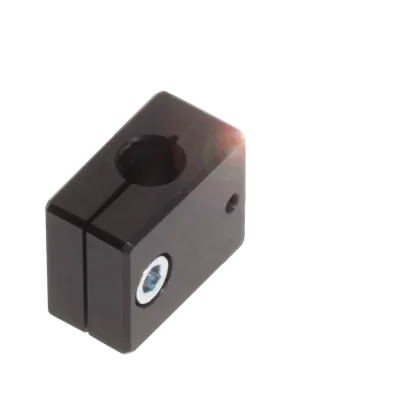

| BAM01CW | BMS CS-M-D12-BX08-07 | Mounting system | 37 x 20 x 30 mm | Screws, clamps |
| BAM01CH | BMS CU-M-D12-I060-02 | Mounting system | 76.4 x 10 x 30 mm | Screws, clamps |

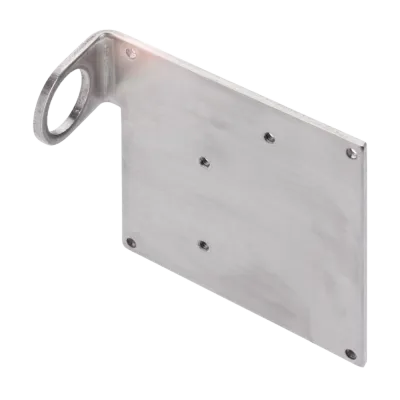

| BAM01AY | BMS CS-M-D12-BX07-06 | Mounting system | 93 x 34.5 x 85 mm | Screws, clamps |
| BAM01AW | BMS CS-M-D12-B23K-05 | Mounting system | 93 x 30 x 55 mm | Clamps |
| BAM0046 | BMS RS-S-D12-0300-00 | Mounting system | Ø 12 x 300 mm | Clamps |

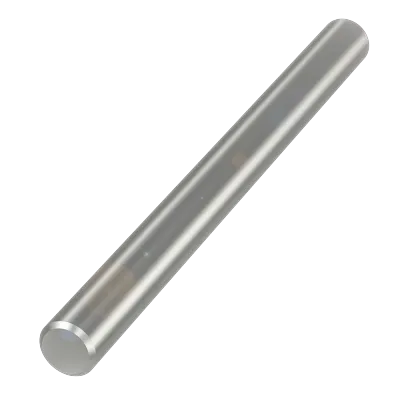

| BAM0045 | BMS RS-S-D12-0150-00 | Mounting system | Ø 12 x 150 mm | Clamps |

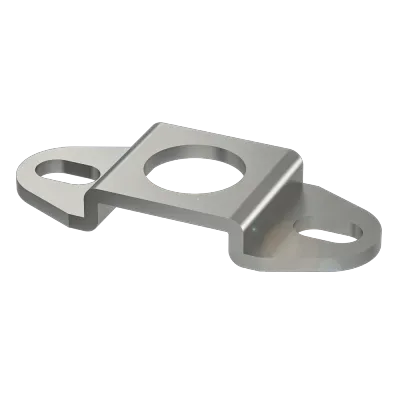

| BAM0044 | BMS CU-M-D12-I060-01 | Mounting system | 76.4 x 10 x 30 mm | Screws, clamps |
| BAM0043 | BMS CS-M-D12-B21K-04 | Mounting system | 88 x 20 x 56 mm | Clamps |

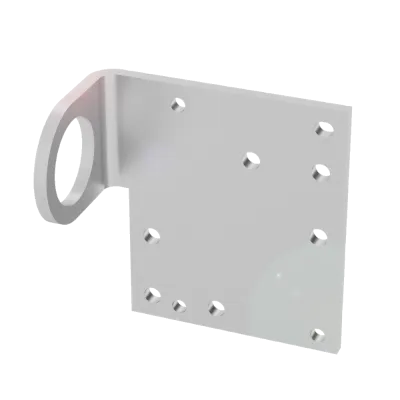

| BAM0042 | BMS CR-M-D12-IS-04 | Mounting system | 61.5 x 34 x 59 mm | Clamps |

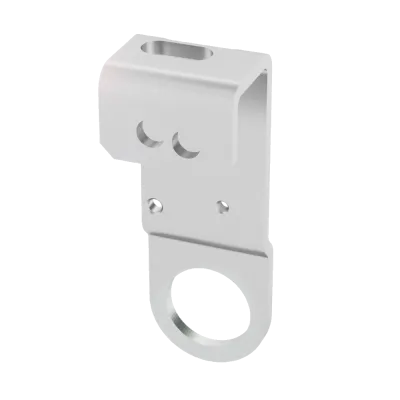

| BAM0040 | BMS CS-M-D12-BX06-03 | Mounting system | 79 x 23 x 28 mm | Screws, clamps |

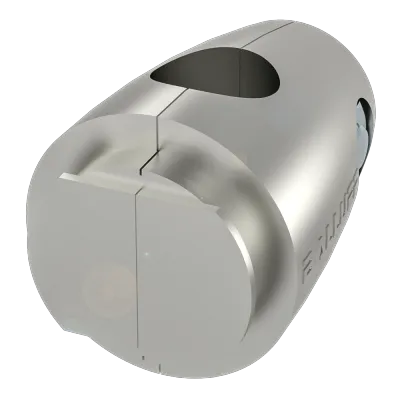

| BAM003Y | BMS CS-M-D12-IZ-01 | Mounting system | Ø 27 x 37 mm | Screws, clamps |

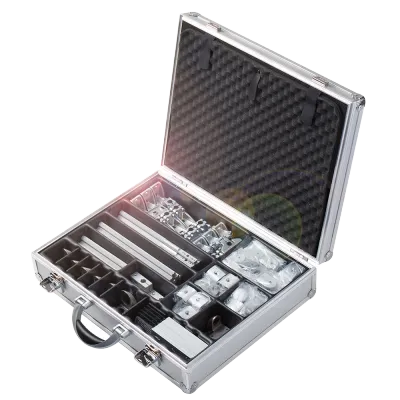

| BAM003W | BMS KIT-V1 | Mounting kit equipped | 390 x 135 x 510 mm | — |
| BAM003U | BMS CC-P-D10-A-00 | Mounting system | 55 x 22 x 22 mm | Screws, clamps |

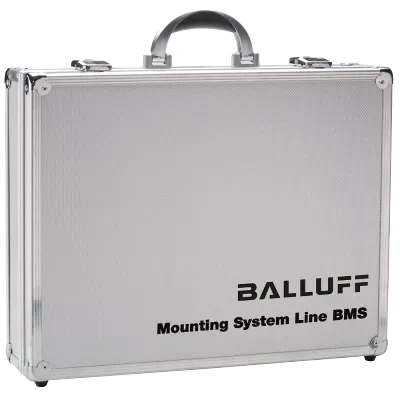

| BAM003T | BMS CASE-01 | Mounting kit empty | 390 x 135 x 510 mm | — |

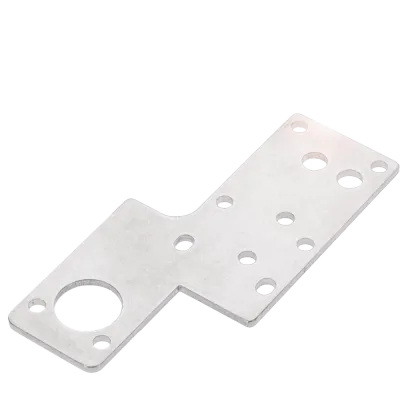

| BAM003R | BMS CS-M-D12-IQ40-03 | Mounting system | 121 x 3 x 60 mm | Screws, clamps |
| BAM003P | BMS CS-M-D12-IQ40-02 | Mounting system | 102 x 40 x 60 mm | Screws, clamps |

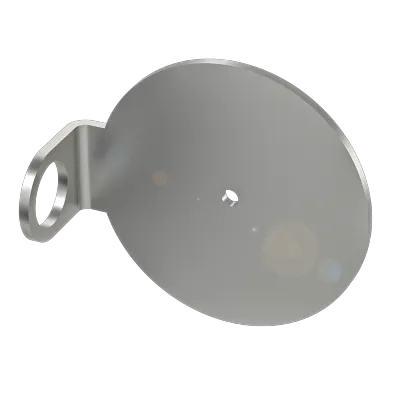

| BAM003N | BMS CR-M-D12-IU-05 | Mounting system | Ø 84 x 92.5 mm | Clamps |

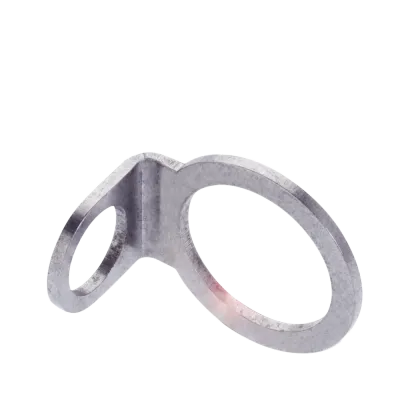

| BAM003M | BMS CS-M-D12-ID36-01 | Mounting system | Ø 48 x 54 mm | Clamps |

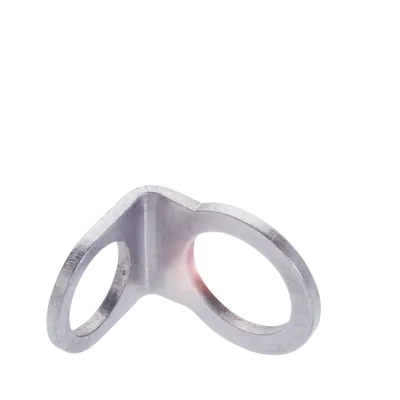

| BAM003L | BMS CS-M-D12-ID24-01 | Mounting system | Ø 35 x 41.5 mm | Clamps |

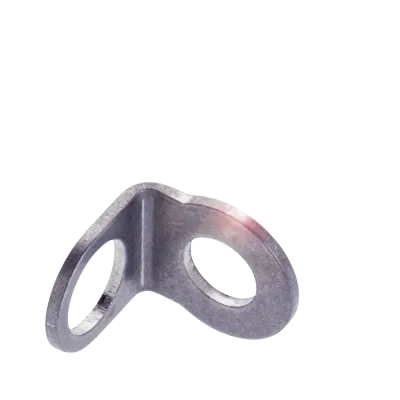

| BAM003K | BMS CS-M-D12-ID16-01 | Mounting system | Ø 33 x 36.5 mm | Clamps |
| BAM003J | BMS AD-M-003-D12/IZ | Mounting system | Ø 30 x 10 mm | Clamps |

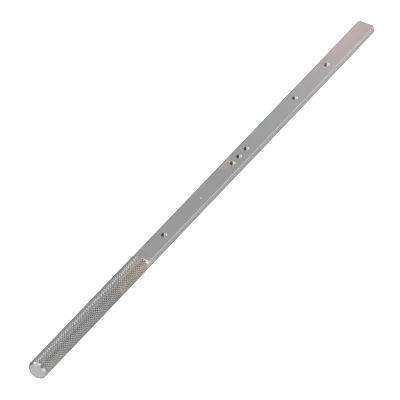

| BAM003H | BMS BS-M-D12-0400-04 | Mounting system | Ø 12 x 400 mm | Clamps |
Common to all listed parts
| Lifecycle | Active |
| Product group | Flexible mounting system |
| ECLASS 14.0 | 27-27-37-01 |
| ETIM 9.0 | EC003015 |
| UNSPSC 11 | 31162300 |
