Diffuse sensor with background suppression Parts
Compare Diffuse sensor with background suppression
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Series | Dimension | Range | Balluff alternatives |
|---|---|---|---|---|---|
| BOS0030 | BOS 21M-NUS-RV13-S4 | 21M | 15 x 50 x 42.5 mm | 70...200 mm | — |

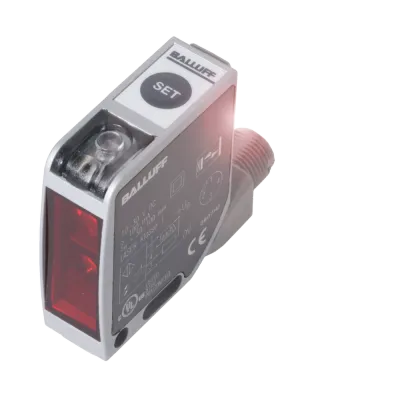

| BOS0036 | BOS 21M-PUS-RV13-S4 | 21M | 15 x 50 x 42.5 mm | 70...200 mm | — |

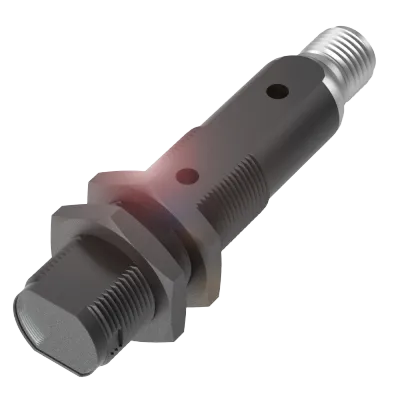

| BOS00JK | BOS 18KF-PA-1GA-S4-C | 18KF | Ø 18 x 96 mm | 40...110 mm | — |
| BOS0107 | BOS 2K-PS-RH11-00,2-S75 | 2K | 7.6 x 25.1 x 13.5 mm | 1...30 mm | BOS020N |

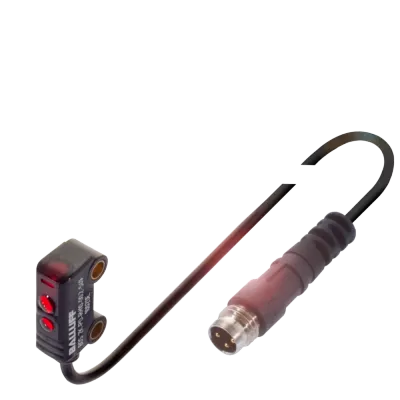

| BOS0106 | BOS 2K-PS-RH11-00,2-S49 | 2K | 7.6 x 25.1 x 13.5 mm | 1...30 mm | BOS020M |
| BOS0108 | BOS 2K-PS-RH11-02 | 2K | 7.6 x 25.1 x 13.5 mm | 1...30 mm | BOS020K |
| BOS00ZJ | BOS 2K-NS-RH11-02 | 2K | 7.6 x 25.1 x 13.5 mm | 1...30 mm | BOS020J |
| BOS00ZN | BOS 2K-PO-RH10-00,2-S49 | 2K | 7.6 x 25.1 x 13.5 mm | 1...15 mm | BOS021F |
| BOS0104 | BOS 2K-PS-RH10-00,2-S75 | 2K | 7.6 x 25.1 x 13.5 mm | 1...15 mm | BOS021E |
| BOS0103 | BOS 2K-PS-RH10-00,2-S49 | 2K | 7.6 x 25.1 x 13.5 mm | 1...15 mm | BOS021C |

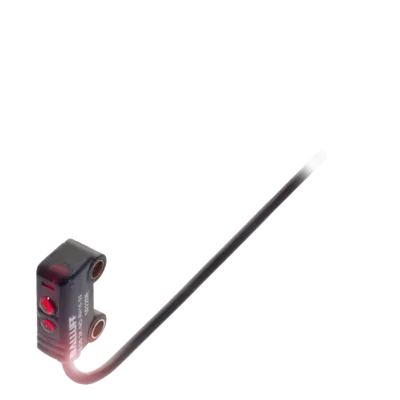

| BOS0105 | BOS 2K-PS-RH10-02 | 2K | 7.6 x 25.1 x 13.5 mm | 1...15 mm | BOS021A |
| BOS00ZH | BOS 2K-NS-RH10-02 | 2K | 7.6 x 25.1 x 13.5 mm | 1...15 mm | BOS0219 |
Common to all listed parts
| Product group | Diffuse sensor with background suppression |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, triangulation |
| Light type | LED, red light |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| ECLASS 14.0 | 27-27-09-03 |
| UNSPSC 11 | 39121528 |
