Home / Sensors / Photoelectric Sensors / Fork sensors and angle sensors

Fork sensors and angle sensors Parts

Balluff

BGL003H

BGL 50C-009-S4 – Fork sensors and angle sensors

Balluff

BGL003E

BGL 50C-006-S4 – Fork sensors and angle sensors

Balluff

BGL003A

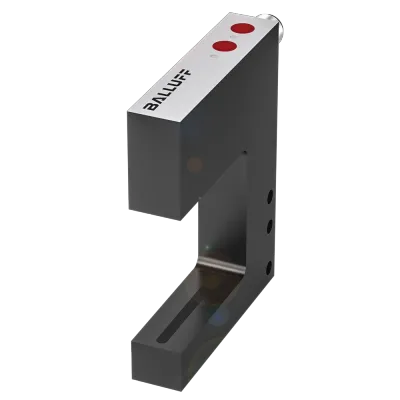

BGL 50C-004-S4 – Fork sensors and angle sensors

Balluff

BGL0038

BGL 50C-002-S4 – Fork sensors and angle sensors

Balluff

BGL0036

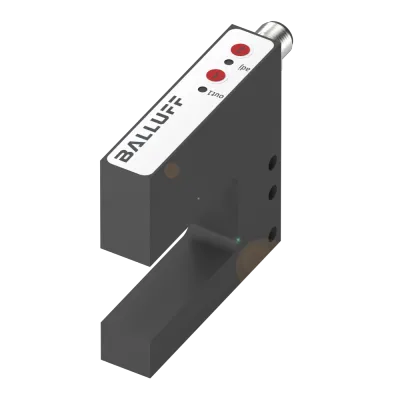

BGL 30C-009-S4 – Fork sensors and angle sensors

Balluff

BGL0034

BGL 30C-006-S4 – Fork sensors and angle sensors

Balluff

BGL0032

BGL 30C-004-S4 – Fork sensors and angle sensors

Balluff

BGL0030

BGL 30C-002-S4 – Fork sensors and angle sensors

Balluff

BGL002M

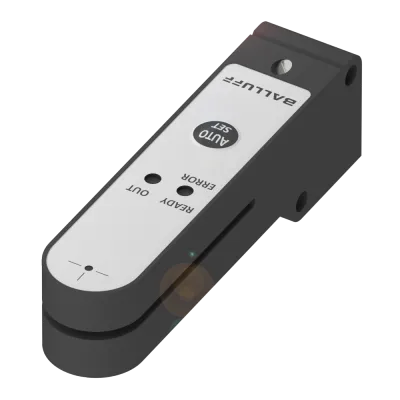

BGL 21-RG – Fork sensors and angle sensors

Balluff

BGL002L

BGL 21-IR – Fork sensors and angle sensors

Balluff

BGL0013

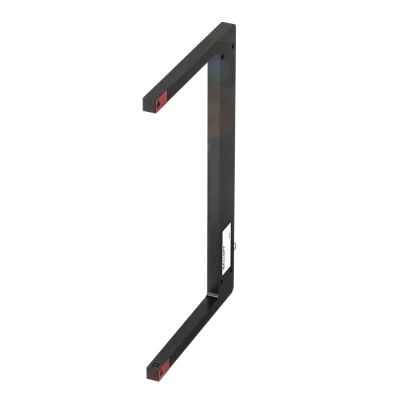

BGL 220A-006-S49 – Fork sensors and angle sensors

Balluff

BGL000M

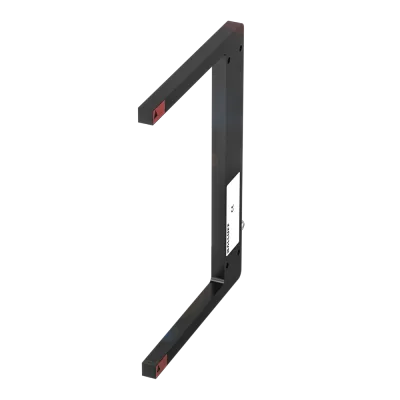

BGL 180A-006-S49 – Fork sensors and angle sensors

Balluff

BGL000E

BGL 120A-006-S49 – Fork sensors and angle sensors

Balluff

BGL0028

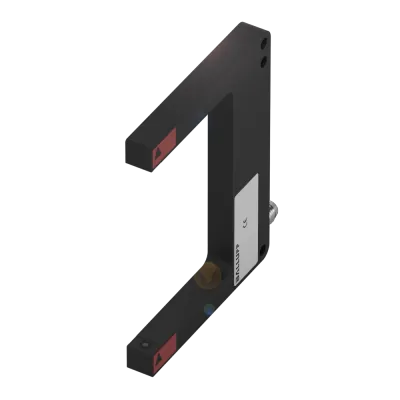

BGL 80A-006-S49 – Fork sensors and angle sensors

Balluff

BGL001R

BGL 50A-006-S49 – Fork sensors and angle sensors

Balluff

BGL000W

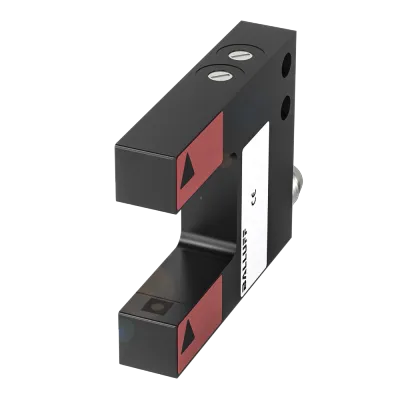

BGL 20A-006-S49 – Fork sensors and angle sensors

Balluff

BGL0004

BGL 10A-006-S49 – Fork sensors and angle sensors

Balluff

BGL0020

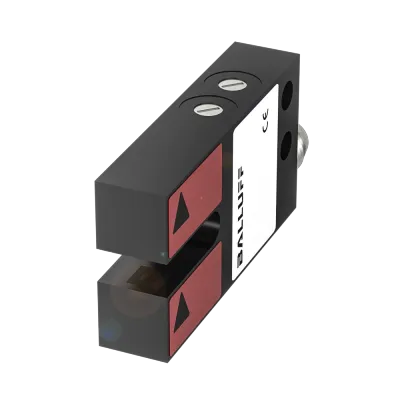

BGL 5A-006-S49 – Fork sensors and angle sensors

Balluff

BGL000H

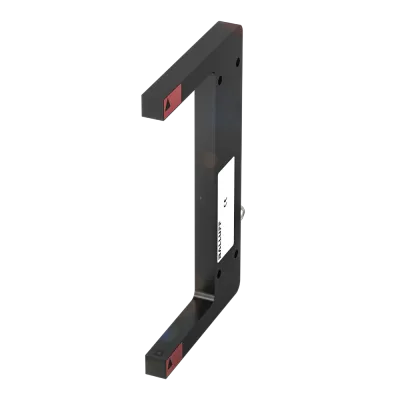

BGL 120A-008-S49 – Fork sensors and angle sensors

Balluff

BGL002A

BGL 80A-008-S49 – Fork sensors and angle sensors

Balluff

BGL001U

BGL 50A-008-S49 – Fork sensors and angle sensors

Balluff

BGL001H

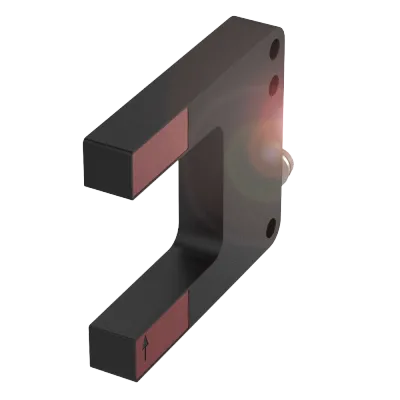

BGL 30A-008-S49 – Fork sensors and angle sensors

Balluff

BGL0006

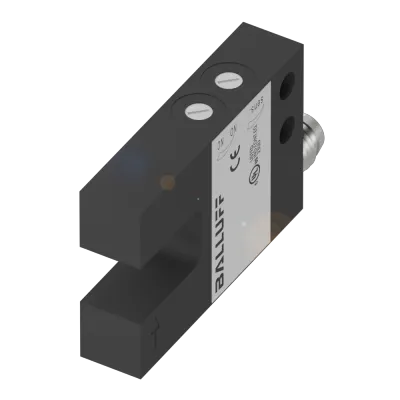

BGL 10A-008-S49 – Fork sensors and angle sensors

Balluff

BGL002P

BGL 30B-001-S4 – Fork sensors and angle sensors

Compare Fork sensors and angle sensors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Type designation	Dimension	Fork opening	Light spot size	Approval/Conformity
BGL003H	BGL 50C-009-S4	18 x 100 x 93.5 mm	50 mm	3 x 28 mm Light exit	CE WEEE
BGL003E	BGL 50C-006-S4	18 x 100 x 93.5 mm	50 mm	3 x 28 mm Light exit	CE WEEE EAC
BGL003A	BGL 50C-004-S4	18 x 100 x 93.5 mm	50 mm	3 x 28 mm Light exit	CE WEEE
BGL0038	BGL 50C-002-S4	18 x 100 x 93.5 mm	50 mm	3 x 28 mm Light exit	CE WEEE EAC
BGL0036	BGL 30C-009-S4	18 x 80 x 93.5 mm	30 mm	3 x 28 mm Light exit	CE
BGL0034	BGL 30C-006-S4	18 x 80 x 93.5 mm	30 mm	3 x 28 mm Light exit	CE WEEE
BGL0032	BGL 30C-004-S4	18 x 80 x 93.5 mm	30 mm	3 x 28 mm Light exit	CE WEEE
BGL0030	BGL 30C-002-S4	18 x 80 x 93.5 mm	30 mm	3 x 28 mm Light exit	CE WEEE EAC
BGL002M	BGL 21-RG	20 x 26 x 90 mm	2 mm	0.5 x 4 mm Light exit	CE UKCA WEEE
BGL002L	BGL 21-IR	20 x 26 x 90 mm	2 mm	0.5 x 4 mm Light exit	CE UKCA WEEE
BGL0013	BGL 220A-006-S49	10 x 240 x 153 mm	220 mm	Ø 2.5 mm Light exit	cULus CE EAC WEEE
BGL000M	BGL 180A-006-S49	10 x 200 x 153 mm	180 mm	Ø 2.5 mm Light exit	cULus CE EAC WEEE
BGL000E	BGL 120A-006-S49	10 x 140 x 93 mm	120 mm	Ø 2.5 mm Light exit	cULus CE EAC WEEE
BGL0028	BGL 80A-006-S49	10 x 100 x 88 mm	80 mm	Ø 2.0 mm Light exit	cULus CE EAC WEEE
BGL001R	BGL 50A-006-S49	10 x 70 x 88 mm	50 mm	Ø 1.5 mm Light exit	cULus CE EAC WEEE
BGL000W	BGL 20A-006-S49	10 x 40 x 58 mm	20 mm	Ø 1.0 mm Light exit	cULus CE EAC WEEE
BGL0004	BGL 10A-006-S49	10 x 30 x 54 mm	10 mm	Ø 1.0 mm Light exit	cULus CE EAC WEEE
BGL0020	BGL 5A-006-S49	10 x 25 x 54 mm	5 mm	Ø 1.0 mm Light exit	cULus CE EAC WEEE
BGL000H	BGL 120A-008-S49	10 x 140 x 93 mm	120 mm	Ø 2.5 mm Light exit	CE cULus EAC WEEE
BGL002A	BGL 80A-008-S49	10 x 100 x 88 mm	80 mm	Ø 2.5 mm Light exit	CE cULus EAC WEEE
BGL001U	BGL 50A-008-S49	10 x 70 x 88 mm	50 mm	Ø 2.5 mm Light exit	CE cULus EAC WEEE
BGL001H	BGL 30A-008-S49	10 x 50 x 68 mm	30 mm	Ø 2.5 mm Light exit	CE cULus EAC WEEE
BGL0006	BGL 10A-008-S49	10 x 30 x 54 mm	10 mm	Ø 2.0 mm Light exit	CE cULus EAC WEEE
BGL002P	BGL 30B-001-S4	14 x 51 x 89 mm	30 mm	Ø 3.0 mm Light exit	cULus CE WEEE EAC

Common to all listed parts

Product group	Fork sensors and angle sensors
Principle of operation	Fork sensor
Principle of optical operation	Through-beam sensor
Beam characteristic	Divergent
ECLASS 14.0	27-27-09-09
ETIM 9.0	EC002720
UNSPSC 11	39121528
