Inductive full-metal sensors Parts
Compare Inductive full-metal sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Dimension | Style Housing | Range | Switching frequency |
|---|---|---|---|---|---|

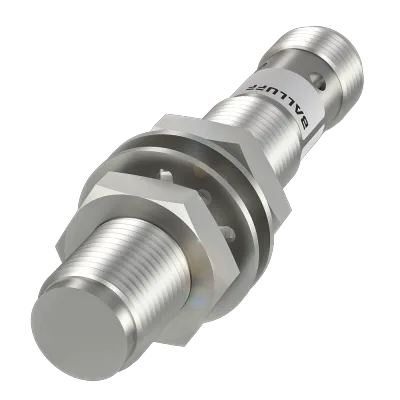

| BES02Z2 | BES M12EG1-PSC20N-S04G-S | Ø 12 x 65 mm | M12x1 | 2 mm | 15 Hz |
| BES02Z1 | BES M12EG1-POC20S-S04G-S | Ø 12 x 65 mm | M12x1 | 2 mm | 100 Hz |
| BES02Z0 | BES M12EG1-NSC20S-S04G-S | Ø 12 x 65 mm | M12x1 | 2 mm | 100 Hz |

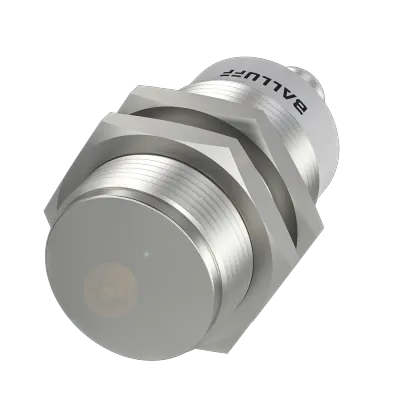

| BES02ZF | BES M30EG1-NSC80S-S04G-S | Ø 30 x 66 mm | M30x1.5 | 8 mm | 15 Hz |
| BES02Z6 | BES M18EG1-NSC50S-S04G-S | Ø 18 x 65 mm | M18x1 | 5 mm | 15 Hz |

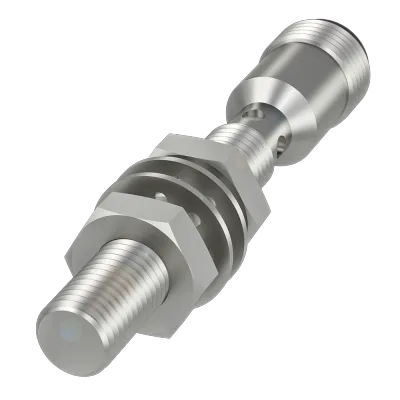

| BES02YY | BES M08EG1-NSC15S-S04G-S | Ø 8 x 65 mm | M8x1 | 1.5 mm | 20 Hz |

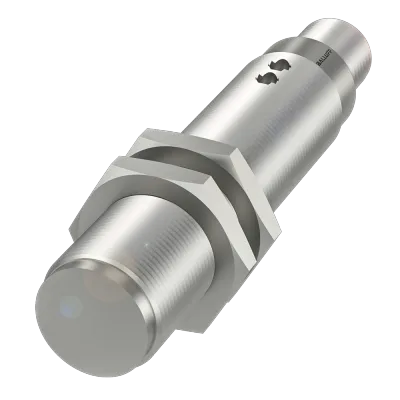

| BES02ZC | BES M18EP1-USU50S-S21G-S | Ø 18 x 90 mm | M18x1 | 5 mm | 15 Hz |
| BES02Z5 | BES M12EN1-USU20S-S21G-S | Ø 12 x 85 mm | M12x1 | 2 mm | 30 Hz |
| BES02ZH | BES M30EG1-PSC80N-S04G-S | Ø 30 x 65 mm | M30x1.5 | 8 mm | 10 Hz |
| BES02ZJ | BES M30EG1-PSC80S-S04G-S | Ø 30 x 65 mm | M30x1.5 | 8 mm | 10 Hz |
| BES02Z8 | BES M18EG1-PSC50N-S04G-S | Ø 18 x 65 mm | M18x1 | 5 mm | 30 Hz |
| BES02Z7 | BES M18EG1-POC50S-S04G-S | Ø 18 x 65 mm | M18x1 | 5 mm | 15 Hz |

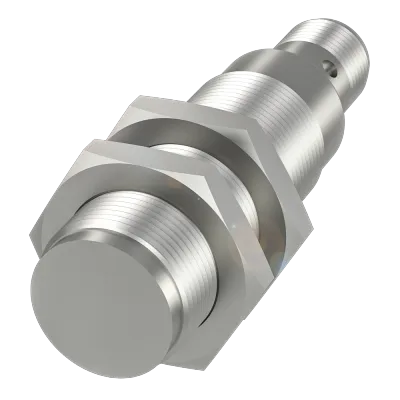

| BES02Z9 | BES M18EG1-PSC50S-S04G-S | Ø 18 x 65 mm | M18x1 | 5 mm | 15 Hz |
| BES02YZ | BES M08EG1-PSC15S-S04G-S | Ø 8 x 65 mm | M8x1 | 1.5 mm | 80 Hz |
Common to all listed parts
| Lifecycle | Active |
| Product group | Inductive full-metal sensors |
| Installation | for flush mounting |
| Housing material | Stainless steel |
| Material sensing surface | Stainless steel |
| IP rating | IP67 |
| ECLASS 14.0 | 27-27-40-01 |
| ETIM 9.0 | EC002714 |
