Weld-immune inductive sensors Parts
Compare Weld-immune inductive sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Dimension | Range | Switching frequency | Housing material |
|---|---|---|---|---|---|
| BES02KE | BES M18MI-PSC70B-S04G-W01 | Ø 18 x 65 mm | 7 mm | 50 Hz | Brass, PTFE coated |

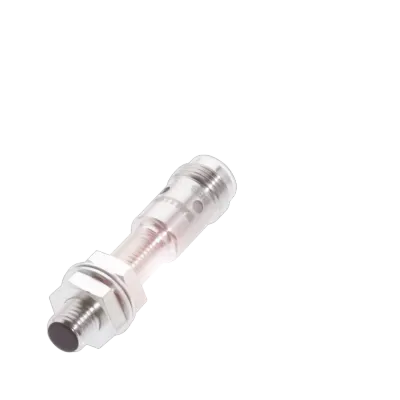

| BES00C0 | BES M08ME1-GSC20B-S04G-101 | Ø 8 x 50 mm | 2 mm | 1500 Hz | Brass |
| BES02PW | BES M08MH1-PSC30B-S04G-101 | Ø 8 x 66 mm | 3 mm | 1000 Hz | Brass, Chrome-plated |

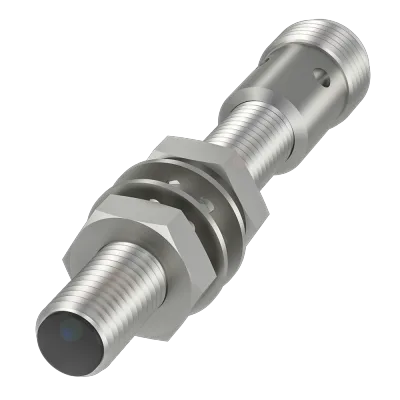

| BES02PU | BES M08MH1-PSC20B-S04G-101 | Ø 8 x 65 mm | 2 mm | 700 Hz | Brass, nickel-plated |
| BES02JN | BES 516-356-S4-W | Ø 12 x 61 mm | 4 mm | 1000 Hz | Stainless steel, PTFE coated |

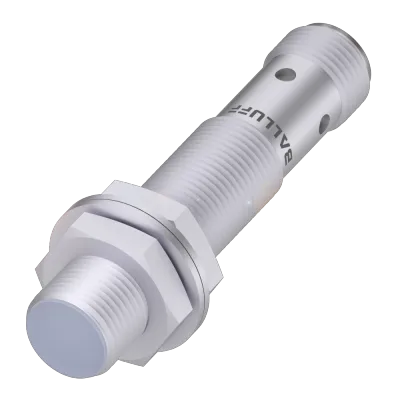

| BES02J5 | BES 516-325-S4-CW | Ø 12 x 61 mm | 2 mm | 1000 Hz | Stainless steel, PTFE coated |

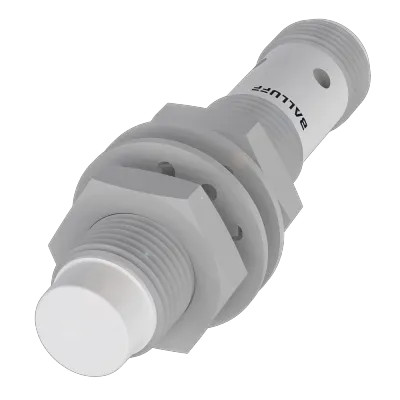

| BES02JM | BES 516-356-S4-CW | Ø 12 x 61 mm | 4 mm | 1000 Hz | Stainless steel, PTFE coated |
| BES02J6 | BES 516-325-S4-W | Ø 12 x 61 mm | 2 mm | 1000 Hz | Brass, PTFE coated |
Common to all listed parts
| Product group | Weld-immune inductive sensors |
| Connection | Connector, M12x1-Male, 4-pin |
| IP rating | IP67 |
| ECLASS 14.0 | 27-27-40-01 |
| ETIM 9.0 | EC002714 |
| UNSPSC 11 | 41111926 |
