Magnet for rod style Parts
Compare Magnet for rod style
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Material | Dimension | Inside diameter | Ambient temperature |
|---|---|---|---|---|---|

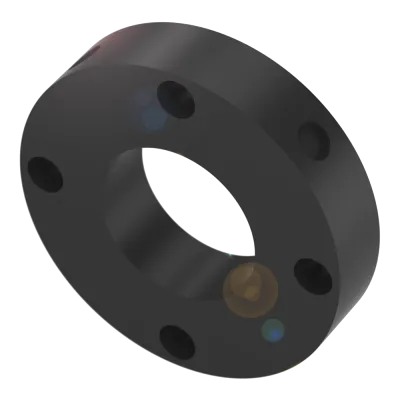

| BAM013U | BTL-P-1018-1R-PA | PA | Ø 37 x 8 mm | 18.0 mm | -40...100 °C |

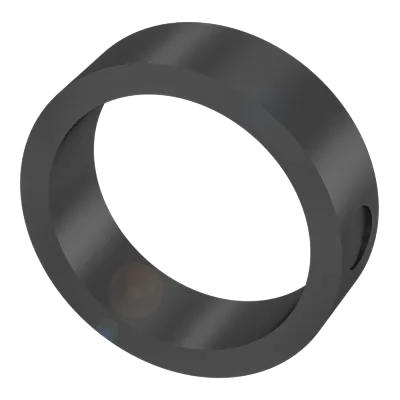

| BAM013H | BTL-P-0814-GR-PAF | PA 6 | Ø 17.2 x 5 mm | 14.0 mm | -40...60 °C |

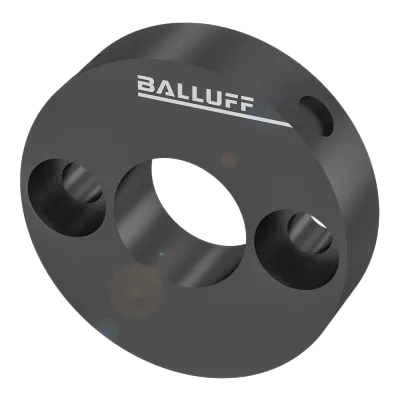

| BAM0144 | BTL2-P-3813-4S | — | — | — | — |

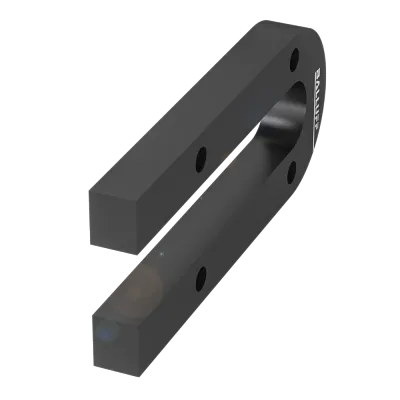

| BAM0143 | BTL-P-8013-20S | Aluminium | Ø 32 x 8 mm | 13.0 mm | -40...85 °C |

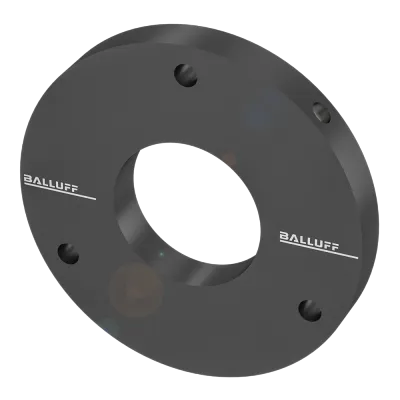

| BAM013Y | BTL-P-1028-15R | Aluminium | Ø 65 x 8 mm | 28.0 mm | -40...85 °C |

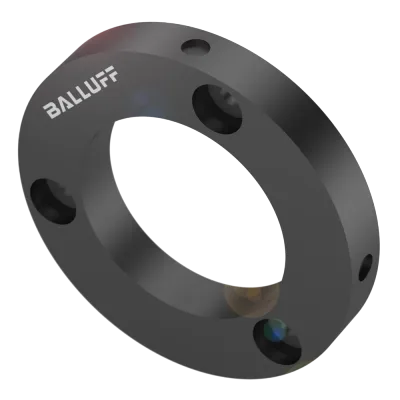

| BAM0140 | BTL-P-1034-12R | — | Ø 55 x 8 mm | 34.0 mm | -40...120 °C |

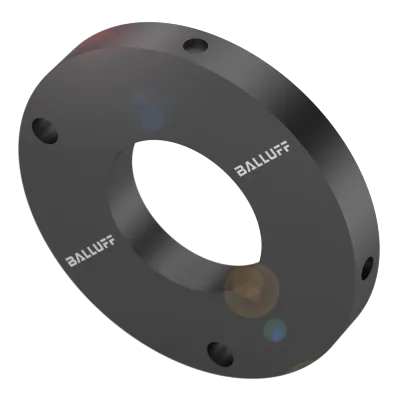

| BAM013Z | BTL-P-1030-15R | Aluminium Anodized | Ø 65 x 8 mm | 30.0 mm | -40...120 °C |

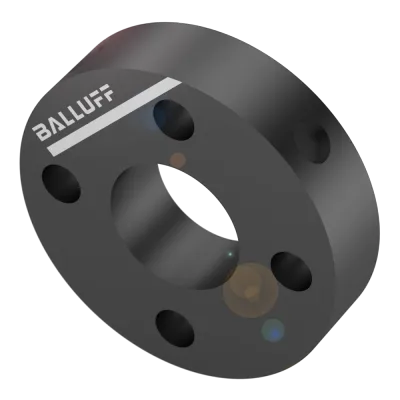

| BAM013T | BTL-P-1014-4R | Aluminium Anodized | Ø 33 x 8 mm | 13.5 mm | -40...100 °C |

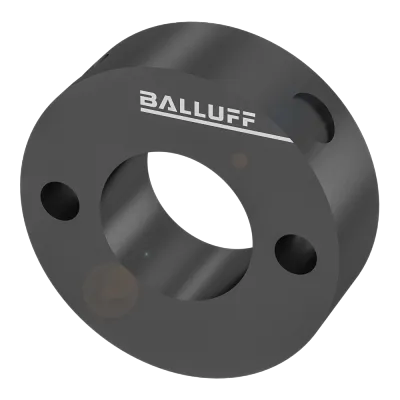

| BAM013K | BTL-P-1012-4R-PA | PA | Ø 25 x 8 mm | 12.0 mm | -40...100 °C |

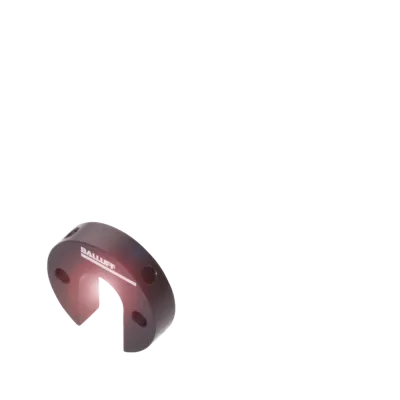

| BAM013P | BTL-P-1013-4S | Aluminium | Ø 32 x 8 mm | 13.0 mm | -40...100 °C |
| BAM013M | BTL-P-1013-4R-PA | PA | Ø 32 x 8 mm | 13.0 mm | -40...100 °C |
| BAM0145 | BTL2-S-4114-4K | — | Ø 41 x 52 mm | 14.0 mm | -20...120 °C |
Common to all listed parts
| Product group | Magnet for rod style |
| ECLASS 14.0 | 27-27-43-92 |
| ETIM 9.0 | EC002024 |
| UNSPSC 11 | 31162300 |
