Magnetostrictive linear position sensors in profile design Parts
Balluff
BTL02UMBTL5-A11-M0950-P-SA167-S32 – Magnetostrictive linear position sensors in profile design
Balluff
BTL02TNBTL5-A11-M0600-P-SA167-S32 – Magnetostrictive linear position sensors in profile design
Balluff
BTL02R7BTL5-A11-M0350-P-SA167-S32 – Magnetostrictive linear position sensors in profile design
Balluff

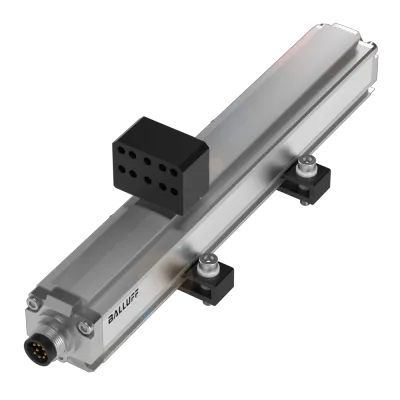

BTL02PUBTL5-A11-M0250-P-SA167-S32 – Magnetostrictive linear position sensors in profile design
Balluff
BTL02P6BTL5-A11-M0150-P-SA167-S32 – Magnetostrictive linear position sensors in profile design
Compare Magnetostrictive linear position sensors in profile design
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Connection | Measuring range | Resolution | Non-linearity max. |
|---|---|---|---|---|---|

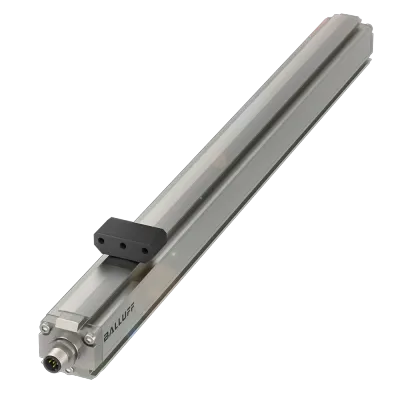

| BTL03CF | BTL5-H105-M0600-P-S92 | Connector, M12x1, 5-pin | 600 mm | ≤ 5 µm | ±30 µm |
| BTL0307 | BTL6-A110-M0305-P-S115 | Connector, M12x1, 8-pin | 305 mm | ≤ 2 µm | ±100 µm |
| BTL083F | BTL5-A11-M3048-R-S32 | Connector, M16x0.75, 8-pin | 3048 mm | ≤ 0.1 mV | ±0.02 % FS |
| BTL02UM | BTL5-A11-M0950-P-SA167-S32 | Connector, M16x0.75, 8-pin | 950 mm | ≤ 2 µm | ±0.02 % FS |
| BTL02TN | BTL5-A11-M0600-P-SA167-S32 | Connector, M16x0.75, 8-pin | 600 mm | ≤ 2 µm | ±0.02 % FS |
| BTL02R7 | BTL5-A11-M0350-P-SA167-S32 | Connector, M16x0.75, 8-pin | 350 mm | ≤ 2 µm | ±100 µm |
| BTL02PU | BTL5-A11-M0250-P-SA167-S32 | Connector, M16x0.75, 8-pin | 250 mm | ≤ 2 µm | ±100 µm |
| BTL02P6 | BTL5-A11-M0150-P-SA167-S32 | Connector, M16x0.75, 8-pin | 150 mm | ≤ 2 µm | ±100 µm |
Common to all listed parts
| Lifecycle | Active |
| Product group | Magnetostrictive linear position sensors in profile design |
| Style | Profile series |
| Mounting part | Mounting clamps |
| Housing material | Aluminium, Anodized |
| Operating voltage Ub | 20...28 VDC |
| Ambient temperature | -40...85 °C |
| IP rating | IP67 |
