Diffuse sensors Parts
Compare Diffuse sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Balluff alternatives | Dimension | Range | Approval/Conformity |
|---|---|---|---|---|---|
| BOS0040 | BOS Q08M-PS-RD11-02 | BOS01T2 | 8 x 44 x 8 mm | 0...55 mm | CE cULus EAC |
| BOS0006 | BOS 08M-PS-RD11-S49 | BOS01NN | Ø 8 x 57.5 mm | 0 m...55 mm | cULus CE EAC |

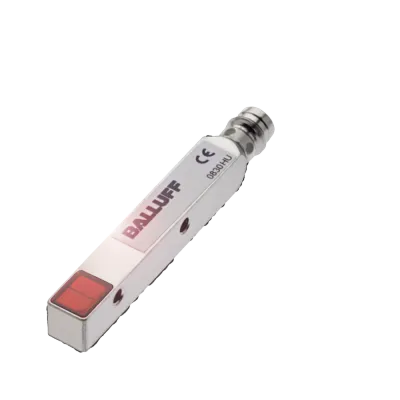

| BOS003W | BOS Q08M-NS-RD11-S49 | BOS01T3 | 8 x 59 x 8 mm | 0...55 mm | CE cULus EAC |
| BOS0003 | BOS 08M-PO-RD11-02 | BOS01RA | Ø 8 x 50 mm | 0 m...55 mm | cULus CE EAC |
| BOS014N | BOS 08M-NS-RD11-02 | BOS01RF | Ø 8 x 50 mm | 0 m...55 mm | CE cULus EAC |
| BOS014M | BOS 08M-NO-RD11-02 | BOS01RF | Ø 8 x 50 mm | 0 m...55 mm | CE cULus EAC |
| BOS003Z | BOS Q08M-PO-RD11-S49 | BOS01T0 | 8 x 59 x 8 mm | 0...55 mm | CE cULus EAC |
| BOS0005 | BOS 08M-PS-RD11-02 | BOS01RC | Ø 8 x 50 mm | 0 m...55 mm | cULus CE EAC |
| BOS008P | BOS 26K-PS-1HC-S4-C | — | 17 x 50 x 50 mm | 30...300 mm | CE cULus WEEE |
| BOS0041 | BOS Q08M-PS-RD11-S49 | BOS01RJ | 8 x 59 x 8 mm | 0...55 mm | cULus CE EAC |
| BOS002Y | BOS 21M-NUS-LH12-S4 | BOS0201 | 15 x 50 x 42.5 mm | 50...100 mm | CE cULus EAC |
| BOS002U | BOS 21M-NA-LD10-S4 | — | 15 x 50 x 42.5 mm | 0...600 mm | CE cULus EAC WEEE |
| BOS0032 | BOS 21M-PA-LD10-S4 | — | 15 x 50 x 42.5 mm | 0...600 mm | CE UKCA cULus WEEE |
| BOS0034 | BOS 21M-PUS-LH12-S4 | BOS01Z9 | 15 x 50 x 42.5 mm | 50...100 mm | CE cULus EAC |
| BOS002Z | BOS 21M-NUS-RH12-S4 | BOS01ZY | 15 x 50 x 42.5 mm | 20...200 mm | CE cULus EAC |
| BOS0035 | BOS 21M-PUS-RH12-S4 | BOS01Z8 | 15 x 50 x 42.5 mm | 20...200 mm | CE UKCA cULus WEEE |
| BOS002T | BOS 21M-NA-ID10-S4 | — | 15 x 50 x 42.5 mm | 50...2000 mm | CE UKCA cULus WEEE |
| BOS002W | BOS 21M-NA-RD10-S4 | — | 15 x 50 x 42.5 mm | 10...1000 mm | CE cULus EAC WEEE |
| BOS0031 | BOS 21M-PA-ID10-S4 | — | 15 x 50 x 42.5 mm | 50...2000 mm | CE UKCA cULus WEEE |
| BOS0033 | BOS 21M-PA-RD10-S4 | BOS027N | 15 x 50 x 42.5 mm | 10...1000 mm | CE cULus EAC WEEE |
| BOS0002 | BOS 08M-NS-RD11-S49 | BOS01RE | Ø 8 x 57.5 mm | 0 m...55 mm | cULus CE EAC |
| BOS0001 | BOS 08M-NO-RD11-S49 | BOS01RE | Ø 8 x 57.5 mm | 0 m...55 mm | cULus CE EAC |
| BOS0004 | BOS 08M-PO-RD11-S49 | BOS01R9 | Ø 8 x 57.5 mm | 0 m...55 mm | cULus CE EAC |
| BOS002M | BOS 18M-WS-7PB-B1-L-03 | — | Ø 18 x 88 mm | 0...200 mm | CE EAC WEEE |
Common to all listed parts
| Product group | Diffuse sensors |
| Principle of operation | Photoelectric sensor |
| Material sensing surface | PMMA |
| ECLASS 14.0 | 27-27-09-03 |
| UNSPSC 11 | 39121528 |
