Retroreflective sensors Parts
Compare Retroreflective sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Series | Dimension | Range | Approval/Conformity |
|---|---|---|---|---|---|

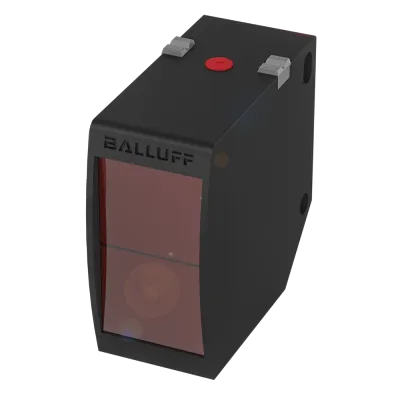

| BOS016W | BOS 23K-NU-LR10-S4 | 23K | 23 x 51 x 52.4 mm | 0...14 m | Ecolab CE cULus WEEE |
| BOS016U | BOS 23K-PU-LR10-S4 | 23K | 23 x 51 x 52.4 mm | 0...14 m | Ecolab CE cULus WEEE |
| BOS016T | BOS 23K-GI-RR10-S4 | 23K | 23 x 51 x 52.4 mm | 0...12 m | Ecolab CE cULus WEEE |
| BOS016R | BOS 23K-NU-RR10-S4 | 23K | 23 x 51 x 52.4 mm | 0...14 m | Ecolab CE cULus WEEE |

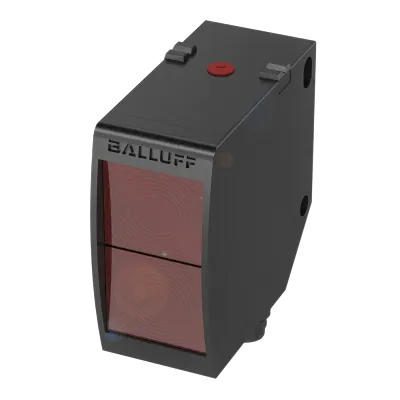

| BOS016P | BOS 23K-PU-RR10-S4 | 23K | 23 x 51 x 52.4 mm | 0...14 m | Ecolab CE cULus WEEE |
| BOS00U0 | BOS Q08M-NO-PR11-02 | Q08M | 8 x 44 x 8 mm | 0...550 mm | cULus CE EAC WEEE |
| BOS00U2 | BOS Q08M-NS-PR11-02 | Q08M | 8 x 44 x 8 mm | 0...550 mm | CE cULus EAC WEEE |

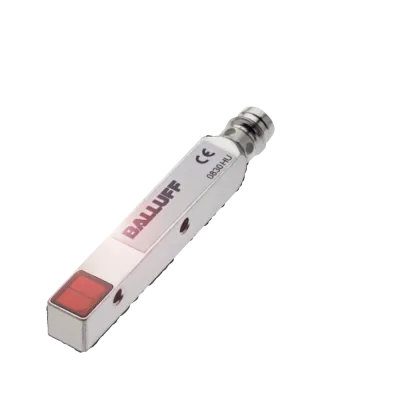

| BOS00U1 | BOS Q08M-NO-PR11-S49 | Q08M | 8 x 59 x 8 mm | 0...550 mm | cULus CE EAC WEEE |
| BOS008K | BOS 26K-PA-1LQE-SA2-S4-C | 26K | 17 x 50 x 50 mm | 0...6 m | CE cULus WEEE |
| BOS008J | BOS 26K-PA-1LQE-SA1-S4-C | 26K | 17 x 50 x 50 mm | 0...7 m | CE cULus WEEE |
| BOS00U3 | BOS Q08M-PO-PR11-02 | Q08M | 8 x 44 x 8 mm | 0...550 mm | cULus CE EAC |

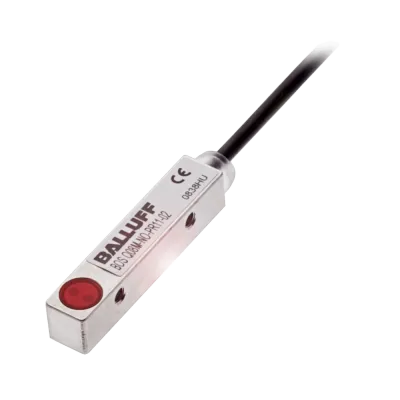

| BOS00U5 | BOS Q08M-PS-PR11-02 | Q08M | 8 x 44 x 8 mm | 0...550 mm | cULus CE EAC |
| BOS00U4 | BOS Q08M-PO-PR11-S49 | Q08M | 8 x 59 x 8 mm | 0...550 mm | cULus CE EAC |
| BOS0150 | BOS Q08M-NS-PR11-S49 | Q08M | 8 x 59 x 8 mm | 0...550 mm | CE cULus EAC WEEE |
| BOS008L | BOS 26K-PA-1LQP-S4-C | 26K | 17 x 50 x 50 mm | 0...25 m | cULus CE WEEE |

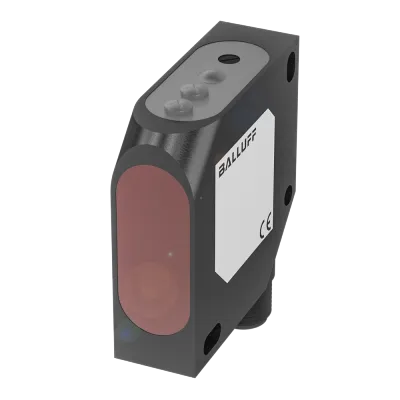

| BOS0087 | BOS 26K-NA-1LQP-S4-C | 26K | 17 x 50 x 50 mm | 0...25 m | cULus CE WEEE |
| BOS014Z | BOS 08M-NS-PR11-02 | 08M | Ø 8 x 50 mm | 0 m...550 mm | CE cULus EAC |
| BOS014Y | BOS 08M-NO-PR11-02 | 08M | Ø 8 x 50 mm | 0 m...550 mm | CE cULus EAC WEEE |
| BOS00RA | BOS 08M-PS-PR11-02 | 08M | Ø 8 x 50 mm | 0 m...550 mm | cULus CE EAC |

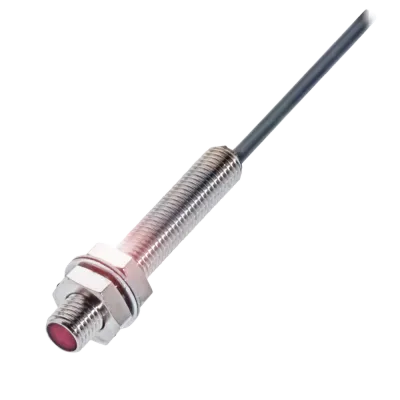

| BOS00R8 | BOS 08M-PO-PR11-02 | 08M | Ø 8 x 50 mm | 0 m...550 mm | cULus CE EAC |
| BOS00U6 | BOS Q08M-PS-PR11-S49 | Q08M | 8 x 59 x 8 mm | 0...550 mm | cULus CE EAC |

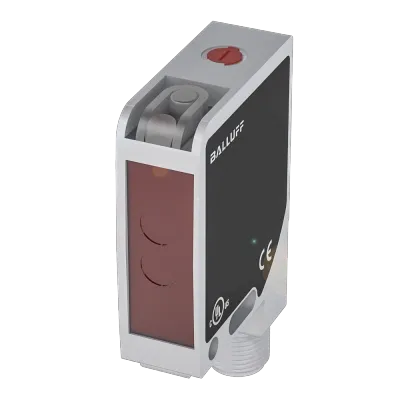

| BOS00TK | BOS 21M-NA-PT14-S4 | 21M | 15 x 50 x 42.5 mm | 0...2 m | cULus CE EAC WEEE |
| BOS00TY | BOS 21M-PA-PT14-S4 | 21M | 15 x 50 x 42.5 mm | 0...2 m | cULus CE EAC WEEE |

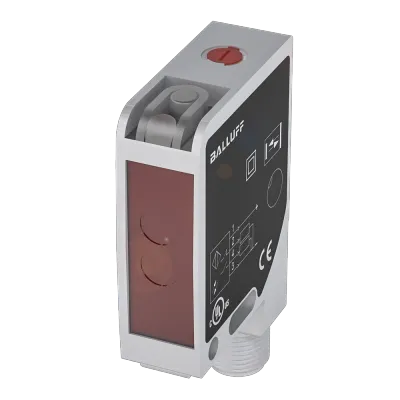

| BOS00TM | BOS 21M-PA-LR10-S4S | 21M | 15 x 50 x 42.5 mm | 0...20 m | CE UKCA cULus WEEE |
Common to all listed parts
| Product group | Retroreflective sensors |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Retroreflective sensor |
| Material sensing surface | PMMA |
| ECLASS 14.0 | 27-27-09-02 |
| UNSPSC 11 | 39121528 |
