Photoelectric distance sensors Parts
Compare Photoelectric distance sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Light spot size | Range | Connection | Approval/Conformity |
|---|---|---|---|---|---|
| BOD0007 | BOD 26K-LB06-S92-C | 1.5 x 3.25 mm at 100 mm | 30...100 mm, adjustable | Connector, M12x1-Male, 5-pin | CE cULus WEEE |
| BOD0008 | BOD 26K-LB07-S92-C | 2 x 4.5 mm at 300 mm | 80...300 mm, adjustable | Connector, M12x1-Male, 5-pin | CE cULus WEEE |

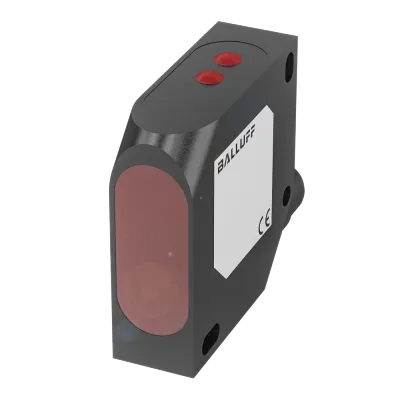

| BOD0005 | BOD 26K-LB04-S115-C | 1.5 x 3.25 mm at 100 mm | 30...100 mm, adjustable | Connector, M12x1-Male, 8-pin | CE cULus WEEE |
| BOD000C | BOD 26K-LBR04-S115-C | 1.5 x 3.25 mm at 100 mm | 30...100 mm, adjustable | Connector, M12x1-Male, 8-pin | CE cULus WEEE |
| BOD0006 | BOD 26K-LB05-S115-C | 2 x 4.5 mm at 300 mm | 80...300 mm, adjustable | Connector, M12x1-Male, 8-pin | CE cULus WEEE |

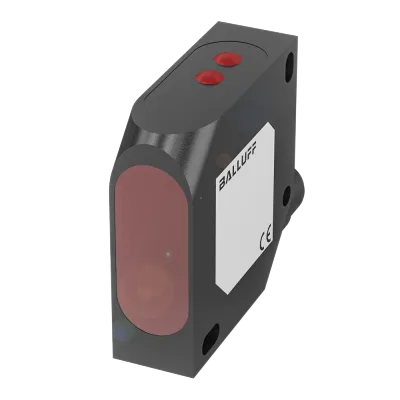

| BOD000E | BOD 26K-LBR05-S115-C | 2 x 4.5 mm at 300 mm | 80...300 mm, adjustable | Connector, M12x1-Male, 8-pin | CE cULus WEEE |
| BOD0014 | BOD 66M-LB04-S92-C | 3 x 12 mm at 2 m | 200...2000 mm | Connector, M12x1-Male | CE cULus EAC WEEE |
| BOD0013 | BOD 66M-LA04-S92-C | 3 x 12 mm at 2 m | 200...2000 mm | Connector, M12x1-Male | CE cULus |
| BOD000H | BOD 6K-RA01-S75-C | 5 x 5 mm at 60 mm | 40...80 mm | Connector, M8x1-Male, 4-pin | cULus CE EAC WEEE |
| BOD000F | BOD 6K-RA01-C-02 | 5 x 5 mm at 60 mm | 40...80 mm | Cable, 2.00 m, PVC | cULus CE |
| BOD0003 | BOD 26K-LA02-C-06 | Ø 0.8 mm at 65 mm | 45...85 mm | Cable, 6.00 m, PVC | CE cULus WEEE |
| BOD0004 | BOD 26K-LA02-S4-C | Ø 0.8 mm at 65 mm | 45...85 mm | Connector, M12x1-Male, 4-pin | CE cULus WEEE |

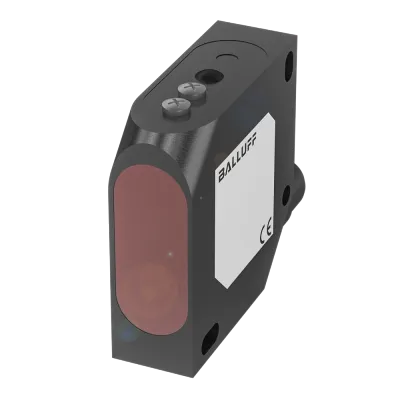

| BOD0002 | BOD 26K-LA01-S4-C | Ø 0.8 mm at 65 mm | 45...85 mm | Connector, M12x1-Male, 4-pin | CE cULus WEEE |

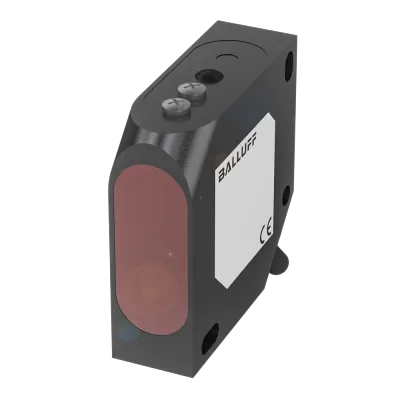

| BOD0001 | BOD 26K-LA01-C-06 | Ø 0.8 mm at 65 mm | 45...85 mm | Cable, 6.00 m, PVC | CE cULus WEEE |
Common to all listed parts
| Lifecycle | Active |
| Product group | Photoelectric distance sensors |
| Principle of operation | Photoelectric distance sensor |
| Principle of optical operation | Triangulation |
| Beam characteristic | Divergent |
| ECLASS 14.0 | 27-27-09-16 |
| ETIM 9.0 | EC001825 |
| UNSPSC 11 | 39121528 |
