Mounting bracket for photoelectric sensors Parts
Compare Mounting bracket for photoelectric sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Version | Material | Dimension | Mounting part |
|---|---|---|---|---|---|
| BAM01FM | BAM MB-XO-007-B05-4 | Mounting brackets 1 adjustable axis | Stainless steel (1.4301) | 44.3 x 58 x 65 mm | Threads |
| BAM01FK | BAM MB-XO-006-B05-4 | Mounting brackets 2 adjustable axes | Stainless steel | 25 x 40 x 64.5 mm | Threads |
| BAM01E8 | BAM MB-XO-005-B04-4 | 2 adjustable axes | Stainless steel (1.4301) | 32 x 70 x 98.5 mm | Screw M6 |
| BAM00PT | BOS 11-HW-1 | Mounting bracket | Stainless steel | 32 x 45.5 x 66.6 mm | Threads |

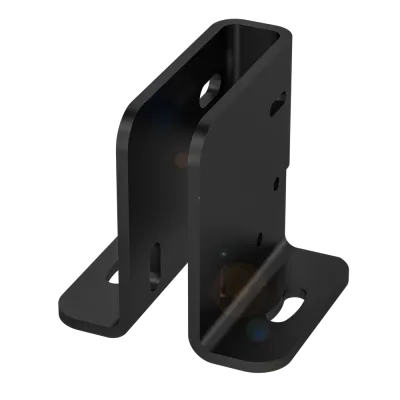

| BAM0155 | BOS 26-HW-7 | Mounting bracket | Steel black painted | 70 x 70.5 x 70 mm | Screw M6 |

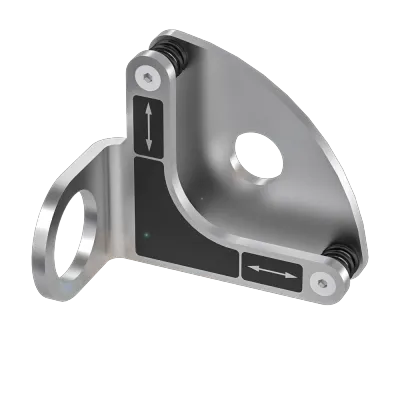

| BAM003E | BMS AD-M-002-D12/D12 | Adjusting unit | 1.4301 stainless steel | 57 x 45 x 50 mm | Screws, clamps |
| BAM00P4 | BLT 31M-HW-1 | Mounting bracket | Aluminum Anodized | 31.8 x 50.8 x 101.6 mm | Screw M6 |
| BAM0038 | BMS AD-M-002-D12/D18 | Adjusting unit | 1.4301 stainless steel | 57 x 45 x 50 mm | — |
| BAM00UF | BOS 5-HW-9 | Mounting bracket | Steel Zinc plated | 29 x 56 x 65 mm | Threads |
| BAM00UE | BOS 5-HW-8 | Mounting bracket | Steel Zinc plated | 36.8 x 40.5 x 12.6 mm | Screw M4 |

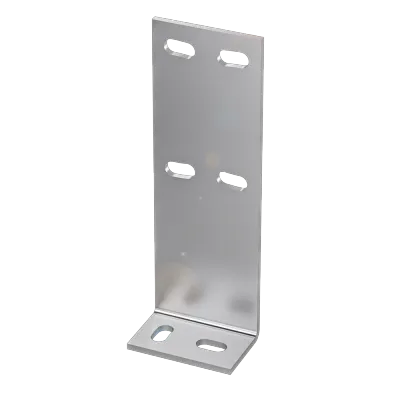

| BAM00UC | BOS 5-HW-7 | Mounting bracket | Stainless steel | 14 x 21.5 x 64 mm | Screw M3 |
| BAM00TE | BOS 21-HW-4 | 1 adjustable axis | Steel Zinc plated | 57 x 88 x 20 mm | Screw M6 |

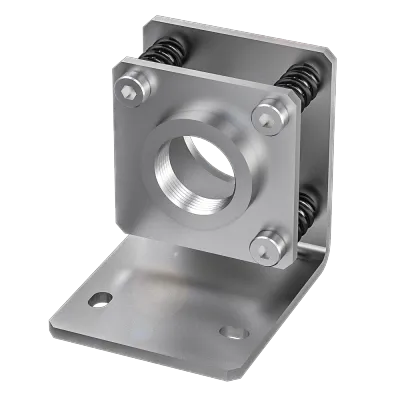

| BAM00T2 | BOS 18,0-HW-6 | Mounting brackets 3 adjustable axes | Steel Zinc plated | 42 x 50 x 50 mm | Threads |
| BAM00T1 | BOS 18,0-HW-4 | 1 adjustable axis | Steel Zinc plated | 35 x 96 x 2 mm | Screw M4 |
| BAM00T0 | BOS 18,0-HW-3 | Mounting brackets 2 adjustable axes | Steel Zinc plated | 25 x 43 x 32 mm | Threads |

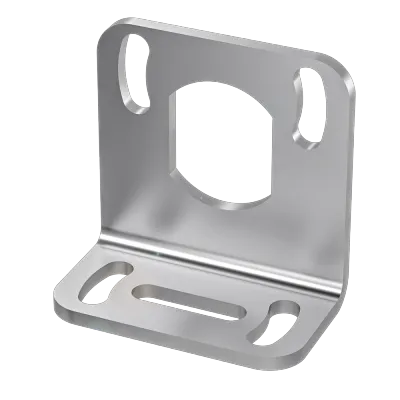

| BAM00RZ | BOS 18,0-HW-2 | 2 adjustable axes | Steel Zinc plated | 20 x 35 x 35 mm | Screw M4 |
| BAM00T6 | BOS 2-HW-3 | Mounting brackets 2 adjustable axes | Steel Zinc plated | 11 x 24 x 18 mm | Threads |
| BAM00T5 | BOS 2-HW-2 | Mounting brackets 2 adjustable axes | Steel Zinc plated | 11 x 17 x 36 mm | Threads |
| BAM00T4 | BOS 2-HW-1 | Mounting brackets 3 adjustable axes | ABS | 17.5 x 25 x 44.7 mm | Threads |

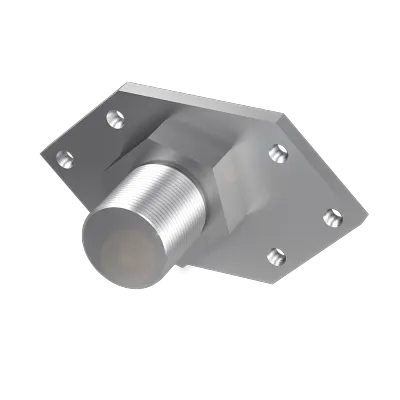

| BAM00T7 | BOS 21-AD-1 | Holder 1 adjustable axis | Aluminum Anodized | 50 x 48 x 30 mm | Threads |

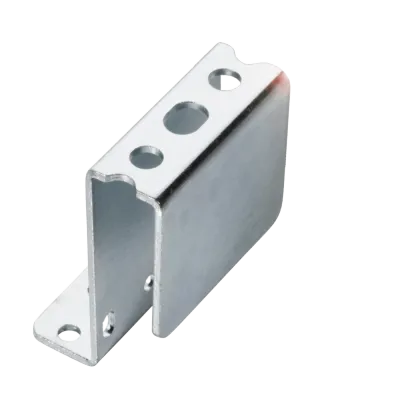

| BAM00TC | BOS 21-HW-3 | 2 adjustable axes | Steel Zinc plated | 38 x 50 x 62 mm | Screw M4 Screw M5 |

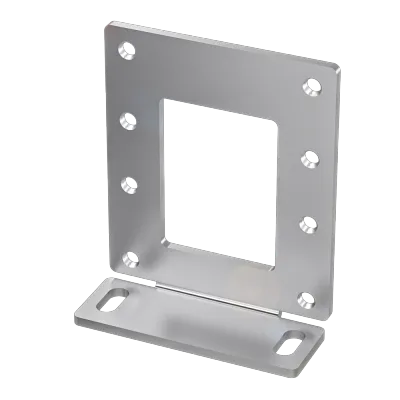

| BAM00UA | BOS 5-HW-6 | Mounting brackets 1 adjustable axis | Steel Zinc plated | 20 x 50 x 61 mm | Threads |
| BAM00U9 | BOS 5-HW-5 | Mounting brackets 1 adjustable axis | Steel Zinc plated | 20 x 35 x 44.2 mm | Threads |
| BAM00U8 | BOS 5-HW-4 | Mounting brackets 1 adjustable axis | Steel Zinc plated | 28 x 58 x 113 mm | Threads |
Common to all listed parts
| Product group | Mounting bracket for photoelectric sensors |
| ETIM 9.0 | EC003015 |
| UNSPSC 11 | 31162300 |
