Reflectors and reflective foils Parts
Compare Reflectors and reflective foils
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Version | Dimension | Sensing surface | Mounting part |
|---|---|---|---|---|---|
| BAM01CN | BOS R-37 | Cube corner 4 mm | 100 x 100 x 9.2 mm | 92.5 cm² | Adhesive Screw M3 |

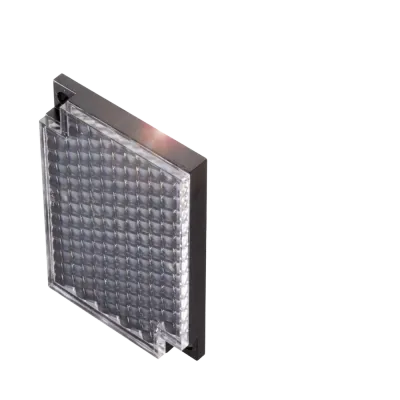

| BAM01CM | BOS R-36 | Cube corner 4 mm | 40 x 60 x 7.5 mm | 19.9 cm² | Adhesive Screw M3 |

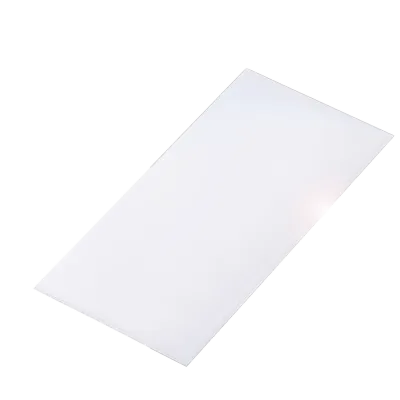

| BAM01CF | BOS R-40 | Reflective foil, micro-pyramids | 50 x 100 x 0.6 mm | 50.0 cm² | Self-adhesive |

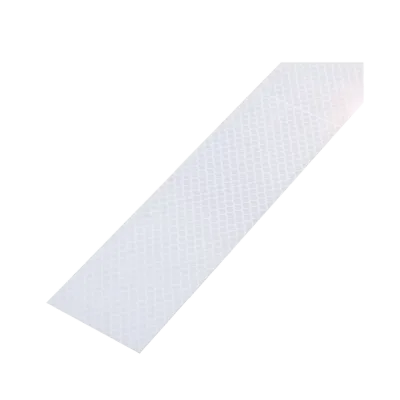

| BAM00W9 | BOS R-35 | Reflective film, micro-glass balls | 200 x 200 x 0.5 mm | 400.0 cm² | Self-adhesive |

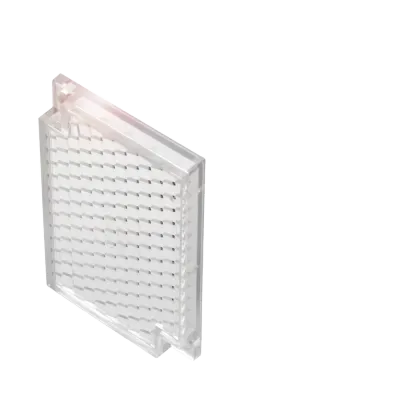

| BAM00W8 | BOS R-34 | Cube corner 4 mm | 40 x 60 x 7.5 mm | 19.9 cm² | Adhesive Screw M3 |
| BAM00W7 | BOS R-33 | Cube corner 4 mm | 19 x 60 x 6.1 mm | 4.9 cm² | Adhesive Screw M4 |

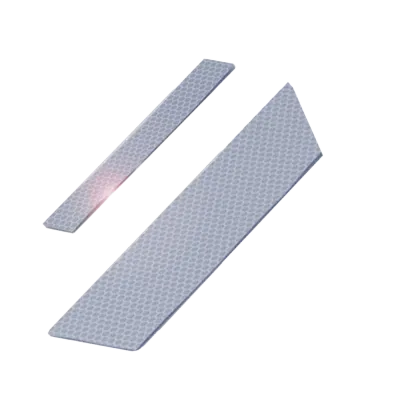

| BAM00W6 | BOS R-32-0,40 | Reflective foil, micro-pyramids | 40 x 90 x 0.5 mm | 45.0 cm² | Self-adhesive |

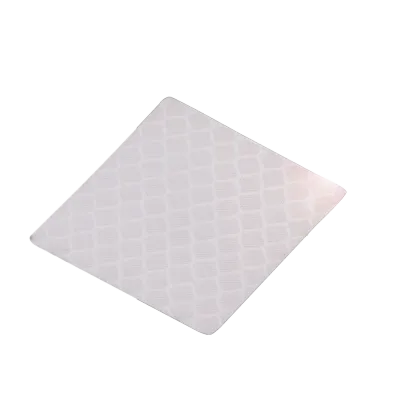

| BAM00W5 | BOS R-30 | Reflective foil, micro-pyramids | 35 x 40 x 0.6 mm | 14.0 cm² | Self-adhesive |
| BAM00W3 | BOS R-29 | Cube corner 2.5 mm | 12.7 x 33 x 12.5 mm | 3.9 cm² | Adhesive Screw M3 |

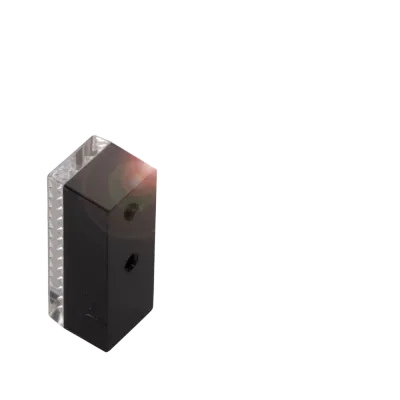

| BAM00W2 | BOS R-28 | Cube corner 2.5 mm | 12.7 x 33 x 12.5 mm | 3.9 cm² | Adhesive Screw M3 |

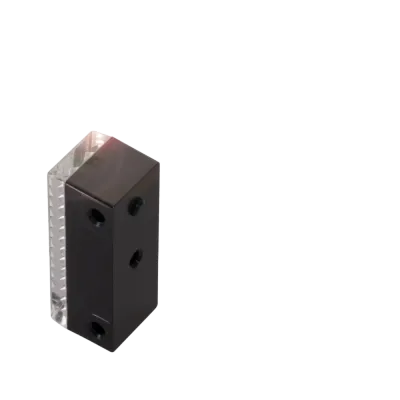

| BAM00W1 | BOS R-27 | Cube corner 2.5 mm | 12.7 x 33 x 12.5 mm | 3.9 cm² | Adhesive Screw M3 |

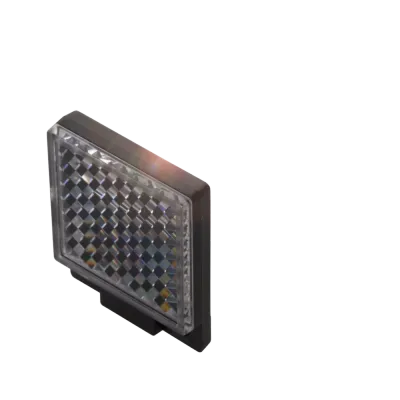

| BAM00W0 | BOS R-26 | Cube corner 4 mm | 35.3 x 42.3 x 8.3 mm | 11.9 cm² | Adhesive Screw M3 |

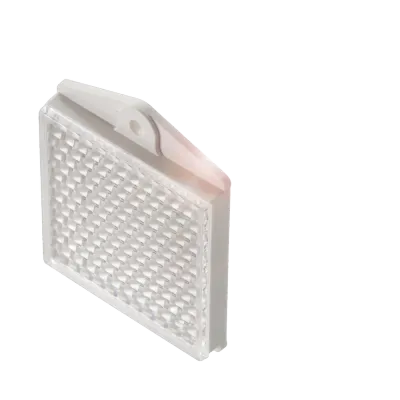

| BAM00UZ | BOS R-25 | Cube corner 4 mm | 51 x 72 x 9 mm | 22.6 cm² | Adhesive Screw M4 |

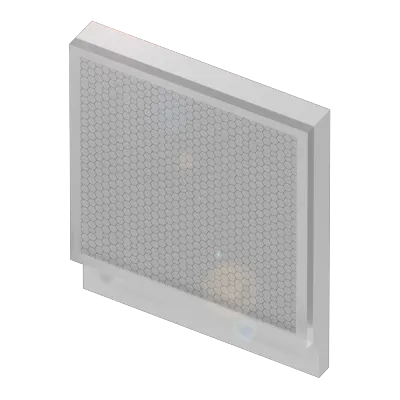

| BAM00UY | BOS R-22 | Cube corner 1.2 mm | 51 x 61 x 7.5 mm | 22.6 cm² | Adhesive Screw M4 |

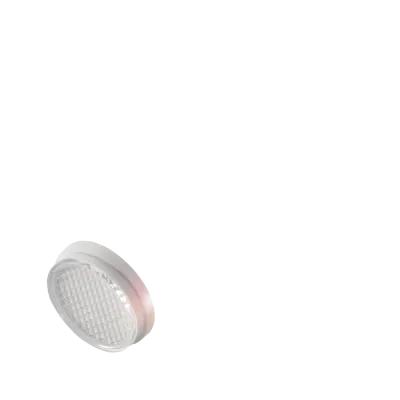

| BAM00UT | BOS R-16 | Cube corner 1.2 mm | Ø 21 x 5.2 mm | 1.9 cm² | Adhesive |

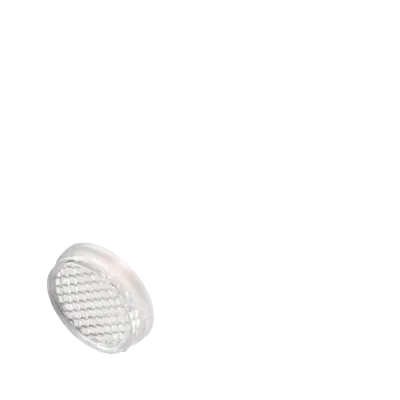

| BAM00UR | BOS R-15 | Cube corner 2 mm | Ø 21 x 5.2 mm | 2.4 cm² | Glue |
| BAM00UP | BOS R-14 | Cube corner 4 mm | Ø 51 x 7.4 mm | 17.7 cm² | Diameter 6.0 mm |
| BAM00UM | BOS R-12 | Cube corner 0.9 mm | 14 x 23 x 4.9 mm | 1.7 cm² | Adhesive Screw M1.5 |

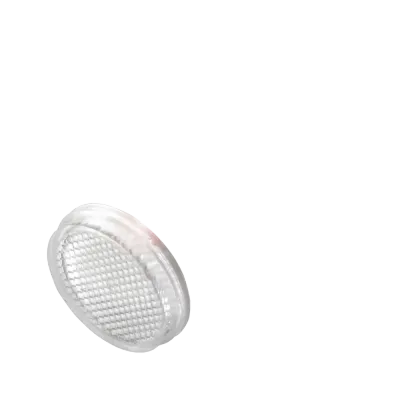

| BAM00UN | BOS R-13 | Cube corner 1.2 mm | 25 × 5.5 mm | 3.3 cm² | Adhesive |

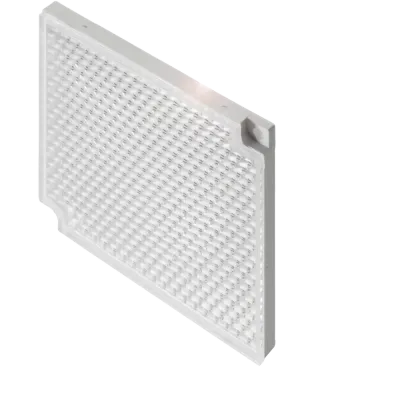

| BAM00UL | BOS R-11 | Cube corner 4 mm | 84 x 84 x 9.1 mm | 63.7 cm² | Adhesive Screw M3 |
| BAM019L | BOS R-7-1 | — | — | — | Self-adhesive |
Common to all listed parts
| Product group | Reflectors and reflective foils |
| ECLASS 14.0 | 27-27-36-01 |
| ETIM 9.0 | EC002467 |
| UNSPSC 11 | 39121551 |
