Inductive sensors for hazardous areas Parts
Compare Inductive sensors for hazardous areas
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Dimension | Style Housing | Switching frequency | Approval/Conformity |
|---|---|---|---|---|---|

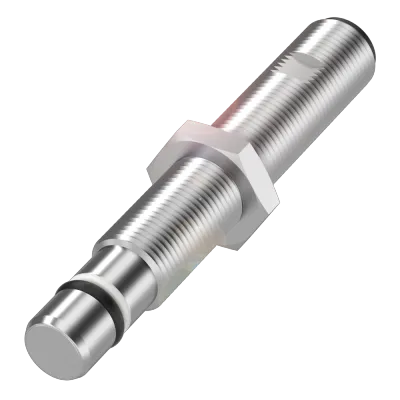

| BHS004M | BES 516-300-S321-NEX-S4-D | Ø 12 x 78 mm | M12x1 | 1000 Hz | CE ATEX IECEx WEEE |

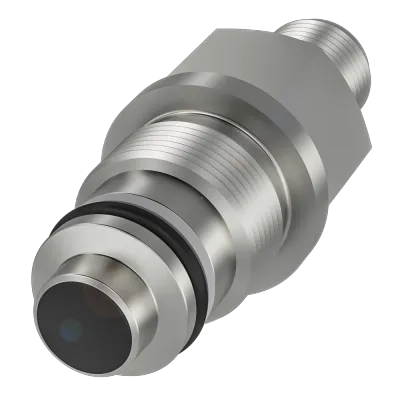

| BHS004H | BES 516-300-S308-NEX-S4-D | Ø 18 x 55 mm | M18x1 | 2000 Hz | CE ATEX WEEE |

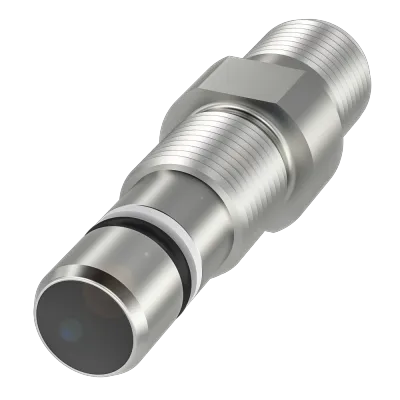

| BHS0031 | BES 516-300-S262-NEX-S4-D | Ø 12 x 50 mm | M12x1 | 2000 Hz | CE ATEX WEEE |
| BHS002W | BES 516-300-S249-NEX-S4-D | Ø 12 x 56 mm | M12x1 | 2000 Hz | CE ATEX IECEx WEEE |
| BHS001K | BES 516-300-S135-NEX-S4-D | Ø 12 x 78 mm | M12x1 | 1000 Hz | CE ATEX IECEx WEEE |

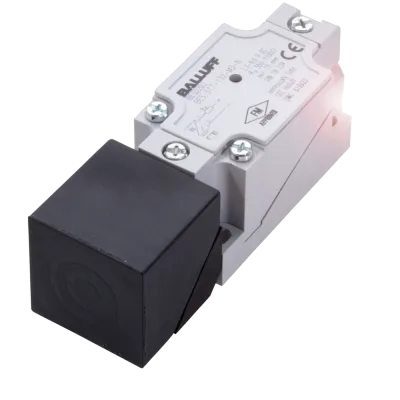

| BES0203 | BES 517-132-M3-N | 120 x 40 x 40 mm | 40x40 | 100 Hz | CE FMS-File J.I.0R1HO.AX |
| BES02LL | BES 516-327-E3-N-PU-05 | Ø 30 x 30 mm | M30x1.5 | 300 Hz | CE EAC WEEE |
Common to all listed parts
| Lifecycle | Active |
| Product group | Inductive sensors for hazardous areas |
| Installation | for flush mounting |
| ECLASS 14.0 | 27-27-40-01 |
| ETIM 9.0 | EC002714 |
| UNSPSC 11 | 41111926 |
