Universal brackets Parts
Compare Universal brackets
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Lifecycle | Type designation | Version | Material | Dimension |
|---|---|---|---|---|---|

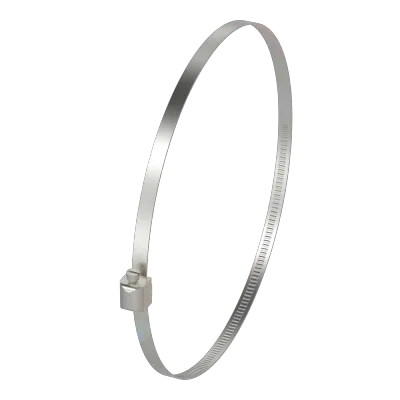

| BAM01F4 | Active | SCHLAUCHSCHELLE BMF GR. 9 | Ø 108-119 mm | Stainless steel (1.4301) | — |

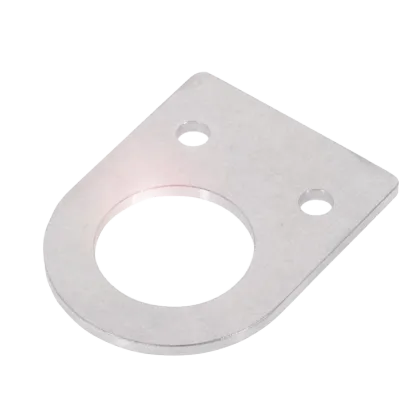

| BAM01E0 | Active | BAM MB-XA-004-M30-5 | — | 1.4571 stainless steel | 55.1 x 50 x 3 mm |

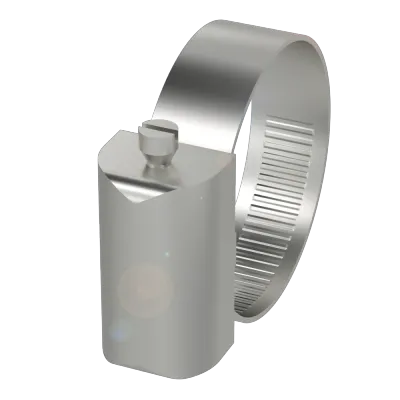

| BAM001K | Active | SCHLAUCHSCHELLE BMF GR. 12 | Ø 20-32 mm | Stainless steel | — |

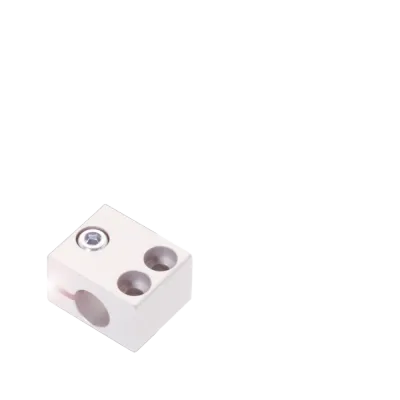

| BAM00AA | Active | BES 08,0-KB-7 | Mounting block | Aluminum Anodized | 16 x 12 x 20 mm |

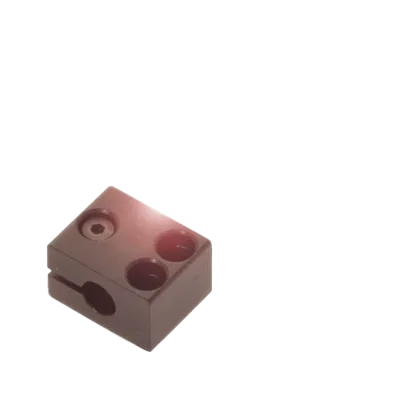

| BAM009F | Active | BES 06,5-KB-7 | Mounting block | Aluminum Anodized | 16 x 12 x 20 mm |

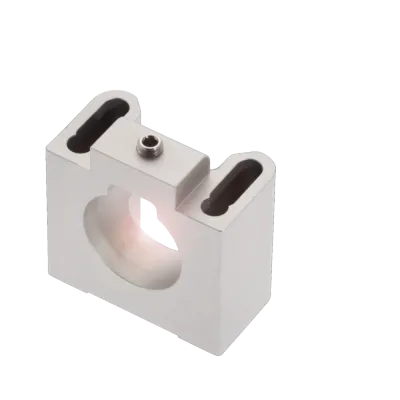

| BAM00JZ | Discontinued by Balluff | BES Q40-HW-3 | Mounting block | Aluminum Anodized | 22 x 40 x 40 mm |

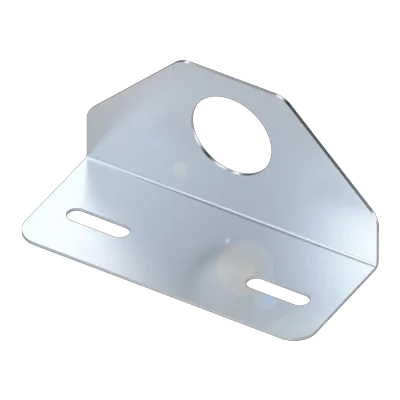

| BAM015C | Active | BES 516-MB-30 | Mounting bracket | Stainless steel | 48 x 55 x 108 mm |
| BAM015A | Active | BES 516-MB-18 | Mounting bracket | Stainless steel | 29 x 34 x 76 mm |
| BAM0159 | Active | BES 516-MB-12 | Mounting bracket | Stainless steel | 29 x 34 x 76 mm |

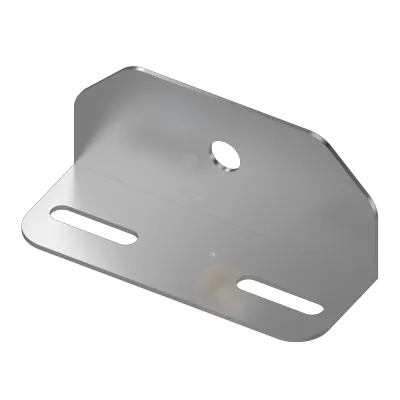

| BAM0158 | Active | BES 516-MB-08 | Mounting bracket | Stainless steel | 29 x 34 x 76 mm |
| BAM00C4 | Active | BES 12,0-BS-1 | Mounting clamp | PA 6 | 32 x 12 x 20 mm |

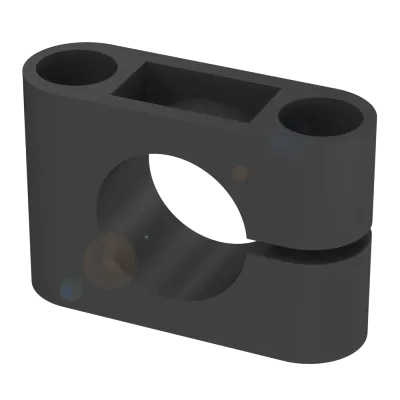

| BAM00H7 | Active | BES 20,0-BS-1 | Mounting clamp | PA 6 | 45 x 15 x 30 mm |

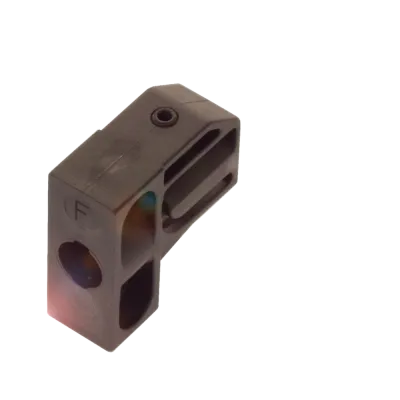

| BAM00C8 | Active | BES 12,0-KB-2-F | Mounting clamp | PA 6 | 40 x 16 x 40 mm |

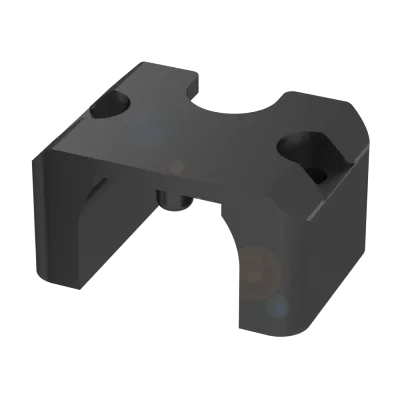

| BAM00RW | Active | BOS 18,0-BS-3 | Mounting bracket | PA | 22 x 30.7 x 16 mm |
| BAM002H | Active | BMS AD-P-001-12/10 | Reducing sleeve 12 to 10 mm | POM | — |

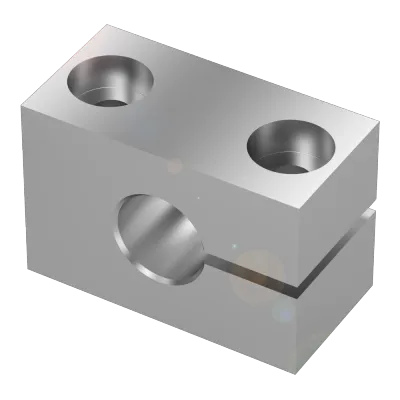

| BAM00CJ | Active | BES 12,0-KB-6 | Mounting clamp | Aluminum Anodized | 19.2 x 25.4 x 38.1 mm |

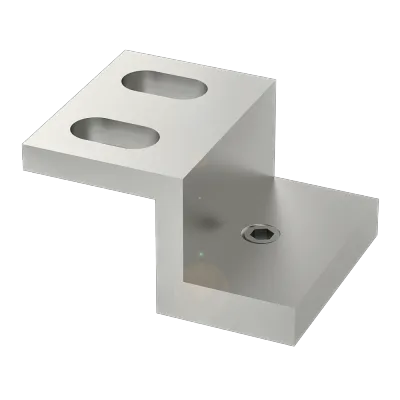

| BAM00NF | Active | BES Q08-HW-4 | Mounting bracket | Aluminum Anodized | 20 x 10.9 x 16 mm |

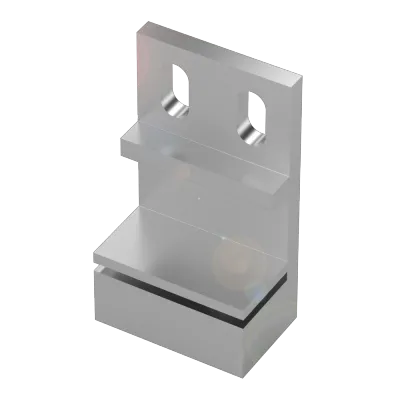

| BAM00NH | Active | BES Q08-KH-1 | Mounting bracket | Aluminum Anodized | 28.2 x 10 x 16 mm |

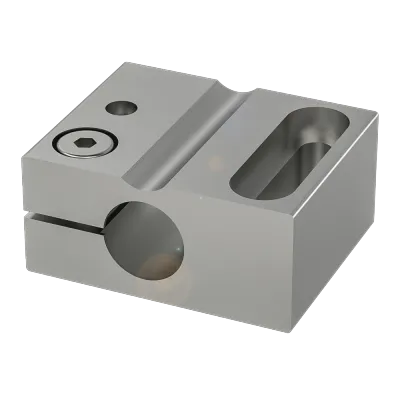

| BAM00AW | Active | BES 08,1-KB-4-F | Mounting clamp with positive stop | Aluminum | 28 x 30 x 12 mm |

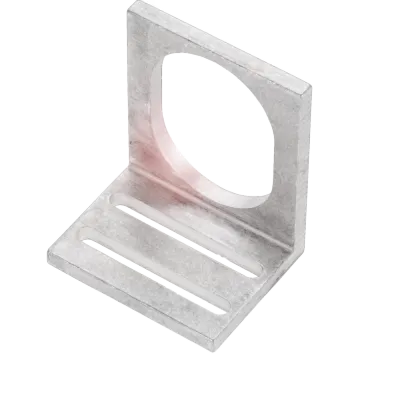

| BAM00JK | Active | BES 36-HW-1 | — | Aluminum | 52.5 x 60 x 40 mm |

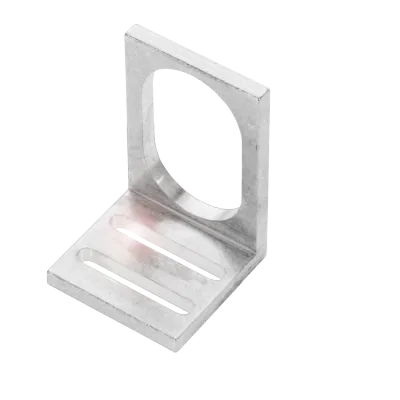

| BAM00HH | Active | BES 30-HW-1 | Mounting bracket | Aluminum | 40 x 40 x 60 mm |

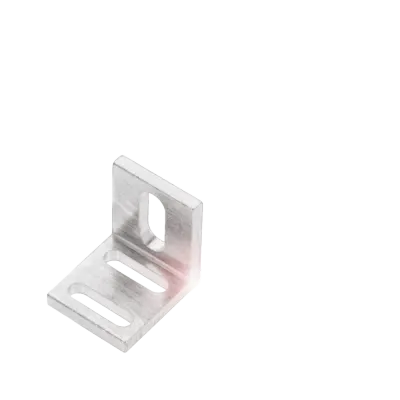

| BAM009U | Active | BES 08-HW-1 | Mounting bracket | Aluminum | 25 x 30 x 30 mm |

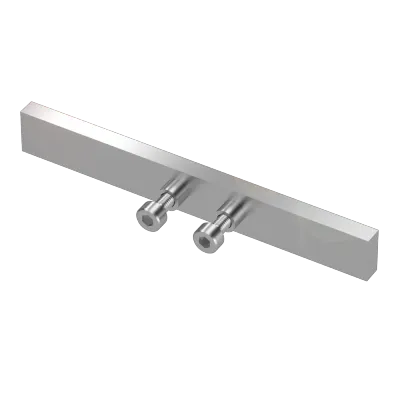

| BAM00K2 | Active | BES R01-FK-1 | Holder | Stainless steel | — |

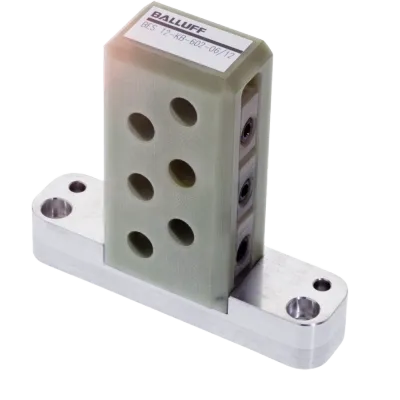

| BAM00CM | Active | BES 12,0-KB-602-06/12 | Mounting block | Aluminum GFK | 120 x 105 x 30 mm |
Common to all listed parts
| Product group | Universal brackets |
| ECLASS 14.0 | 27-27-37-01 |
| ETIM 9.0 | EC003015 |
| UNSPSC 11 | 31162300 |
