Single-ended cordsets Parts
Compare Single-ended cordsets
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Number of conductors | Conductor cross-section | Cable jacket, color |
|---|---|---|---|---|
| FHW02JF | A65-6703-10-001 | 10 | 24 AWG | black |

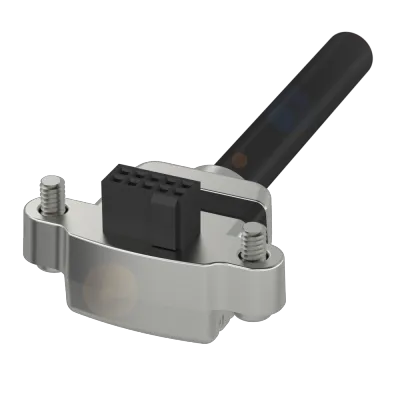

| FHW02JE | A65-6703-5-001 | 10 | 24 AWG | black |
| FHW02JC | A65-6700-10-001 | 10 | 24 AWG | black |

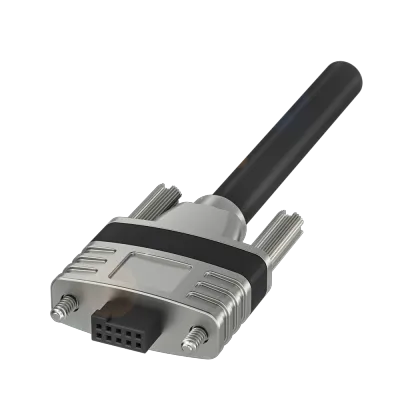

| FHW02JA | A65-6700-5-001 | 10 | 24 AWG | black |
| FHW028N | 15134-1403 | — | — | — |
| FHW0299 | 819026 | 12 | — | — |
| FHW029A | 808198 | 5 | 28 AWG | — |
| FHW00Y6 | KS-HR12S-OPEN-AC1 10.0 | 12 | 24 AWG | black |
| FHW0112 | KS-HR12S-OPEN-AC1 05.0 | 12 | 24 AWG | black |
| FHW029N | 2.401.146.050 | — | — | — |
| FHW029P | 2.401.146.010 | — | — | — |
| FHW029R | 2.401.149.050 | 12 | 0.14 mm² | gray |
| FHW029T | 2.401.150.200 | 12 | 0.14 mm² | gray |
| FHW029U | 2.401.150.100 | 12 | 0.14 mm² | gray |
| FHW029W | 2.401.150.050 | 12 | 0.14 mm² | gray |
| FHW029Y | 2.401.150.025 | 12 | 0.14 mm² | gray |
Common to all listed parts
| Lifecycle | Active |
| Product group | Single-ended cordsets |
| ECLASS 14.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| UNSPSC 11 | 26121604 |
