C-mount lenses Parts
Compare C-mount lenses
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Distortion | Angle of view, horizontal | Angle of view, vertical | Dimension |
|---|---|---|---|---|---|
| FHW02CN | LM75FC24M | 0.16 % | 10.7 ° | 8.0 ° | Ø 45 x 89.4 mm |

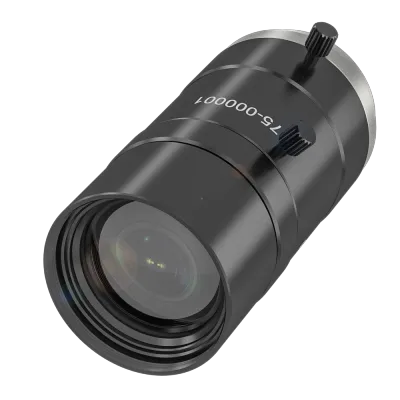

| FHW028T | M112FM75 | 0.03 % | 8.1 ° | 6.1 ° | Ø 29 x 65.3 mm |

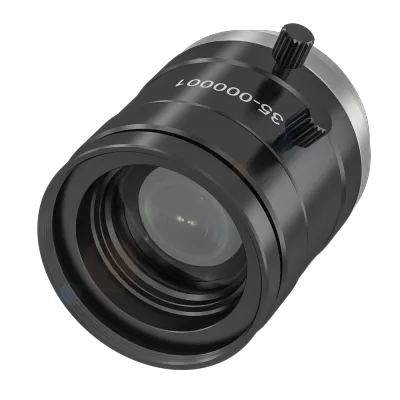

| FHW028W | M112FM35 | 0.05 % | 17.3 ° | 13.1 ° | Ø 29 x 39.1 mm |

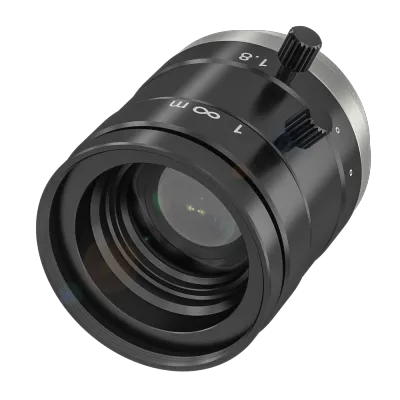

| FHW028Y | M112FM25 | -0.09 % | 24.1 ° | 18.2 ° | Ø 29 x 37 mm |

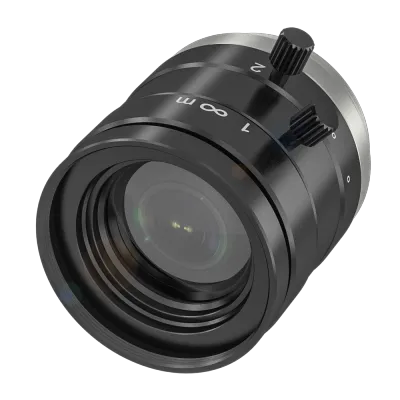

| FHW028Z | M112FM16 | -0.56 % | 37.4 ° | 28.4 ° | Ø 29 x 31.2 mm |

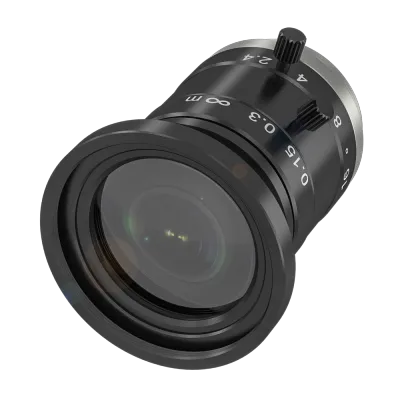

| FHW0290 | M112FM08 | -1.47 % | 70.3 ° | 54.9 ° | Ø 37 x 42.3 mm |
| FHW0291 | M118FM50 | -0.10 % | 8.3 ° | 6.2 ° | Ø 29 x 62.6 mm |

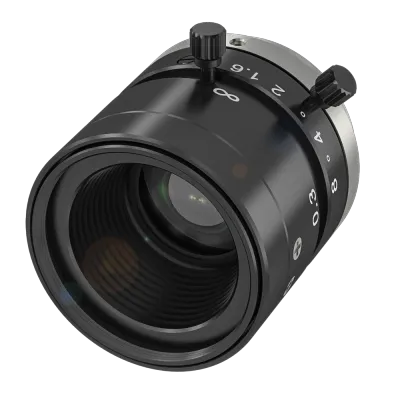

| FHW0292 | M118FM25 | -0.20 % | 16.6 ° | 12.5 ° | Ø 29 x 35 mm |

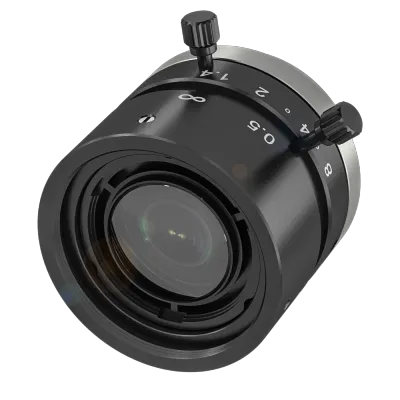

| FHW02C5 | M118FM16 | -0.70 % | 25.9 ° | 19.5 ° | Ø 29 x 24.1 mm |

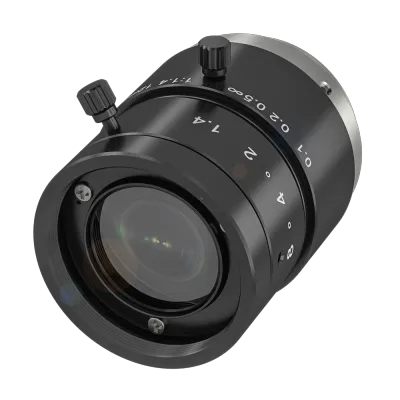

| FHW0293 | M118FM12 | -1.20 % | 34.2 ° | 25.8 ° | Ø 29 x 38.6 mm |

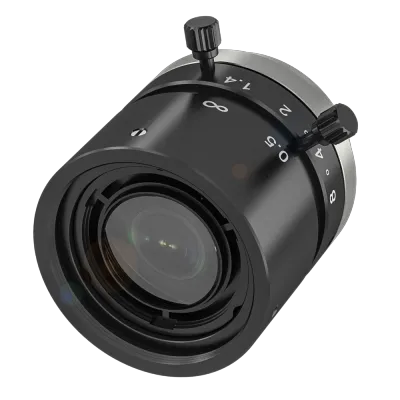

| FHW0294 | M118FM08 | -2.00 % | 50.8 ° | 38.6 ° | Ø 29 x 27.3 mm |
| FHW0295 | M118FM06 | -3.00 % | 66.1 ° | 50.8 ° | Ø 37 x 44.25 mm |

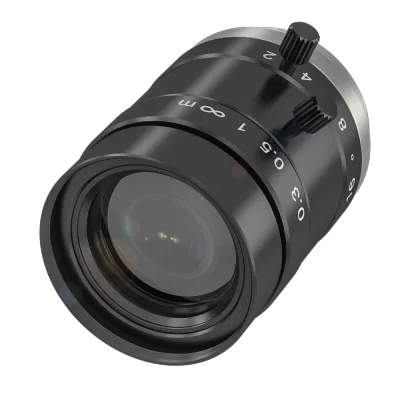

| FHW0296 | M112FM12 | -0.97 % | 49.2 ° | 37.6 ° | Ø 29 x 38.5 mm |

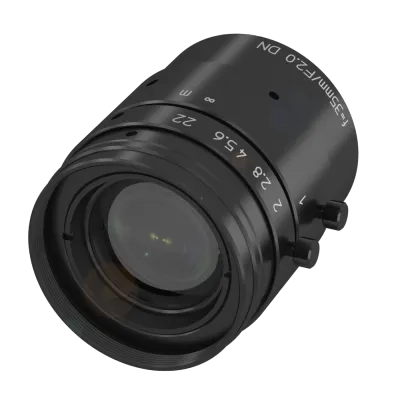

| FHW005F | LM35JC5M-IR | -0.30 % | 13.9 ° | 10.5 ° | Ø 34 x 47.3 mm |
| FHW005H | LM25JC5M-IR | -0.30 % | 20.1 ° | 15.1 ° | Ø 34 x 49.1 mm |

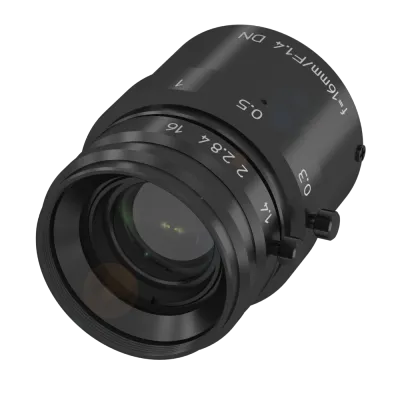

| FHW005J | LM16JC5M-IR | -0.80 % | 30.9 ° | 23.2 ° | Ø 34 x 44.5 mm |
| FHW005L | LM35JC5MC | -0.02 % | 14.0 ° | 10.6 ° | Ø 32 x 34.5 mm |

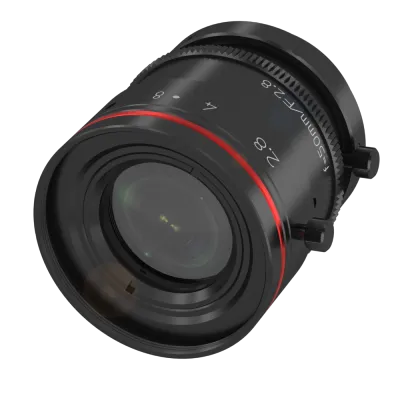

| FHW005K | LM50JC5MC | -0.01 % | 10.0 ° | 7.5 ° | Ø 32 x 43.7 mm |

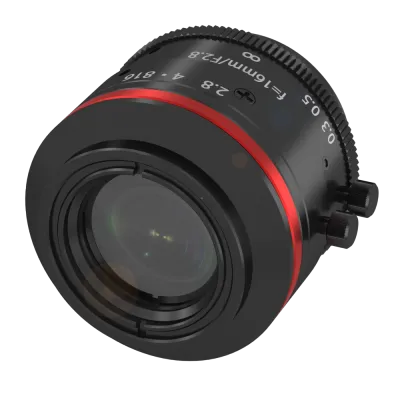

| FHW005N | LM16JC5MC | -0.09 % | 30.9 ° | 23.4 ° | Ø 32 x 27.7 mm |

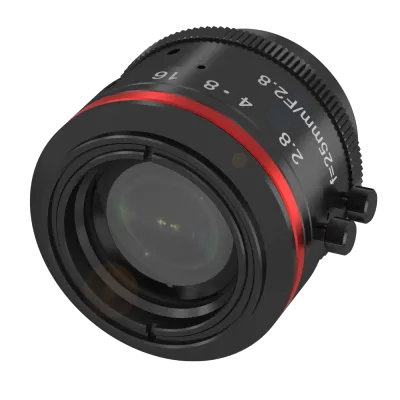

| FHW005M | LM25JC5MC | 0.06 % | 20.0 ° | 15.0 ° | Ø 32 x 28 mm |

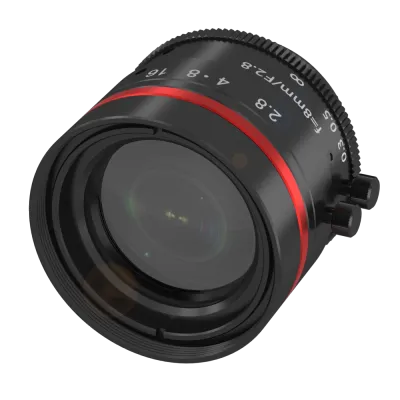

| FHW005R | LM8JC5MC | -0.85 % | 57.6 ° | 44.4 ° | Ø 32 x 27.4 mm |

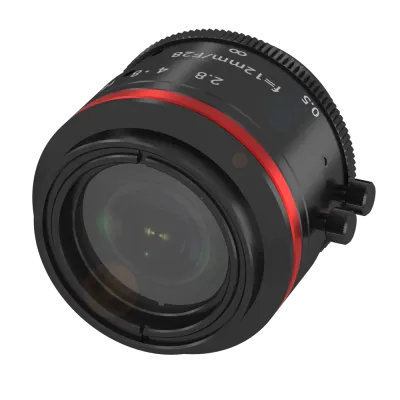

| FHW005P | LM12JC5MC | -0.43 % | 41.0 ° | 31.2 ° | Ø 32 x 27.5 mm |

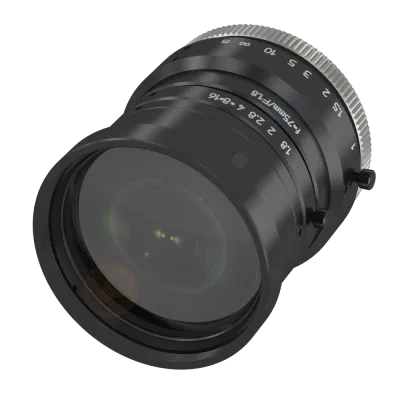

| FHW005T | LM75HC | 0.20 % | 9.7 ° | 7.3 ° | Ø 49 x 63.4 mm |

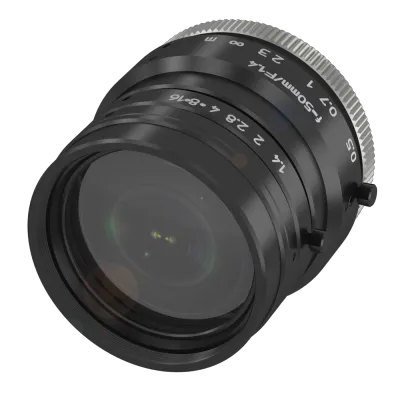

| FHW005U | LM50HC | 0.05 % | 14.5 ° | 10.8 ° | Ø 49 x 54.4 mm |
Common to all listed parts
| Lifecycle | Active |
| Product group | C-mount lenses |
| Filter | no |
| Back focal length | 17.526 mm |
| Lens mount | C-Mount |
| Additional text | The angle of view was determined at the maximum permissible sensor size (4:3). |
| ECLASS 14.0 | 27-31-02-03 |
| ETIM 9.0 | EC003015 |
