Optics: Apertures, lenses, deflectors Parts

Balluff

BAM01HJ

BAM AP-US-002-M18-O – Optics: Apertures, lenses, deflectors

Balluff

BAM01ET

BAM AP-US-001-M12-O – Optics: Apertures, lenses, deflectors

Balluff

BAM01ER

BAM BD-US-001-D32-4 – Optics: Apertures, lenses, deflectors

Balluff

BAM01EP

BAM BD-US-001-D20-4 – Optics: Apertures, lenses, deflectors

Balluff

BAM01A7

BAM OF-VS-001-D-RX100 – Optics: Apertures, lenses, deflectors

Balluff

BAM00P7

BOD 63-SG-2 – Optics: Apertures, lenses, deflectors

Balluff

BAM00P5

BLT 31M-PK-1 – Optics: Apertures, lenses, deflectors

Balluff

BAM0120

BKT M-PK-1 – Optics: Apertures, lenses, deflectors

Balluff

BAM00NT

BFO 04-FL-2 – Optics: Apertures, lenses, deflectors

Balluff

BAM00NR

BFO 04-FL-1 – Optics: Apertures, lenses, deflectors

Balluff

BAM00NN

BFO 02-PK-1 – Optics: Apertures, lenses, deflectors

Balluff

BAM00NP

BFO 02-UK-1 – Optics: Apertures, lenses, deflectors

Balluff

BAM00P3

BKT M-PK-5 – Optics: Apertures, lenses, deflectors

Balluff

BAM00P2

BKT M-PK-4 – Optics: Apertures, lenses, deflectors

Balluff

BAM0121

BKT M-PK-2 – Optics: Apertures, lenses, deflectors

Balluff

BAM00U4

BOS 5-BL-9 – Optics: Apertures, lenses, deflectors

Balluff

BAM00U3

BOS 5-BL-8 – Optics: Apertures, lenses, deflectors

Balluff

BAM00U2

BOS 5-BL-7 – Optics: Apertures, lenses, deflectors

Balluff

BAM00U1

BOS 5-BL-6 – Optics: Apertures, lenses, deflectors

Balluff

BAM00U0

BOS 5-BL-5 – Optics: Apertures, lenses, deflectors

Balluff

BAM00TZ

BOS 5-BL-4 – Optics: Apertures, lenses, deflectors

Balluff

BAM00TY

BOS 5-BL-3 – Optics: Apertures, lenses, deflectors

Balluff

BAM00TW

BOS 5-BL-2 – Optics: Apertures, lenses, deflectors

Balluff

BAM00TU

BOS 5-BL-1 – Optics: Apertures, lenses, deflectors

Compare Optics: Apertures, lenses, deflectors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Type designation	Version	Dimension	Sensing surface	Mounting part
BAM01HJ	BAM AP-US-002-M18-O	Focusing attachment	Ø 25 x 80 mm	Ø 11 mm	Thread M18x1
BAM01ET	BAM AP-US-001-M12-O	Focusing attachment	Ø 17 x 40 mm	Ø 5 mm	Thread M12x1

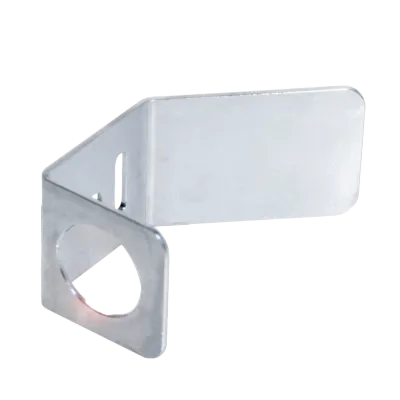

BAM01ER	BAM BD-US-001-D32-4	90° deflector, open	50 x 105 x 50 mm	Deflection surface	Nut M30x1.5 Screw M5
BAM01EP	BAM BD-US-001-D20-4	90° deflector, open	50 x 105 x 50 mm	Deflection surface	Nut M18x1 Screw M5

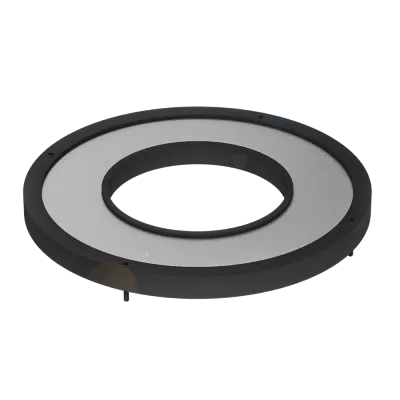

BAM01A7	BAM OF-VS-001-D-RX100	Diffusing plate, 1 aperture	Ø 116 x 8 mm	Ring Ø 104/Ø 64 mm	Screw M1.6
BAM00P7	BOD 63-SG-2	Optical filter	Ø 32 x 7 mm	Bandpass for red light	Threads M30.5x0.5
BAM00P5	BLT 31M-PK-1	Add-on lens f= 50 mm	Ø 22.2 x 10.4 mm	convex, 1 aperture	Thread M18x1
BAM0120	BKT M-PK-1	Add-on lens f= 18 mm	Ø 25 x 11 mm	convex, 1 aperture	Thread M20x0.7
BAM00NT	BFO 04-FL-2	Attachment lens	Ø 6.5 x 15 mm	convex, 1 aperture	M4 thread
BAM00NR	BFO 04-FL-1	Attachment lens	Ø 6.5 x 12 mm	convex, 1 aperture	M4 thread
BAM00NN	BFO 02-PK-1	Attachment lens	Ø 4 x 11.2 mm	convex, 1 aperture	Threads M2.6x0.45
BAM00NP	BFO 02-UK-1	90° lens, 1 mirror in housing	Ø 4 x 4 mm	Prism, cylindrical	Threads M2.6x0.45
BAM00P3	BKT M-PK-5	Add-on lens f= 50 mm	Ø 32 x 25 mm	convex, 1 aperture	Thread M20x0.7
BAM00P2	BKT M-PK-4	Intermediate ring with lens	Ø 25 x 15.5 mm	convex, 1 aperture	Thread M20x0.7
BAM0121	BKT M-PK-2	Add-on lens f= 9 mm	Ø 25 x 8.5 mm	convex, 1 aperture	Thread M20x0.7
BAM00U4	BOS 5-BL-9	Round aperture	8.2 x 32.1 x 6.1 mm	Ø 2 mm	Snap-on
BAM00U3	BOS 5-BL-8	Round aperture	8.2 x 32.1 x 6.1 mm	Ø 1 mm	Snap-on
BAM00U2	BOS 5-BL-7	Round aperture	8.2 x 32.1 x 6.1 mm	Ø 0.5 mm	Snap-on
BAM00U1	BOS 5-BL-6	Horizontal slit aperture	8.2 x 32.1 x 6.1 mm	Width 2.0 mm	Snap-on
BAM00U0	BOS 5-BL-5	Horizontal slit aperture	8.2 x 32.1 x 6.1 mm	Width 1.0 mm	Snap-on
BAM00TZ	BOS 5-BL-4	Horizontal slit aperture	8.2 x 32.1 x 6.1 mm	Width 0.5 mm	Snap-on

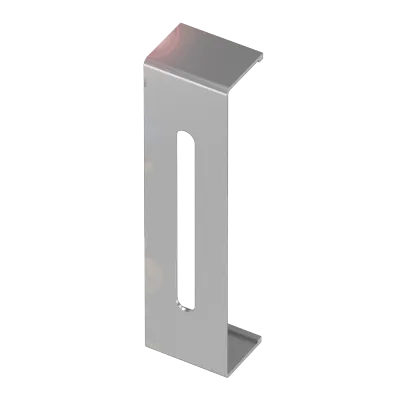

BAM00TY	BOS 5-BL-3	Vertical slit aperture	8.2 x 32.1 x 6.1 mm	Width 2.0 mm	Snap-on
BAM00TW	BOS 5-BL-2	Vertical slit aperture	8.2 x 32.1 x 6.1 mm	Width 1.0 mm	Snap-on
BAM00TU	BOS 5-BL-1	Vertical slit aperture	8.2 x 32.1 x 6.1 mm	Width 0.5 mm	Snap-on

Common to all listed parts

Lifecycle	Active
Product group	Optics: Apertures, lenses, deflectors
