Home / I/O / I/O service products (discontinued)

I/O service products (discontinued) Parts

Beckhoff

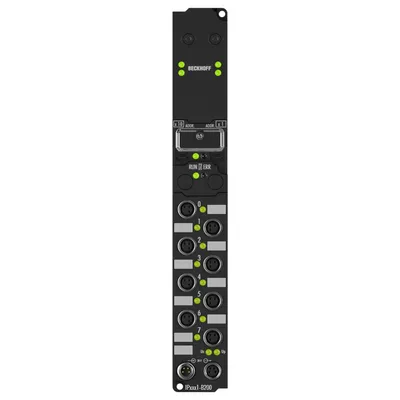

IP2041-B200

Fieldbus Box, 8-channel digital output, Lightbus, 24 V DC, 2 A (∑ 12 A), M8

Beckhoff

IP2041-B400

Fieldbus Box, 8-channel digital output, Interbus, 24 V DC, 2 A (∑ 12 A), M8

Beckhoff

IP2041-B730

Fieldbus Box, 8-channel digital output, Modbus, 24 V DC, 2 A (∑ 12 A), M8

Beckhoff

IP2041-B800

Fieldbus Box, 8-channel digital output, RS485, 24 V DC, 2 A (∑ 12 A), M8

Beckhoff

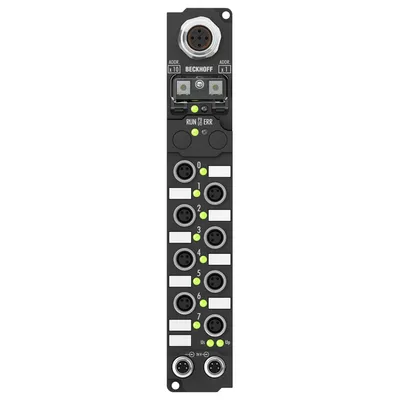

IP2041-B810

Fieldbus Box, 8-channel digital output, RS232, 24 V DC, 2 A (∑ 12 A), M8

Beckhoff

IP2042-B200

Fieldbus Box, 8-channel digital output, Lightbus, 24 V DC, 2 A (∑ 12 A), M12

Beckhoff

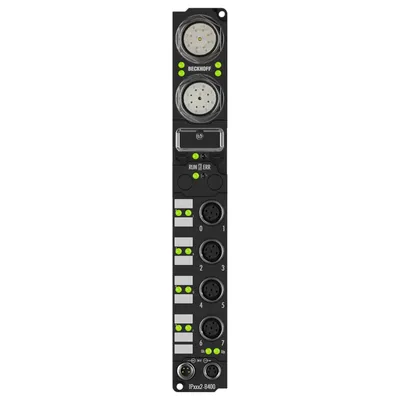

IP2042-B400

Fieldbus Box, 8-channel digital output, Interbus, 24 V DC, 2 A (∑ 12 A), M12

Beckhoff

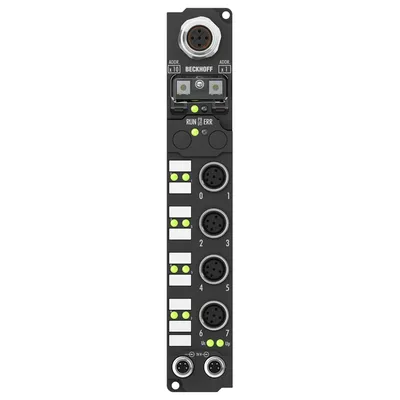

IP2042-B730

Fieldbus Box, 8-channel digital output, Modbus, 24 V DC, 2 A (∑ 12 A), M12

Beckhoff

IP2042-B800

Fieldbus Box, 8-channel digital output, RS485, 24 V DC, 2 A (∑ 12 A), M12

Beckhoff

IP2042-B810

Fieldbus Box, 8-channel digital output, RS232, 24 V DC, 2 A (∑ 12 A), M12

Beckhoff

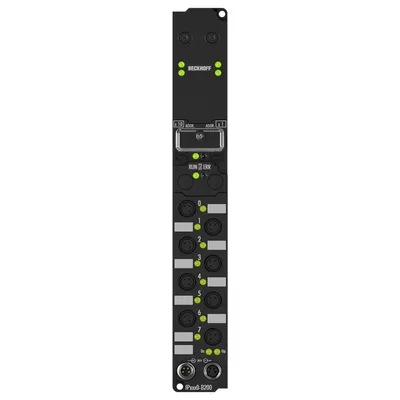

IP2300-B200

Fieldbus Box, 4-channel digital input + 4-channel digital output, Lightbus, 24 V DC, 3 ms, 0.5 A, Ø8

Beckhoff

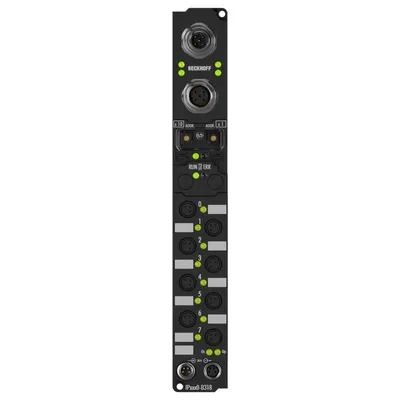

IP2300-B310

Fieldbus Box, 4-channel digital input + 4-channel digital output, PROFIBUS, 24 V DC, 3 ms, 0.5 A, Ø8

Beckhoff

IP2300-B318

Fieldbus Box, 4-channel digital input + 4-channel digital output, PROFIBUS, 24 V DC, 3 ms, 0.5 A, Ø8, integrated T-connector

Beckhoff

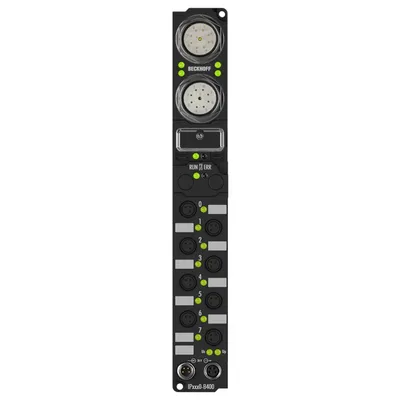

IP2300-B400

Fieldbus Box, 4-channel digital input + 4-channel digital output, Interbus, 24 V DC, 3 ms, 0.5 A, Ø8

Beckhoff

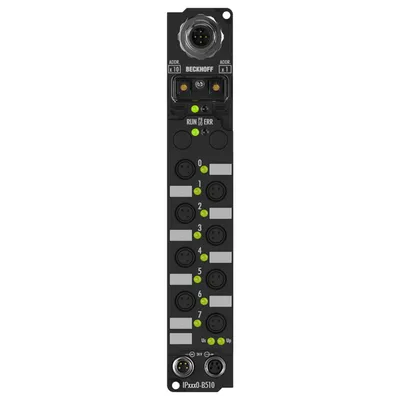

IP2300-B510

Fieldbus Box, 4-channel digital input + 4-channel digital output, CANopen, 24 V DC, 3 ms, 0.5 A, Ø8

Beckhoff

IP2300-B518

Fieldbus Box, 4-channel digital input + 4-channel digital output, CANopen, 24 V DC, 3 ms, 0.5 A, Ø8, integrated T-connector

Beckhoff

IP2300-B520

Fieldbus Box, 4-channel digital input + 4-channel digital output, DeviceNet®, 24 V DC, 3 ms, 0.5 A, Ø8

Beckhoff

IP2300-B528

Fieldbus Box, 4-channel digital input + 4-channel digital output, DeviceNet®, 24 V DC, 3 ms, 0.5 A, Ø8, integrated T-connector

Beckhoff

IP2300-B730

Fieldbus Box, 4-channel digital input + 4-channel digital output, Modbus, 24 V DC, 3 ms, 0.5 A, Ø8

Beckhoff

IP2300-B800

Fieldbus Box, 4-channel digital input + 4-channel digital output, RS485, 24 V DC, 3 ms, 0.5 A, Ø8

Beckhoff

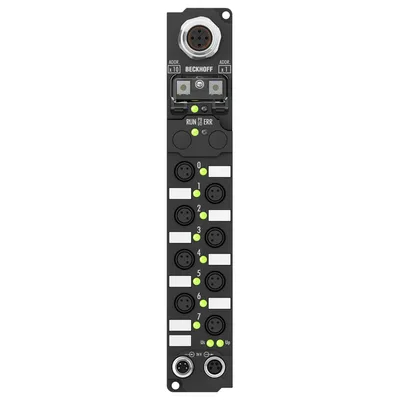

IP2300-B810

Fieldbus Box, 4-channel digital input + 4-channel digital output, RS232, 24 V DC, 3 ms, 0.5 A, Ø8

Beckhoff

IP2301-B200

Fieldbus Box, 4-channel digital input + 4-channel digital output, Lightbus, 24 V DC, 3 ms, 0.5 A, M8

Beckhoff

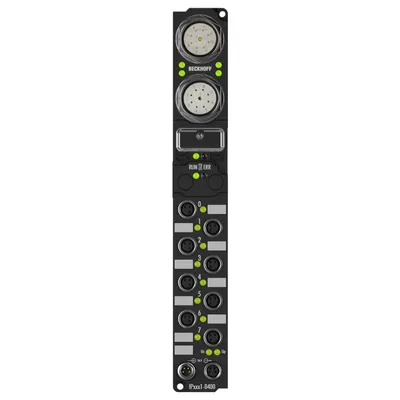

IP2301-B400

Fieldbus Box, 4-channel digital input + 4-channel digital output, Interbus, 24 V DC, 3 ms, 0.5 A, M8

Beckhoff

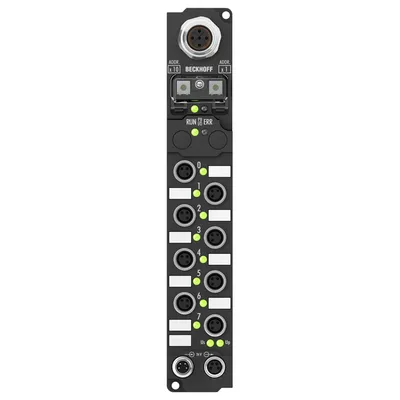

IP2301-B730

Fieldbus Box, 4-channel digital input + 4-channel digital output, Modbus, 24 V DC, 3 ms, 0.5 A, M8

Compare I/O service products (discontinued)

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Short-circuit current	Auxiliary power current	Bit width in the process image	Weight
IP2041-B200	typ. 4 A	typ. 50 mA per channel	8 outputs	approx. 250 g
IP2041-B400	typ. 4 A	typ. 50 mA per channel	8 outputs	approx. 350 g
IP2041-B730	typ. 4 A	typ. 50 mA per channel	8 outputs	approx. 210 g
IP2041-B800	typ. 4 A	typ. 50 mA per channel	8 outputs	approx. 210 g
IP2041-B810	typ. 4 A	typ. 50 mA per channel	8 outputs	approx. 210 g
IP2042-B200	typ. 4 A	typ. 50 mA per channel	8 outputs	approx. 250 g
IP2042-B400	typ. 4 A	typ. 50 mA per channel	8 outputs	approx. 350 g
IP2042-B730	typ. 4 A	typ. 50 mA per channel	8 outputs	approx. 210 g
IP2042-B800	typ. 4 A	typ. 50 mA per channel	8 outputs	approx. 210 g
IP2042-B810	typ. 4 A	typ. 50 mA per channel	8 outputs	approx. 210 g
IP2300-B200	typ. 1.5 A	typ. 20 mA per channel	4 inputs + 4 outputs	approx. 250 g
IP2300-B310	typ. 1.5 A	typ. 20 mA per channel	4 inputs + 4 outputs	—
IP2300-B318	typ. 1.5 A	typ. 20 mA per channel	4 inputs + 4 outputs	—
IP2300-B400	typ. 1.5 A	typ. 20 mA per channel	4 inputs + 4 outputs	approx. 350 g
IP2300-B510	typ. 1.5 A	typ. 20 mA per channel	4 inputs + 4 outputs	—
IP2300-B518	typ. 1.5 A	typ. 20 mA per channel	4 inputs + 4 outputs	—
IP2300-B520	typ. 1.5 A	typ. 20 mA per channel	4 inputs + 4 outputs	—
IP2300-B528	typ. 1.5 A	typ. 20 mA per channel	4 inputs + 4 outputs	—
IP2300-B730	typ. 1.5 A	typ. 20 mA per channel	4 inputs + 4 outputs	approx. 210 g
IP2300-B800	typ. 1.5 A	typ. 20 mA per channel	4 inputs + 4 outputs	approx. 210 g
IP2300-B810	typ. 1.5 A	typ. 20 mA per channel	4 inputs + 4 outputs	approx. 210 g
IP2301-B200	typ. 1.5 A	typ. 20 mA per channel	4 inputs + 4 outputs	approx. 250 g
IP2301-B400	typ. 1.5 A	typ. 20 mA per channel	4 inputs + 4 outputs	approx. 350 g
IP2301-B730	typ. 1.5 A	typ. 20 mA per channel	4 inputs + 4 outputs	approx. 210 g

Common to all listed parts

Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Load type	ohmic, inductive, lamp load
Current consumption from U S (without sensor current)	see documentation
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
