I/O service products (discontinued) Parts
Beckhoff

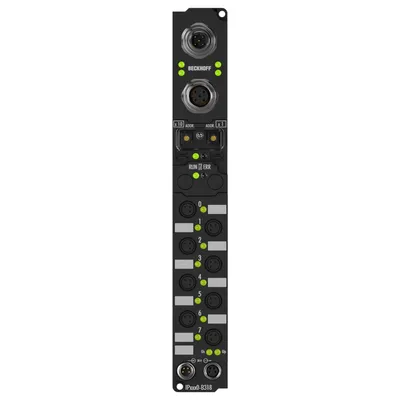

IP2000-B318Fieldbus Box, 8-channel digital output, PROFIBUS, 24 V DC, 0.5 A, Ø8, integrated T-connector
Compare I/O service products (discontinued)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Input connections | Auxiliary power current | Weight |
|---|---|---|---|
| IP1011-B200 | M8, screw type | according to I/O type | approx. 250 g |
| IP1011-B400 | M8, screw type | according to I/O type | approx. 350 g |
| IP1011-B730 | M8, screw type | according to I/O type | approx. 210 g |
| IP1011-B800 | M8, screw type | according to I/O type | approx. 210 g |

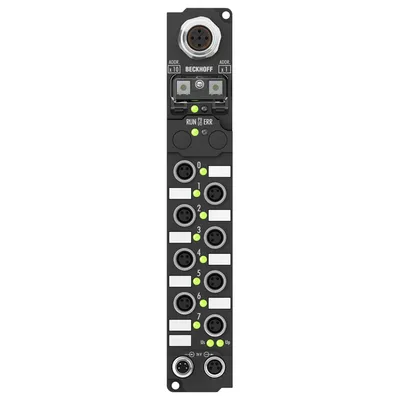

| IP1011-B810 | M8, screw type | according to I/O type | approx. 210 g |

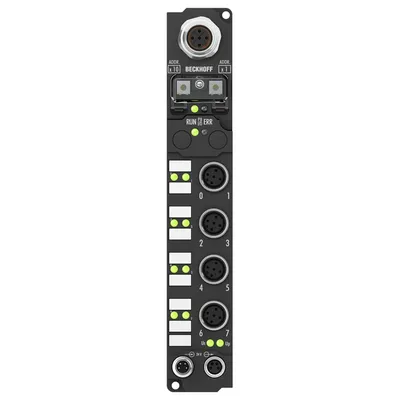

| IP1012-B200 | M12, screw type | according to I/O type | approx. 250 g |

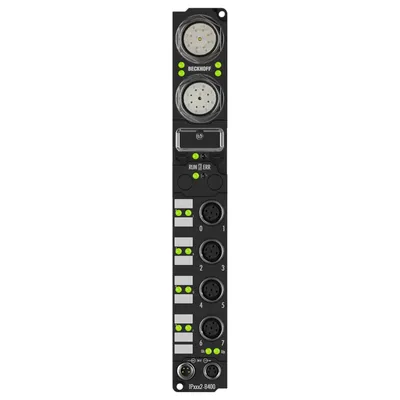

| IP1012-B400 | M12, screw type | according to I/O type | approx. 350 g |
| IP1012-B730 | M12, screw type | according to I/O type | approx. 210 g |
| IP1012-B800 | M12, screw type | according to I/O type | approx. 210 g |
| IP1012-B810 | M12, screw type | according to I/O type | approx. 210 g |

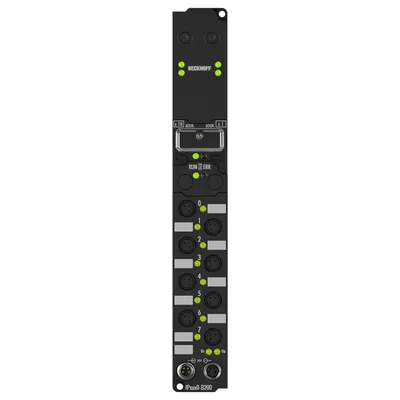

| IP2000-B200 | — | typ. 20 mA per channel | approx. 250 g |
| IP2000-B310 | — | typ. 20 mA per channel | — |
| IP2000-B318 | — | typ. 20 mA per channel | — |

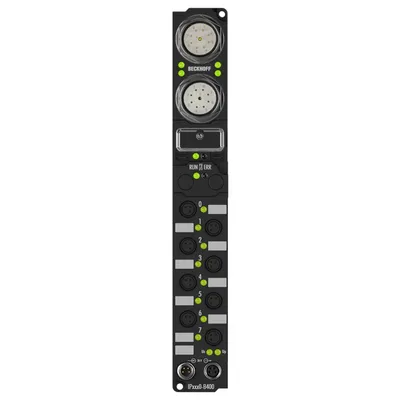

| IP2000-B400 | — | typ. 20 mA per channel | approx. 350 g |

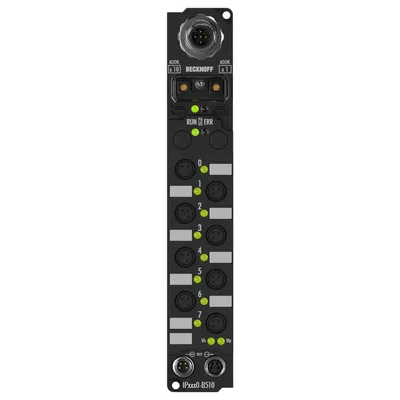

| IP2000-B510 | — | typ. 20 mA per channel | — |
Common to all listed parts
| Lifecycle | Service phase (discontinued, no longer in Beckhoff's product range) |
| Bit width in the process image | 8 inputs |
| Current consumption from U S (without sensor current) | see documentation |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
