Schneider Electric
NSYDPLA4Set of 4 step slides with brackets for adjustment of mount. plate in PLA D420mm
PanelSeT PLA Parts
Schneider Electric

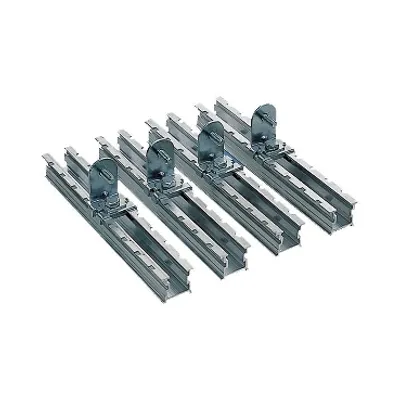

NSYDPLA3Set of 4 step slides with brackets for adjustment of mount. plate in PLA D320mm
Schneider Electric
NSYPTZ6Adaptor plates for vers.PLAZorZT D620mm 1 door mounting NSYPAPL/DPLA/DLP/BRF/BRP
Schneider Electric
NSYDPLA6Set of 4 step slides with brackets for adjustment of mount. plate in PLA D620mm
Compare PanelSeT PLA
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product or component type | Range compatibility | Mounting location | Height | Width |
|---|---|---|---|---|---|
| NSYDPLA4 | Step slide | PanelSeT PLA, PanelSeT PHD | Sides of enclosure | — | — |
| NSYDPLA3 | Step slide | PanelSeT PLA, PanelSeT PHD | Sides of enclosure | — | — |
| NSYPTZ6 | Adapter plate | PanelSeT PLA, PanelSeT PHD | Enclosure bottom | 80 mm | 15 mm |
| NSYDPLA6 | Step slide | PanelSeT PLA, PanelSeT PHD | Sides of enclosure | — | — |
| NSYPMR77 | Mounting plate | PanelSeT PLA, PanelSeT PHD | Back inserts, Step slide | Nominal: 750 mm, Real: 620 mm | Nominal: 750 mm, Real: 626 mm |
| NSYPMR75 | Mounting plate | PanelSeT PLA, PanelSeT PHD | Step slide, Back inserts | Nominal: 750 mm, Real: 620 mm | Nominal: 500 mm, Real: 376 mm |
| NSYPMR57 | Mounting plate | PanelSeT PLA | Back inserts, Step slide | Nominal: 500 mm, Real: 370 mm | Nominal: 750 mm, Real: 626 mm |
| NSYPMR55 | Mounting plate | PanelSeT PLA, PanelSeT PHD | Back inserts, Step slide | Nominal: 500 mm, Real: 370 mm | Nominal: 500 mm, Real: 376 mm |
| NSYPMR157 | Mounting plate | PanelSeT PLA, PanelSeT PHD | Step slide, Back inserts | Nominal: 1500 mm, Real: 1370 mm | Nominal: 750 mm, Real: 626 mm |
| NSYPMR155 | Mounting plate | PanelSeT PLA, PanelSeT PHD | Step slide, Back inserts | Nominal: 1500 mm, Real: 1370 mm | Nominal: 500 mm, Real: 376 mm |
| NSYPMR127 | Mounting plate | PanelSeT PLA, PanelSeT PHD | Back inserts, Step slide | Nominal: 1250 mm, Real: 1120 mm | Nominal: 750 mm, Real: 626 mm |
| NSYPMR125 | Mounting plate | PanelSeT PLA, PanelSeT PHD | Step slide, Back inserts | Nominal: 1250 mm, Real: 1120 mm | Nominal: 500 mm, Real: 376 mm |
| NSYPMR107 | Mounting plate | PanelSeT PLA, PanelSeT PHD | Step slide, Back inserts | Nominal: 1000 mm, Real: 870 mm | Nominal: 750 mm, Real: 626 mm |
| NSYPMR105 | Mounting plate | PanelSeT PLA, PanelSeT PHD | Back inserts, Step slide | Nominal: 1000 mm, Real: 870 mm | Nominal: 500 mm, Real: 376 mm |
| NSYPMM77 | Mounting plate | PanelSeT PLA, PanelSeT PHD | Back inserts, Step slide | Nominal: 750 mm, Real: 640 mm | Nominal: 750 mm, Real: 625 mm |
| NSYPMM75 | Mounting plate | PanelSeT PLA, PanelSeT PHD | Back inserts, Step slide | Nominal: 750 mm, Real: 640 mm | Nominal: 500 mm, Real: 375 mm |
| NSYPMM712 | Mounting plate | PanelSeT PLA | Step slide, Back inserts | Nominal: 750 mm, Real: 640 mm | Nominal: 1250 mm, Real: 1125 mm |
| NSYPMM710 | Mounting plate | PanelSeT PLA | Back inserts, Step slide | Nominal: 750 mm, Real: 640 mm | Nominal: 1000 mm, Real: 875 mm |
| NSYPMM55 | Mounting plate | PanelSeT PLA, PanelSeT PHD | Back inserts, Step slide | Nominal: 500 mm, Real: 390 mm | Nominal: 500 mm, Real: 375 mm |
| NSYPMM510 | Mounting plate | PanelSeT PLA | Step slide, Back inserts | Nominal: 500 mm, Real: 390 mm | Nominal: 1000 mm, Real: 875 mm |

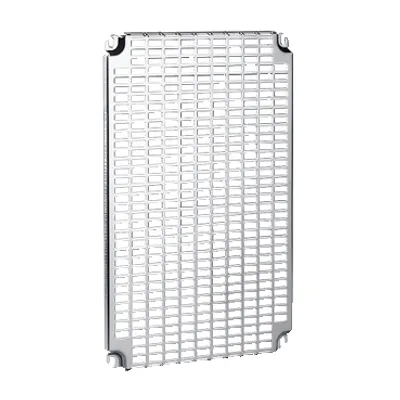

| NSYPMM157 | Mounting plate | PanelSeT PLA, PanelSeT PHD | Step slide, Back inserts | Nominal: 1500 mm, Real: 1390 mm | Nominal: 750 mm, Real: 625 mm |
| NSYPMM155 | Mounting plate | PanelSeT PLA | Step slide, Back inserts | Nominal: 1500 mm, Real: 1390 mm | Nominal: 500 mm, Real: 375 mm |
| NSYPMM1512 | Mounting plate | PanelSeT PLA, PanelSeT PHD | Back inserts, Step slide | Nominal: 1500 mm, Real: 1390 mm | Nominal: 1250 mm, Real: 1125 mm |
| NSYPMM1510 | Mounting plate | PanelSeT PLA | Step slide, Back inserts | Nominal: 1500 mm, Real: 1390 mm | Nominal: 1000 mm, Real: 875 mm |
