LV NEMA Combination Starters Parts
Compare LV NEMA Combination Starters
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Circuit closing inrush current peak including offset, max | Heat dissipation | Load voltage | NEMA size | Operating volt amperes burden |
|---|---|---|---|---|---|
| 513-EFB-A2M-22-50-412-901-VH | 1581 A | 14.8 W (2...3 poles) | 460V | Size 4 | Sealed: 69VA, 60 Hz coils (2...3 poles) |
| 513-CUBD-3-44 | — | — | — | — | — |
| 513-CUC-A2G-6GP-42 | 483 A | 5.9 W (2...3 poles) | 575V | Size 2 | Sealed: 29VA, 60 Hz coils (2...3 poles) |
| 512-DFB-A2L-26R-VH | 947 A | 10 W (2...3 poles) | 460V | Size 3 | Sealed: 45VA, 60 Hz coils (2...3 poles) |
| 512-DFCD-4G-26J | 947 A | 10 W (2...3 poles) | 575V | Size 3 | Sealed: 45VA, 60 Hz coils (2...3 poles) |
| 512-DFAD-A2L-26R | 947 A | 10 W (2...3 poles) | 230V | Size 3 | Sealed: 45VA, 60 Hz coils (2...3 poles) |
| 512-DFH-3-4R-6P-26R | 947 A | 10 W (2...3 poles) | 200V | Size 3 | Sealed: 45VA, 60 Hz coils (2...3 poles) |
| 512-BFCD-1-4G-24R | 288 A | 5.9 W | 575V | Size 1 | Sealed: 29VA, 60 Hz coils |
| 513-CAB-1-6P-42 | — | — | — | — | — |

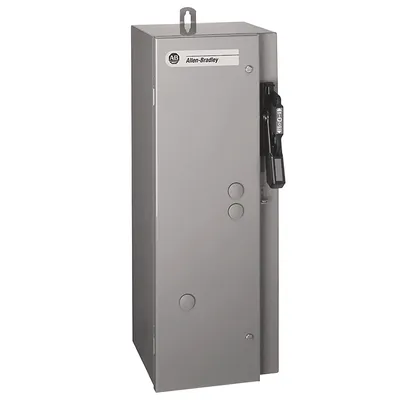

| 513-BFB-A2G-3-4R-6P-41 | 288 A | 5.9 W | 460V | Size 1 | Sealed: 29VA, 60 Hz coils |
| 513-BFB-6P-41-901-TB6 | — | — | — | — | — |
| 513-CUB-6P-44 | — | — | — | — | — |
| 513-CUB-1-44 | — | — | — | — | — |
| 513-CUBD-A2J-44 | 483 A | 5.9 W (2...3 poles) | 460V | Size 2 | Sealed: 29VA, 60 Hz coils (2...3 poles) |
| 513-CFB-A2J-6P-44-9018 | 483 A | 5.9 W (2...3 poles) | 460V | Size 2 | Sealed: 29VA, 60 Hz coils (2...3 poles) |
| 513-CUB-A2J-6XP-42-137-90011 | 483 A | 5.9 W (2...3 poles) | 460V | Size 2 | Sealed: 29VA, 60 Hz coils (2...3 poles) |
Common to all listed parts
| Lifecycle | Active |
| Repair options available | No |
