1585 On-Machine M12 Cables Parts
Compare 1585 On-Machine M12 Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Second Connector Type | Second Connector Orientation | Standard or Build-to-Order Cable Length | Cable Rating |
|---|---|---|---|---|
| 1585D-M4FBDM-40 | M12 | Straight Male | 40 Meters | PVC General Purpose |
| 1585D-M4FBDM-30 | M12 | Straight Male | 30 Meters | PVC General Purpose |
| 1585D-M4FBDM-23 | M12 | Straight Male | Build-to-Order Cable Length | PVC General Purpose |
| 1585D-M4FBDM-20 | M12 | Straight Male | 20 Meters | PVC General Purpose |
| 1585D-M4FBDM-15 | M12 | Straight Male | 15 Meters | PVC General Purpose |
| 1585D-M4FBDM-10 | M12 | Straight Male | 10 Meters | PVC General Purpose |
| 1585D-M4FBDM-0M3 | M12 | Straight Male | 0.3 Meters | PVC General Purpose |
| 1585D-M4HBJM-70 | RJ45 | Straight Male | Build-to-Order Cable Length | PVC General Purpose |

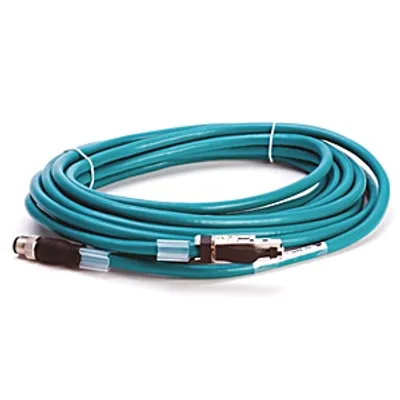

| 1585D-M4HBJM-55 | RJ45 | Straight Male | Build-to-Order Cable Length | PVC General Purpose |
| 1585D-M4HBJM-50 | RJ45 | Straight Male | Build-to-Order Cable Length | PVC General Purpose |
| 1585D-M4HBJM-40 | RJ45 | Straight Male | 40 Meters | PVC General Purpose |

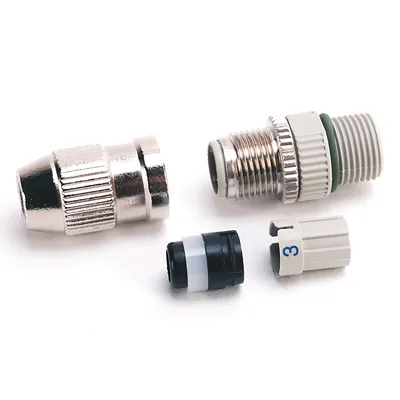

| 1585D-M4HBJM-32 | RJ45 | Straight Male | Build-to-Order Cable Length | PVC General Purpose |
| 1585D-M4TBDF-16 | M12 | Straight Female | Build-to-Order Cable Length | 4 Conductor, Teal TPE, Flex Rated |

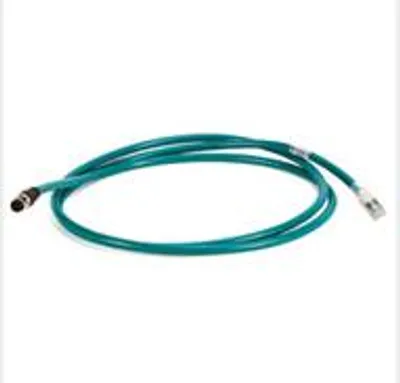

| 1585D-M4TBDF-12 | M12 | Straight Female | Build-to-Order Cable Length | 4 Conductor, Teal TPE, Flex Rated |

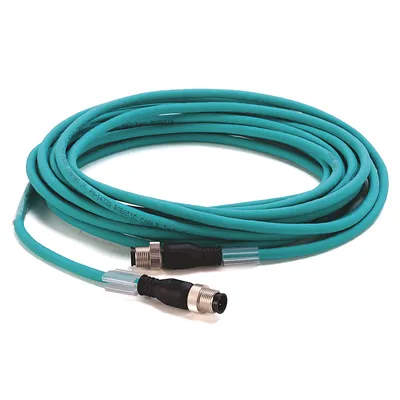

| 1585D-M4TBDF-0M3 | M12 | Straight Female | 0.3 Meters | 4 Conductor, Teal TPE, Flex Rated |
| 1585D-M4TBDF-0M15 | M12 | Straight Female | — | 4 Conductor, Teal TPE, Flex Rated |
| 1585D-M4TBDE-60 | M12 | Right Angle Male | Build-to-Order Cable Length | 4 Conductor, Teal TPE, Flex Rated |
| 1585D-M4TBDE-55 | M12 | Right Angle Male | Build-to-Order Cable Length | 4 Conductor, Teal TPE, Flex Rated |

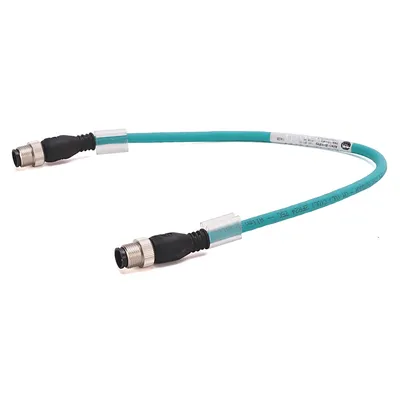

| 1585D-M4TBDE-5 | M12 | Right Angle Male | 5 Meters | 4 Conductor, Teal TPE, Flex Rated |

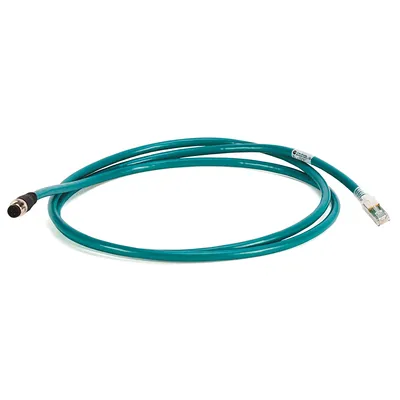

| 1585D-M4HBJM-22 | RJ45 | Straight Male | Build-to-Order Cable Length | PVC General Purpose |
| 1585D-M4HBJM-16 | RJ45 | Straight Male | Build-to-Order Cable Length | PVC General Purpose |

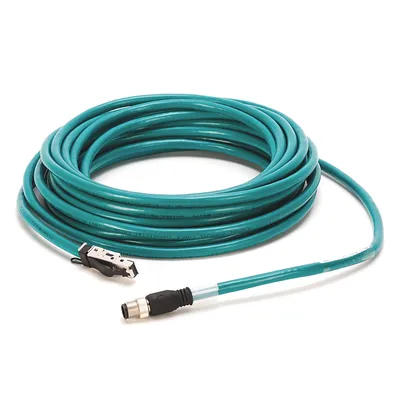

| 1585D-M4HBJM-14 | RJ45 | Straight Male | Build-to-Order Cable Length | PVC General Purpose |
| 1585D-M4HBJM-13 | RJ45 | Straight Male | Build-to-Order Cable Length | PVC General Purpose |
Common to all listed parts
| First Connector Type | M12 D-Code |
| First Connector Orientation | Straight Male |
| Number of Conductors | 4 Conductors |
| Cable Bandwidth | 100BASE-TX, 100 Mbit/s |
| Connector Feature | Standard |
| Crossover | No |
| First Connector Pinout: | Pinout: |
| Second Connector Pinout: | Pinout: |
